Removal [09/2014 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [09/2014 - 11/2017] , or refer to PRECAUTION [11/2017 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [09/2014 - 08/2016] , or refer to INITIALIZATION [08/2016 - 11/2017] , or refer to INITIALIZATION [11/2017 - 03/2019] , or refer to INITIALIZATION [03/2019 - 01/2023] , or refer to INITIALIZATION [01/2023 - 10/2023] , or refer to INITIALIZATION [10/2023 - ]

  3. REMOVE FRONT DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 3 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 3 [11/2017 - ]

  4. REMOVE REAR SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 1

  5. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 2

  6. DISCONNECT REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY

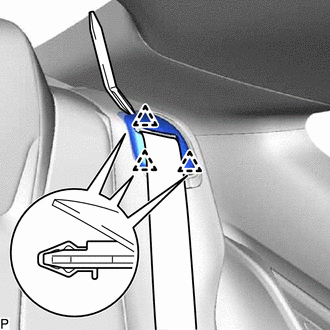

    1. Using a moulding remover, disengage the 3 clips to disconnect the belt guide unit of the rear seat 3 point type outer belt assembly.
      GTY509682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

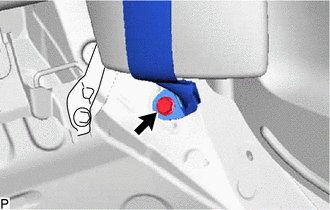

    2. Remove the bolt and disconnect the floor anchor of the rear seat 3 point type outer belt assembly.
      GTY509666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE REAR SIDE SEATBACK ASSEMBLY

    Refer to PROCEDURE - Step 4

  8. REMOVE REAR SEATBACK ASSEMBLY

    Refer to PROCEDURE - Step 7

  9. REMOVE LAP BELT OUTER ANCHOR COVER

    See step  6

  10. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY

    See step  7

  11. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY

    Refer to PROCEDURE - Step 15 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 15 [11/2017 - ]

  12. REMOVE INNER ROOF SIDE GARNISH ASSEMBLY

    Refer to PROCEDURE - Step 17 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 17 [11/2017 - ]

  13. REMOVE REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY
    1. for LH Side:
      1. Using a screwdriver, pull out the locking button as shown in the illustration to release the lock and disconnect the pretensioner connector.
        GTY514009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Protective Tape
        *b Locking Button
        *c Release

        HINT:

        Tape the screwdriver tip before use.

    2. for RH Side:

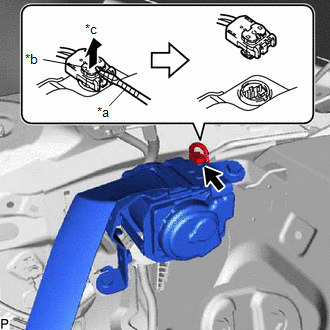

      1. Using a screwdriver, pull out the locking button as shown in the illustration to release the lock and disconnect the pretensioner connector.

        HINT:

        Tape the screwdriver tip before use.

        GTY519391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Protective Tape
        *b Locking Button
        *c Release
    3. Remove the 2 bolts.
      GTY509679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the guide to remove the rear seat 3 point type outer belt assembly.
  14. REMOVE REAR SEAT OUTER BELT ANCHOR BRACKET ASSEMBLY

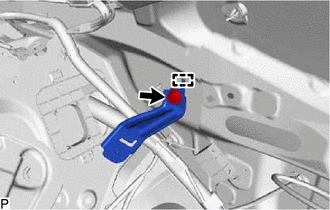

    1. Remove the bolt.
      GTY509681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide to remove the rear seat outer belt anchor bracket assembly.
