Removal [09/2014 - 10/2015]: Procedure

  1. REMOVE MAP LIGHT ASSEMBLY

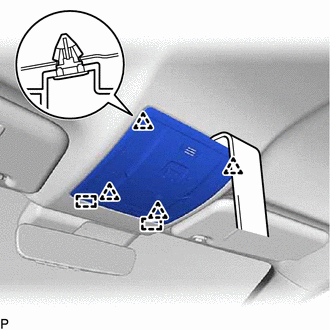

    1. Using a moulding remover, disengage the 4 clips and 2 guides.
      GTY513928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the 2 connectors to remove the map light assembly.
  2. REMOVE TELEPHONE MICROPHONE ASSEMBLY

    Refer to PROCEDURE - Step 2
