Removal [09/2014 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [09/2014 - 11/2017] , or refer to PRECAUTION [11/2017 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [09/2014 - 08/2016] , or refer to INITIALIZATION [08/2016 - 11/2017] , or refer to INITIALIZATION [11/2017 - 03/2019] , or refer to INITIALIZATION [03/2019 - 01/2023] , or refer to INITIALIZATION [01/2023 - 10/2023] , or refer to INITIALIZATION [10/2023 - ]

  3. REMOVE FRONT DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 3 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 3 [11/2017 - ]

  4. REMOVE REAR SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 1

  5. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 2

  6. REMOVE LAP BELT OUTER ANCHOR COVER
    1. Disengage the 2 claws.
      GTY499119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide to remove the lap belt outer anchor cover.
  7. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY

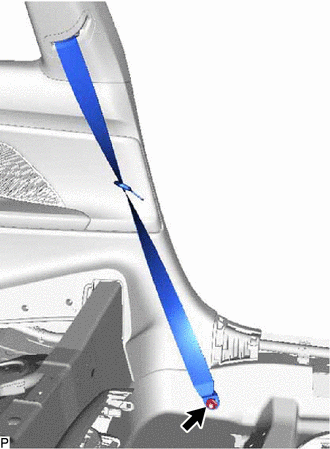

    GTY499340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the nut and disconnect the floor anchor of the front seat outer belt assembly.
  8. DISCONNECT REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY

    See step  6

  9. REMOVE REAR SIDE SEATBACK ASSEMBLY

    Refer to PROCEDURE - Step 4

  10. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY

    Refer to PROCEDURE - Step 15 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 15 [11/2017 - ]

  11. REMOVE CENTER PILLAR GARNISH ASSEMBLY

    Refer to PROCEDURE - Step 16 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 16 [11/2017 - ]

  12. REMOVE FRONT SEAT OUTER BELT ASSEMBLY

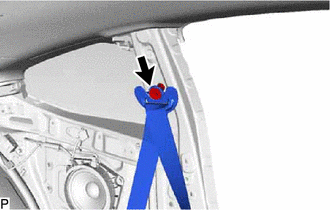

    GTY499339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the bolt and disconnect the shoulder anchor of the front seat outer belt assembly.
    2. Using a screwdriver, pull out the locking button as shown in the illustration to release the lock and disconnect the pretensioner connector.

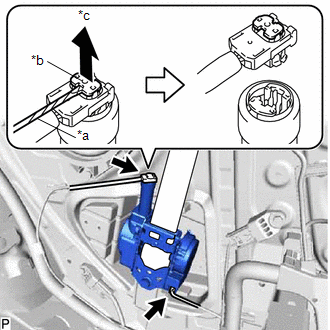

      GTY518718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      *b Locking Button
      *c Release

      HINT:

      Tape the screwdriver tip before use.

    3. Disconnect the connector.
    4. Remove the 2 bolts and front seat outer belt assembly.
      GTY499335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE OUTER BELT ANCHOR BRACKET SUB-ASSEMBLY
    1. Remove the clip.

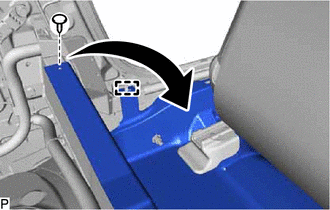

      GTY520885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide.
    3. Turn back the floor carpet as shown in the illustration.
    4. Remove the bolt.

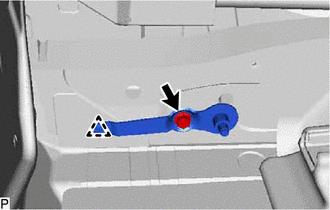

      GTY512891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disengage the clip to remove the outer belt anchor bracket sub-assembly.
