Disassembly [07/2020 - ]: Procedure

  1. REMOVE ANTENNA CORD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 6 [10/2022 - 05/2023] , or refer to PROCEDURE - Step 6 [05/2023 - ]

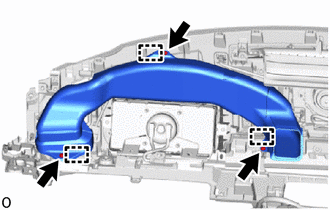

  2. REMOVE NO. 3 HEATER TO REGISTER DUCT
    1. GTY949438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw <E> or <G>

      Remove the 3 screws <E> or <G>.

    2. Detach the guide and remove the No. 3 heater to register duct.
  3. REMOVE NAVIGATION ANTENNA ASSEMBLY WITH BRACKET

    Refer to PROCEDURE - Step 4 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 4 [10/2022 - 05/2023] , or refer to PROCEDURE - Step 4 [05/2023 - ]

  4. REMOVE INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 5 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 5 [05/2023 - ]

  5. REMOVE AUTOMATIC LIGHT CONTROL SENSOR

    Refer to PROCEDURE - Step 4 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 4 [05/2023 - ]

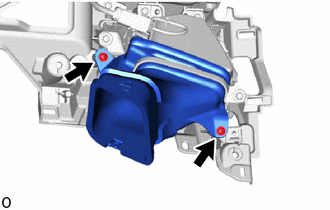

  6. REMOVE NO. 1 HEATER TO REGISTER DUCT
    1. GTY949430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw <E> or <G>

      Remove the 2 screws <E> or <G> and No. 1 heater to register duct.

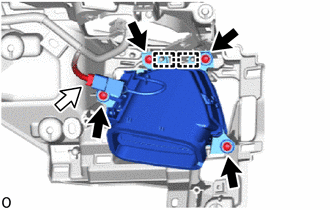

  7. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Remove the 4 screws <G>.
      GTY949472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw <G>
      Connector
    2. Detach the guide and remove the No. 1 instrument panel register assembly.
    3. Disconnect the connector.

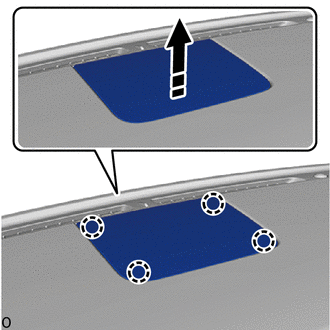

  8. REMOVE NO. 1 SPEAKER OPENING COVER ASSEMBLY
    1. Detach the claw and remove the No. 1 speaker opening cover assembly.
      GTY949357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

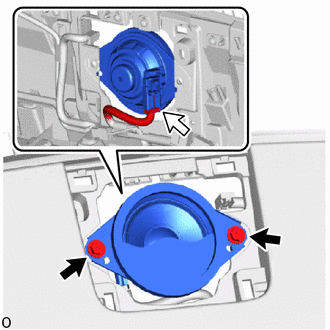

  9. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY
    1. GTY784807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw
      Connector

      Remove the 2 screws.

    2. Disconnect the connector and remove the front No. 2 speaker assembly.
      NOTE:

      Do not touch the cone part of the front No. 2 speaker assembly.

  10. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY MAIN
    1. Remove the screw.
      GTY825290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the claw and guide and remove the instrument panel sub-assembly main.
  11. REMOVE DEFROSTER NOZZLE ASSEMBLY

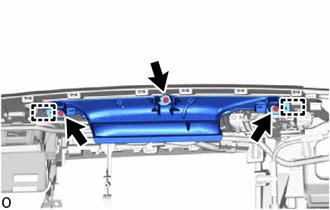

    1. GTY949420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw <E> or <G>

      Remove the 3 screws <E> or <G>.

    2. Detach the guide and remove the defroster nozzle assembly.

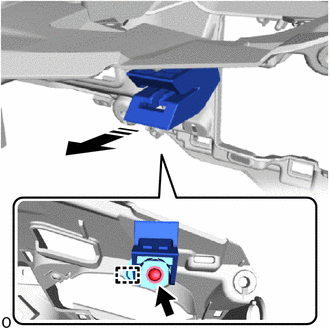

  12. REMOVE NO. 1 INSTRUMENT PANEL PIN
    1. Remove the screw.
      GTY775180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Detach the guide in the direction of the arrow shown in the illustration and remove the No. 1 instrument panel pin.

      HINT:

      Use the same procedure to remove the No. 1 instrument panel pin on the other side.

  13. REMOVE NO. 2 INSTRUMENT PANEL WIRE
    1. Detach the clamp and remove the No. 2 instrument panel wire.
      GTY838295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE UPPER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
    1. Remove the 21 screws.
      GTY951398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the claw and remove the upper instrument panel finish panel sub-assembly.

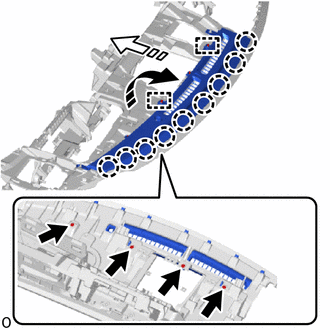

  15. REMOVE NO. 1 DEFROSTER NOZZLE GARNISH
    1. Remove the 4 screws.
      GTY838007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Detach the claw and guide in the direction of the arrow shown in the illustration and remove the No. 1 defroster nozzle garnish.

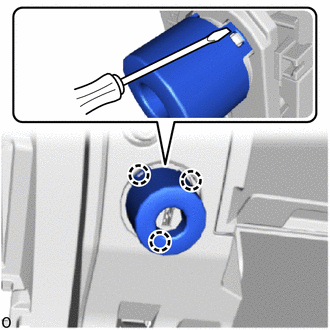

  16. REMOVE GLOVE COMPARTMENT DOOR LOCK COVER
    NOTE:

    Only perform this procedure when removing and installing the glove compartment door lock cylinder assembly. Furthermore, always replace the glove compartment door assembly with a new one when performing this procedure.

    1. GTY838106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Using a thin-bladed screwdriver, cut the claw and remove the glove compartment door lock cover.

  17. REMOVE GLOVE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY
    NOTE:

    Always replace the glove compartment door assembly with a new one when performing this procedure.

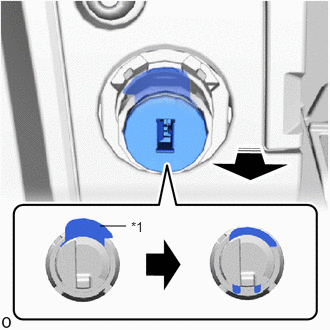

    1. GTY787539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Cylinder Lock
      Remove in this Direction

      Press the cylinder lock to release it and pull out the glove compartment door lock cylinder assembly from the glove compartment door assembly to remove it as shown in the illustration.
