Removal [05/2023 - ]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read Precaution thoroughly before servicing.

    GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to PRECAUTION [05/2023 - ]

    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [05/2023 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to REMOVAL [05/2023 - ]

    WARNING:
    GTY581108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
    • If the airbag deploys for any reason, it may cause a serious accident.
  3. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to REMOVAL [05/2023 - ]

  4. REMOVE NAVIGATION ANTENNA ASSEMBLY WITH BRACKET
    1. Detach the claw and disconnect the connector.
      GTY960966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws.
      GTY964247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Detach the guide and remove the navigation antenna assembly with bracket.
  5. REMOVE NAVIGATION ANTENNA ASSEMBLY

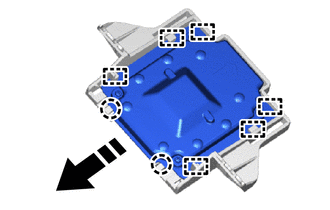

    1. Detach the claw.
      GTY962301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Detach the guide and remove the navigation antenna assembly in the direction of the arrow shown in the illustration.
  6. REMOVE NAVIGATION ANTENNA BRACKET
