Removal [05/2023 - ]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read Precaution thoroughly before servicing.

    GTY607029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to PRECAUTION [05/2023 - ]

    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [05/2023 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to REMOVAL [05/2023 - ]

    WARNING:
    • Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
    • If the airbag deploys for any reason, it may cause a serious accident.
    GTY581108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE INSTRUMENT PANEL ASSEMBLY

    Refer to REMOVAL [05/2023 - ]

  4. REMOVE AUTOMATIC LIGHT CONTROL SENSOR

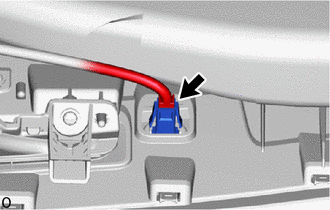

    1. Disconnect the connector.
      GTY818005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

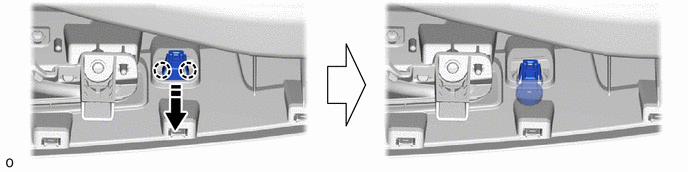

    2. Detach the claw to remove the automatic light control sensor.
      GTY796091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
