Disassembly [08/2021 - 07/2022]: Procedure

  1. REMOVE TONNEAU COVER ASSEMBLY

    Refer to PROCEDURE - Step 3

  2. REMOVE REAR WIPER ARM HEAD CAP

    Refer to PROCEDURE - Step 2

  3. REMOVE REAR WIPER ARM AND BLADE ASSEMBLY

    Refer to PROCEDURE - Step 3

  4. REMOVE BACK DOOR TRIM UPPER PANEL ASSEMBLY
    1. Disengage the clips to remove the back door trim upper panel assembly.
      GTY834399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE ROPE HOOK

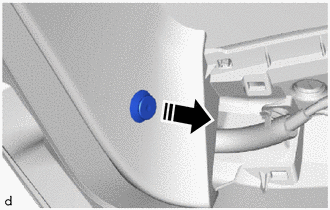

    1. Remove the rope hook as shown in the illustration.
      GTY826670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

      HINT:

      Use the same procedure for the opposite side.

  6. REMOVE BACK DOOR TRIM BASE (w/ Power Back Door)

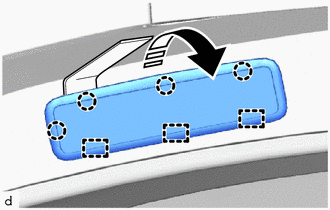

    1. Using a moulding remover D, disengage the claws and guides to remove the back door trim base as shown in the illustration.
      GTY788130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  7. REMOVE DOOR PULL HANDLE (w/ Power Back Door)

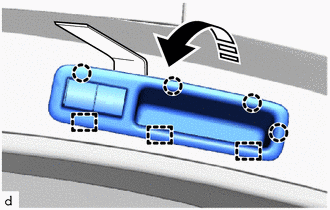

    1. Using a moulding remover D, disengage the claws and guides to remove the door pull handle as shown in the illustration.
      GTY816358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disconnect the connectors.
  8. REMOVE DOOR CONTROL SWITCH (w/ Power Back Door)

    See step  2

  9. REMOVE BACK DOOR CONTROL SWITCH (w/ Power Back Door)

    See step  2

  10. REMOVE DOOR PULL HANDLE (w/o Power Back Door)

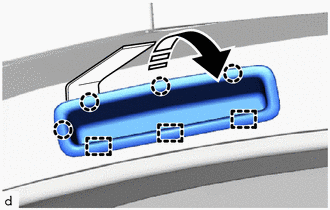

    1. Using a moulding remover D, disengage the claws and guides to remove the door pull handle as shown in the illustration.
      GTY832980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

      HINT:

      Use the same procedure for the opposite side.

  11. REMOVE BACK DOOR LOCK COVER
    1. Disengage the claws to remove the back door lock cover.
      GTY807646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE BACK DOOR TRIM BOARD ASSEMBLY

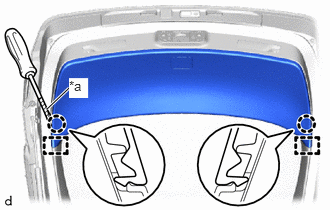

    1. Using a screwdriver with its tip wrapped in protective tape, remove the claws and guides.
      GTY834757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      NOTE:

      Removing the back door trim board assembly may cause damage, disengage the claws first.

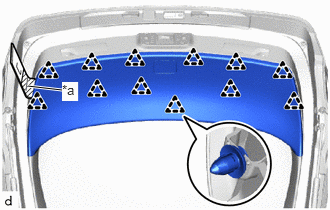

    2. Using a moulding remover D with its tip wrapped in protective tape, disengage the clips to remove the back door trim board assembly.
      GTY828223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
  13. REMOVE POWER BACK DOOR SENSOR ASSEMBLY LH (w/ Power Back Door)

    See step  2

  14. REMOVE POWER BACK DOOR SENSOR ASSEMBLY RH (w/ Power Back Door)

    HINT:

    Use the same procedure as for the LH side.

  15. REMOVE REAR SPOILER ASSEMBLY

    Refer to PROCEDURE - Step 2

  16. REMOVE REAR WASHER NOZZLE

    Refer to PROCEDURE - Step 2

  17. REMOVE REAR LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 2

  18. REMOVE SYMBOL EMBLEM

    Refer to PROCEDURE - Step 1

  19. REMOVE NO. 2 BACK DOOR NAME PLATE (for Gasoline Model)

    Refer to PROCEDURE - Step 2

  20. REMOVE NO. 2 BACK DOOR NAME PLATE (for HV Model)

    Refer to PROCEDURE - Step 2

  21. REMOVE BACK DOOR OUTSIDE HANDLE PLATE
    1. Remove the 2 bolts.
      GTY807645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clips to remove the back door outside handle plate.
  22. REMOVE BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH (w/ Power Back Door)

    Refer to PROCEDURE - Step 3

  23. REMOVE BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH (w/o Power Back Door)

    Refer to PROCEDURE - Step 4

  24. REMOVE BACK DOOR OPENER SWITCH ASSEMBLY

    See step  3

  25. REMOVE LICENSE PLATE LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 2

  26. REMOVE REAR TELEVISION CAMERA ASSEMBLY (w/ Rear View Monitor System)

    Refer to PROCEDURE - Step 3

  27. REMOVE MULTIPLEX NETWORK DOOR ECU (w/ Power Back Door)

    See step  2

  28. REMOVE REAR WIPER MOTOR ASSEMBLY

    Refer to PROCEDURE - Step 4

  29. REMOVE REAR WIPER MOTOR GROMMET

    Refer to PROCEDURE - Step 5

  30. REMOVE BACK DOOR WEIGHT
    1. Remove the 3 bolts.
      GTY807660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide to remove the back door weight.
  31. REMOVE BACK DOOR UPPER STOPPER CUSHION

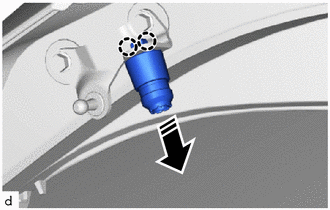

    1. Disengage the claws to remove the back door upper stopper cushion as shown in the illustration.
      GTY824303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

      HINT:

      Use the same procedure described for the opposite side.

  32. REMOVE BACK DOOR LOWER STOPPER CUSHION
    1. Remove the back door lower stopper cushion.

      HINT:

      Use the same procedure described for the opposite side.

      GTY807658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE NO. 1 AMPLIFIER ANTENNA ASSEMBLY

    Refer to PROCEDURE - Step 4

  34. REMOVE NO. 5 ANTENNA CORD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 12

  35. REMOVE NO. 2 BACK DOOR WIRE
    GTY788447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Guide
    1. Remove the bolt to disconnect the ground wire.
    2. Disengage the clamps and guide to disconnect the No. 2 back door wire.
  36. REMOVE WIRING HARNESS CLAMP BRACKET
    1. Remove the bolt.
      GTY793496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide to remove the wiring harness clamp bracket.
