Removal [10/2018 - ]: Procedure

  1. REMOVE BACK DOOR TRIM BOARD ASSEMBLY

    Refer to PROCEDURE - Step 12 [10/2018 - 08/2021] , or refer to PROCEDURE - Step 12 [08/2021 - 07/2022] , or refer to PROCEDURE - Step 12 [07/2022 - ]

  2. REMOVE REAR LIGHT ASSEMBLY

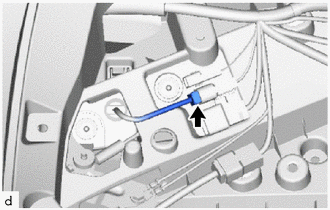

    1. Disconnect the connector.
      GTY816800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

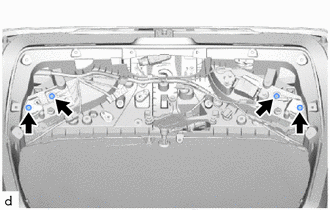

    2. Remove the 4 nuts.
      GTY816799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

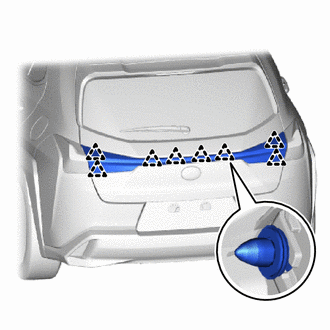

    3. Disengage the clips to remove the rear light assembly.
      GTY816798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
