Removal [10/2018 - ]: Procedure

  1. PRECAUTION

    Refer to PRECAUTION [10/2018 - 07/2022] , or refer to PRECAUTION [07/2022 - ]

  2. REMOVE BACK DOOR LOCK ASSEMBLY W/COURTESY LIGHT SWITCH

    Refer to REMOVAL [10/2018 - ]

  3. REMOVE REAR TELEVISION CAMERA ASSEMBLY

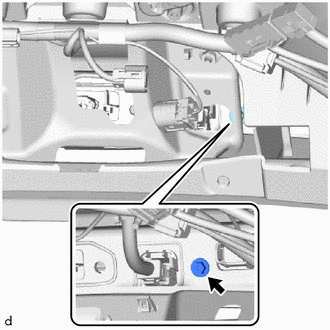

    1. Remove the bolt.
      GTY802983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

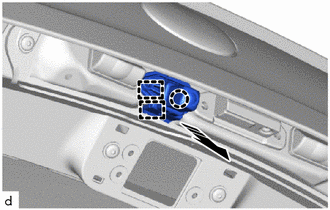

    2. Disengage the claw and guides to remove the rear television camera assembly as shown in the illustration.
      GTY826603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

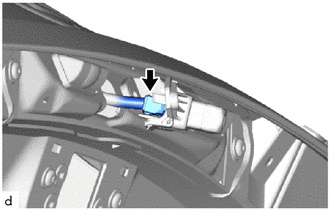

    3. Disconnect the connector.
      GTY802973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
