Removal [10/2018 - ]: Procedure

  1. REMOVE REAR SPOILER ASSEMBLY

    Refer to REMOVAL [10/2018 - ]

  2. REMOVE REAR WASHER NOZZLE

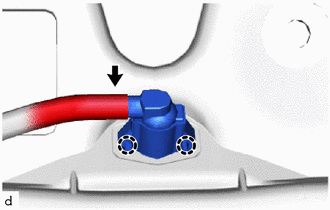

    1. Disconnect the rear washer hose.
      GTY777739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claws to remove the rear washer nozzle.
