Removal [10/2018 - ]: Procedure

  1. REMOVE BACK DOOR TRIM UPPER PANEL ASSEMBLY

    Refer to PROCEDURE - Step 4 [10/2018 - 08/2021] , or refer to PROCEDURE - Step 4 [08/2021 - 07/2022] , or refer to PROCEDURE - Step 4 [07/2022 - ]

  2. REMOVE REAR SPOILER ASSEMBLY

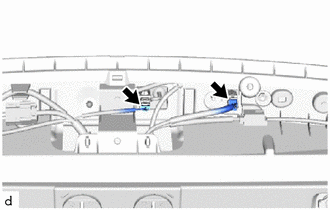

    1. Disconnect the 2 connectors.
      GTY812182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

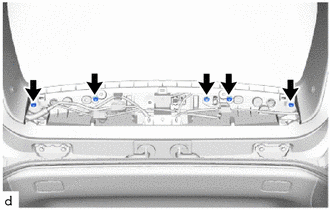

    2. Remove the 4 bolts.
      GTY835393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the nut.
    4. GTY824488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

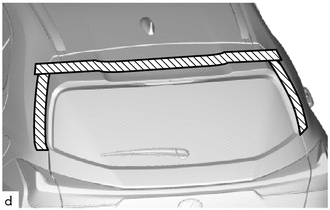

      Apply protective tape around the rear spoiler assembly.

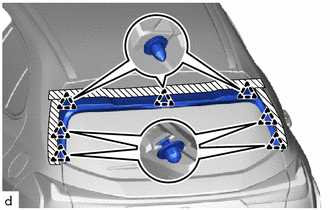

    5. Disengage the clips to remove the rear spoiler sub-assembly.
      GTY812181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
