Removal [10/2018 - ]: Procedure

  1. REMOVE BACK DOOR TRIM BOARD ASSEMBLY

    Refer to PROCEDURE - Step 12 [10/2018 - 08/2021] , or refer to PROCEDURE - Step 12 [08/2021 - 07/2022] , or refer to PROCEDURE - Step 12 [07/2022 - ]

  2. REMOVE BACK DOOR TRIM UPPER PANEL ASSEMBLY

    Refer to PROCEDURE - Step 4 [10/2018 - 08/2021] , or refer to PROCEDURE - Step 4 [08/2021 - 07/2022] , or refer to PROCEDURE - Step 4 [07/2022 - ]

  3. REMOVE RADIO ANTENNA SUB-ASSEMBLY (REAR SPOILER SUB-ASSEMBLY)

    Refer to PROCEDURE - Step 2

  4. REMOVE NO. 1 AMPLIFIER ANTENNA ASSEMBLY
    1. Disconnect the 2 connectors.

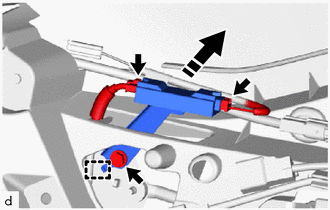

      GTY789587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Remove the bolt.
    3. Disengage the guide to remove the No. 1 amplifier antenna assembly as shown in the illustration.
