Removal [10/2017 - ]: Procedure

  1. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 13 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 13 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 13 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 13 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 13 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 13 [10/2023 - ]

  2. REMOVE INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 7 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 7 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 7 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 7 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 7 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 7 [10/2023 - ]

  3. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 8 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 8 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 8 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 8 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 8 [10/2023 - ]

  4. REMOVE COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 9 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 9 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 9 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 9 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 9 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 9 [10/2023 - ]

  5. REMOVE LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 14 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 14 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 14 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 14 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 14 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 14 [10/2023 - ]

  6. REMOVE INSTRUMENT SIDE PANEL RH

    Refer to PROCEDURE - Step 11 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 11 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 11 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 11 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 11 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 11 [10/2023 - ]

  7. REMOVE NO. 2 CONSOLE UPPER PANEL GARNISH

    Refer to PROCEDURE - Step 4 [10/2017 - 10/2020] , or refer to PROCEDURE - Step 4 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 4 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 4 [10/2023 - ]

  8. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 21 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 21 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 22 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 22 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 22 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 22 [10/2023 - ]

  9. REMOVE INSTRUMENT PANEL SAFETY PAD INSERT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 20 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 20 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 21 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 21 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 21 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 21 [10/2023 - ]

  10. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY

    Refer to PROCEDURE - Step 23 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 23 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 24 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 24 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 24 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 24 [10/2023 - ]

  11. REMOVE HAZARD WARNING SIGNAL SWITCH ASSEMBLY

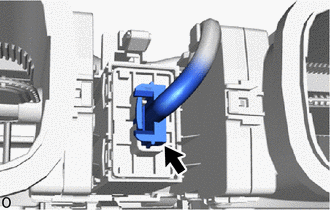

    1. Disconnect the connector.
      GTY791142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

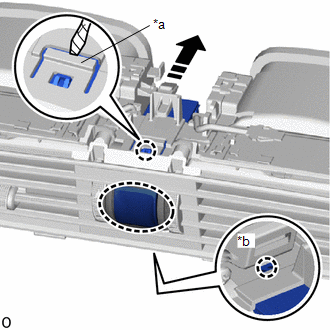

    2. Insert a thin-bladed screwdriver, into the cutout of the instrument cluster finish panel garnish assembly.

      HINT:

      Tape the thin-bladed screwdriver tip before use.

      GTY778728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Rib
      *b Lower Side Claw
      Protective Tape
      Push Here
      Remove in this Direction
    3. Slightly tilt the inserted screwdriver to raise the rib and detach the claw on the upper side.
    4. Press the area shown in the illustration to detach the claw on the lower side, and then remove the hazard warning signal switch assembly.
