Removal [10/2020 - 11/2021]: Procedure

REMOVE FRONT SEAT ASSEMBLY LH
Refer to REMOVAL [10/2020 - 11/2021]
REMOVE FRONT SEAT ASSEMBLY RH
HINT:

Use the same procedure described for the LH side.
REMOVE REAR SEAT CUSHION ASSEMBLY (for Fixed Seat Type)
Refer to PROCEDURE - Step 4
REMOVE NO. 1 SEAT ARMREST CAP (for Fixed Seat Type)
Refer to PROCEDURE - Step 5
REMOVE REAR SEATBACK ASSEMBLY (for Fixed Seat Type)
Refer to PROCEDURE - Step 6
REMOVE REAR SEAT CUSHION LOCK HOOK (for Fixed Seat Type)
Refer to PROCEDURE - Step 7
REMOVE REAR SEATBACK HOLDER (for Fixed Seat Type)
Refer to PROCEDURE - Step 8
REMOVE REAR SEAT CUSHION ASSEMBLY LH (for Power Seat)
Refer to PROCEDURE - Step 4
REMOVE REAR SEAT CUSHION ASSEMBLY RH (for Power Seat)
HINT:

Use the same procedure described for the LH side.
REMOVE REAR SEAT CUSHION LOCK HOOK (for Power Seat)
Refer to PROCEDURE - Step 7
REMOVE REAR SEATBACK ASSEMBLY LH (for Power Seat)
Refer to PROCEDURE - Step 8
REMOVE REAR SEATBACK ASSEMBLY RH (for Power Seat)
HINT:

Use the same procedure described for the LH side.

REMOVE FRONT DOOR SCUFF PLATE LH

Apply protective tape around the front door scuff plate LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Protective Tape

Place your hand at the position shown in the illustration and pull in the removal direction (1) to detach the claw.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place hand here
	Remove in this Direction (1)
	Remove in this Direction (2)

Lift in the removal direction (2) to detach the clamp and claw.

Place both hands at the position shown in the illustration and lift in the direction indicated by the arrow to detach the clamp and claw and remove the front door scuff plate LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place hands here
	Remove in this Direction

REMOVE FRONT DOOR SCUFF PLATE RH
HINT:

Use the same procedure described for the LH side.

REMOVE REAR DOOR SCUFF PLATE LH

Apply protective tape around the rear door scuff plate LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Protective Tape

Place your hand at the position shown in the illustration and pull in the removal direction (1) to detach the claw.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place hand here
	Remove in this Direction (1)
	Remove in this Direction (2)

Lift in the removal direction (2) to detach the clamp and claw.

Place both hands at the position shown in the illustration and lift in the direction indicated by the arrow to detach the clamp and claw and remove the rear door scuff plate LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place hands here
	Remove in this Direction

REMOVE REAR DOOR SCUFF PLATE RH
HINT:

Use the same procedure described for the LH side.

REMOVE FRONT PILLAR GARNISH LH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place hand here
	Remove in this Direction

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the front pillar garnish clip and slightly pull the upper part of the front pillar garnish LH away from the vehicle.

Push in the release lever with your fingers and detach the front pillar garnish clip from the vehicle.

NOTE:

If there is extreme damage to the front pillar garnish clip, replace it with a new one.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Release Lever
	Push

When the front pillar garnish clip cannot be detached by pressing the knobs with the fingers:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Direction (A)
	Push

Lift up the front pillar garnish clip in the direction (A) while pressing the portion indicated by the arrow in the illustration with your fingers.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Direction (B)
	Release Lever
	Push

Push in the portion indicated by the arrow in the illustration with the screwdriver end while pulling the front pillar garnish clip with your fingers in the direction (B) to detach the front pillar garnish clip.

NOTE:

If there is extreme damage to the front pillar garnish clip, replace it with a new one.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place hand here
	Remove in this Direction

Place your hand in the gap and pull in the direction indicated by the arrow to detach the front pillar garnish clip and lift the bottom part of the front pillar garnish LH.

Push in the release lever with your fingers and detach the front pillar garnish clip from the vehicle.

NOTE:

If there is extreme damage to the front pillar garnish clip, replace it with a new one.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Release Lever
	Push

When the front pillar garnish clip cannot be detached by pressing the knobs with the fingers:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Direction (A)
	Push

Lift up the front pillar garnish clip in the direction (A) while pressing the portion indicated by the arrow in the illustration with your fingers.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Direction (B)
	Release Lever
	Push

NOTE:

If there is extreme damage to the front pillar garnish clip, replace it with a new one.

Pull the front pillar garnish LH in the direction indicated by the arrow shown in the illustration to detach the guide and remove the front pillar garnish LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

Protect the curtain shield airbag assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Protective Cover
	Adhesive Tape

Cover the airbag with a cloth or piece of nylon and secure both ends of the cover with adhesive tape as shown in the illustration.

NOTE:

Cover the curtain shield airbag assembly with a protective cover as soon as the front pillar garnish LH is removed.

REMOVE FRONT PILLAR GARNISH RH
HINT:

Use the same procedure described for the LH side.

REMOVE LOWER CENTER PILLAR GARNISH LH

Place both hands at the position shown in the illustration and pull in the direction indicated by the arrow shown in the illustration to detach the claw and clip.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place hands here
	Remove in this Direction

Lift in the removal direction (1) shown in the illustration to pull out the rear cooler air duct adapter LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Remove in this Direction (1)
	Remove in this Direction (2)

Remove the lower center pillar garnish LH in the removal direction (2) shown in the illustration.

REMOVE LOWER CENTER PILLAR GARNISH RH
HINT:

Use the same procedure described for the LH side.

REMOVE UPPER CENTER PILLAR GARNISH LH

Remove the 2 clips.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Place both hands at the position shown in the illustration, detach the clip and hook and remove the upper center pillar garnish LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place hands here
	Remove in this Direction

REMOVE UPPER CENTER PILLAR GARNISH RH
HINT:

Use the same procedure described for the LH side.

REMOVE REAR SEAT SIDE GARNISH LH

for Fixed Seat Type:

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the clamp and claw.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place hand here
	Remove in this Direction

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the clip and claw and remove the rear seat side garnish LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place hand here
	Remove in this Direction

Pull in the removal direction (1) shown in the illustration to detach the clip.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Remove in this Direction (1)
	Remove in this Direction (2)

Pull in the removal direction (2) shown in the illustration to detach the guide and remove the seat belt guide from the rear seat side garnish LH.

for Power Seat:

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the clamp.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place hand here
	Remove in this Direction

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw, clip and guide and remove the rear seat side garnish LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place hand here
	Remove in this Direction

REMOVE REAR SEAT SIDE GARNISH RH
HINT:

Use the same procedure described for the LH side.
REMOVE ROOM PARTITION BOARD ASSEMBLY LH (for Power Seat)
Refer to PROCEDURE - Step 17
REMOVE ROOM PARTITION BOARD ASSEMBLY RH (for Power Seat)
Refer to PROCEDURE - Step 18

REMOVE ROOF SIDE RAIL GARNISH ASSEMBLY LH

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the clip.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place hand here
	Remove in this Direction

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the clip.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place hand here
	Remove in this Direction

Place your hand in the gap and pull in the direction indicated by the arrow to detach the clip.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place hand here
	Remove in this Direction

Pull in the direction indicated by the arrow to detach the clip and remove the roof side rail garnish LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

REMOVE ROOF SIDE RAIL GARNISH ASSEMBLY RH
HINT:

Use the same procedure described for the LH side.

REMOVE PACKAGE TRAY TRIM GARNISH LH

Apply protective tape at the position shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Protective Tape

Using moulding remover D, detach the clip.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

Pull in the direction indicated by the arrow to detach the guide and remove the package tray trim garnish LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

REMOVE PACKAGE TRAY TRIM GARNISH RH
HINT:

Use the same procedure described for the LH side.

REMOVE PACKAGE TRAY TRIM SIDE COVER LH

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the clip and clamp and remove the package tray trim side cover LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Inner Roof Side Garnish Assembly LH
	Place hand here
	Remove in this Direction

NOTE:

When detaching clamp A, push down on the roof side inner garnish assembly LH side.

REMOVE PACKAGE TRAY TRIM SIDE COVER RH
HINT:

Use the same procedure described for the LH side.

REMOVE INNER ROOF SIDE GARNISH ASSEMBLY LH

Place your hand at the position shown in the illustration and detach the clip.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place hand here
	Remove in this Direction

Detach the guide and remove the inner roof side garnish assembly LH in the direction indicated by the arrow shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

REMOVE INNER ROOF SIDE GARNISH ASSEMBLY RH
HINT:

Use the same procedure described for the LH side.

REMOVE ASSIST GRIP SUB-ASSEMBLY

HINT:

Use the same procedure for all assist grip assemblies.

Insert SST into the cutout of the assist grip cover LH as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Cutout

SST: 09813-00010

NOTE:

To prevent the assist grip assembly from being damaged, make sure to insert SST straight into the cutout.

Pull SST as shown in the illustration to detach the claw.

NOTE:

To prevent the assist grip assembly from being damaged, make sure to only pull SST as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	30 to 45°
	Remove in this Direction

HINT:

Use the same procedure for the claw on the other side of the assist grip cover LH.

Remove the assist grip cover LH.
HINT:

Use the same procedure for the LH side and RH side.

Pinch the clip with needle-nose pliers.

HINT:

Use the same procedure for both clips.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

Hold the handle and pull in the direction indicated by the arrow shown in the illustration to remove the assist grip sub-assembly.

Using needle-nose pliers, remove the clip.

REMOVE COAT HOOK

HINT:

Use the same procedure for the opposite side.

Remove the screw.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Pull in the direction indicated by the arrow shown in the illustration to detach the claw and remove the coat hook.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

REMOVE SPOT LIGHT ASSEMBLY
Refer to PROCEDURE - Step 1
REMOVE VANITY MIRROR ASSEMBLY
Refer to PROCEDURE - Step 1

REMOVE VISOR BRACKET COVER LH

Detach the claw and remove the visor bracket cover LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE VISOR ASSEMBLY LH

Remove the 2 screws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Pull in the removal direction (1) shown in the illustration to detach the visor assembly RH from the visor holder LH.

	Remove in this Direction (1)
	Remove in this Direction (2)

Pull in the removal direction (2) shown in the illustration to detach the visor assembly LH.
NOTE:
Do not twist or remove it in any direction other than down, since doing so may damage the connector.

REMOVE VISOR HOLDER LH

Turn the visor holder LH end approximately 45° in the direction (1) indicated by the arrow and pull it out in the direction (2) indicated by the arrow shown in the illustration.

*a	45°
	Remove in this Direction (1)
	Remove in this Direction (2)

Detach the claw and remove the visor holder LH.

REMOVE VISOR BRACKET COVER RH
HINT:

Use the same procedure described for the LH side.
REMOVE VISOR ASSEMBLY RH
HINT:

Use the same procedure described for the LH side.
REMOVE VISOR HOLDER RH
HINT:

Use the same procedure described for the LH side.
REMOVE VANITY LIGHT ASSEMBLY
Refer to PROCEDURE - Step 1

REMOVE FRONT ROOF TOP GARNISH

w/o Advanced Drive:

Remove in this Direction

Insert moulding remover D at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw.

Place your hand in the gap and detach the claw.

	Place hand here
	Remove in this Direction

Pull in the direction indicated by the arrow shown in the illustration to detach the guide and remove the front roof top garnish.

Remove in this Direction

w/ Advanced Drive:

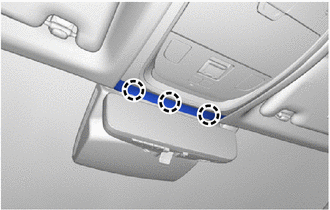

Detach the claw and remove the front roof top garnish.

REMOVE MAP LIGHT ASSEMBLY
Refer to PROCEDURE - Step 2
REMOVE WINDSHIELD GLASS
Refer to REMOVAL [10/2020 - 11/2021]

REMOVE ROOF HEADLINING ASSEMBLY

w/ Advanced Drive, Rear Pillar LH Side:

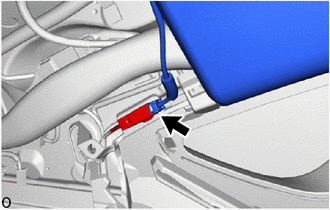

Disconnect the connector.

Rear Pillar RH side:

Disconnect the 3 connectors.

Front Pillar LH side:

Remove the protective cover installed to the front pillar LH.

Using a clip remover, detach the clamp.

Disconnect the 3 connectors.
Install the protective cover to the front pillar LH.

Disconnect the connector.

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the hook, fastener and claw.

Detach the guide.

*a	Fastener	*b	Hook
*c	Guide	-	-
	Place hand here		Remove in this Direction

NOTE:

When removing the roof headlining assembly, always detach the claws one side at a time.
Have 1 or 2 people support the roof headlining assembly on the side with the detached claws while detaching the claws on the other side.

Slide the roof headlining assembly toward the rear of the vehicle and detach the clip.

Remove in this Direction

HINT:

The 3 clips remain on the vehicle side.

Tilt the roof headlining assembly and carry it out of the front of the vehicle.

NOTE:

Make sure wrinkles do not form in the roof headlining assembly during removal.
Make sure the roof headlining does not get caught, as it may bend or get damaged.
Do not damage the roof headlining or body interior.

Remove in this Direction

Turn in the direction indicated by the arrow shown in the illustration and remove the 3 clips from the vehicle.

Remove in this Direction

Remove the grommet from the vehicle.

HINT:

Use the same procedure for the opposite side.

REMOVE OUTSIDE FRONT DOOR SCUFF PLATE LH

Protective Tape

Apply protective tape around the outside front door scuff plate LH.

Remove in this Direction

Insert moulding remover D at the position shown in the illustration and lift in the direction indicated by the arrow to detach the claw and outside front door scuff plate LH.

REMOVE OUTSIDE FRONT DOOR SCUFF PLATE RH
HINT:

Use the same procedure described for the LH side.

REMOVE OUTSIDE REAR DOOR SCUFF PLATE LH

Protective Tape

Apply protective tape around the outside rear door scuff plate LH.

Remove in this Direction

Insert moulding remover D at the position shown in the illustration and lift in the direction indicated by the arrow to detach the claw and outside rear door scuff plate LH.

REMOVE OUTSIDE REAR DOOR SCUFF PLATE RH
HINT:

Use the same procedure described for the LH side.
