Removal [10/2020 - 10/2022]: Procedure

  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to REMOVAL [10/2017 - 10/2023]

  2. REMOVE UPPER CONSOLE PANEL ASSEMBLY
    1. Open the door and cup holder of the console box assembly.
    2. Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the clip and guide.
      GTY967937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place hand here
      Remove in this Direction
    3. Lift up in the direction indicated by the arrow shown in the illustration to detach the clip.
      GTY967951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    4. Detach the clamp, disconnect the 4 connectors and remove the upper console panel assembly.
      GTY815951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 1 CONSOLE UPPER PANEL GARNISH
    1. Place your hand at the position shown in the illustration, detach the clip in the order shown in the illustration and remove the No. 1 console upper panel garnish.
      GTY821913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place hand here
      Remove in this Direction
  4. REMOVE NO. 2 CONSOLE UPPER PANEL GARNISH
    1. Place your hand at the position shown in the illustration, detach the clip in the order shown in the illustration and remove the No. 2 console upper panel garnish.
      GTY774944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place hand here
      Remove in this Direction
  5. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL
    1. Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the clip.
      GTY828695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place hand here
      Remove in this Direction
    2. Place your hand in the gap and pull in the removal direction (1) to detach the clip.
      GTY807225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place hand here
      Remove in this Direction (1)
      Remove in this Direction (2)
    3. Pull in the removal direction (2) and remove the lower center instrument panel finish panel.
  6. REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY
    1. w/ Disc Player:
      1. Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the clip and guide and remove the console rear end panel sub-assembly.
        GTY817436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Place hand here
        Remove in this Direction
      2. Disconnect the connector.
        GTY815974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/o Disc Player:
      1. GTY779375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Place hand here
        Remove in this Direction

        Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the clip and guide and remove the console rear end panel sub-assembly.

      2. Disconnect the connector.
        GTY815972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE DISC PLAYER ASSEMBLY WITH BRACKET (w/ Disc Player)

    Refer to PROCEDURE - Step 2

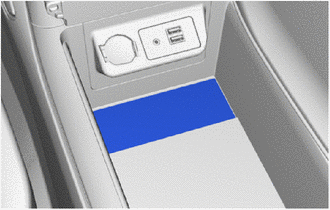

  8. REMOVE BOX BOTTOM MAT
    1. Remove the box bottom mat.
      GTY967768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE CONSOLE BOX ASSEMBLY
    1. Remove the 2 bolts.
      GTY815971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts.
      GTY815970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the 3 connectors.
      GTY815976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

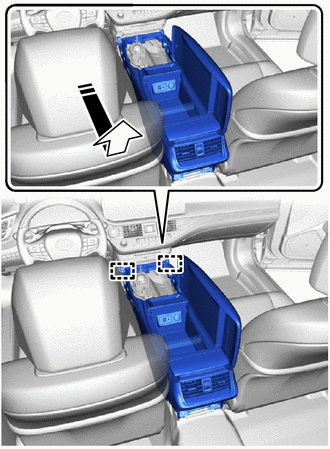

    4. While avoiding the shift lever, pull in the direction indicated by the arrow shown in the illustration to detach the guide and remove the console box assembly.
      GTY966983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
