Removal [09/2018 - 10/2020]: Procedure

  1. REMOVE FRONT SEAT ASSEMBLY LH

    Refer to REMOVAL [09/2018 - 10/2020]

  2. REMOVE FRONT SEAT ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  3. REMOVE REAR SEAT CUSHION ASSEMBLY (for Fixed Seat Type)

    Refer to PROCEDURE - Step 4

  4. REMOVE NO. 1 SEAT ARMREST CAP (for Fixed Seat Type)

    Refer to PROCEDURE - Step 5

  5. REMOVE REAR SEATBACK ASSEMBLY (for Fixed Seat Type)

    Refer to PROCEDURE - Step 6

  6. REMOVE REAR SEAT CUSHION LOCK HOOK (for Fixed Seat Type)

    Refer to PROCEDURE - Step 7

  7. REMOVE REAR SEATBACK HOLDER (for Fixed Seat Type)

    Refer to PROCEDURE - Step 8

  8. REMOVE REAR SEAT CUSHION ASSEMBLY LH (for Power Seat)

    Refer to PROCEDURE - Step 4

  9. REMOVE REAR SEAT CUSHION ASSEMBLY RH (for Power Seat)

    HINT:

    Use the same procedure described for the LH side.

  10. REMOVE REAR SEAT CUSHION LOCK HOOK (for Power Seat)

    Refer to PROCEDURE - Step 7

  11. REMOVE REAR SEATBACK ASSEMBLY LH (for Power Seat)

    Refer to PROCEDURE - Step 8

  12. REMOVE REAR SEATBACK ASSEMBLY RH (for Power Seat)

    HINT:

    Use the same procedure described for the LH side.

  13. REMOVE FRONT DOOR SCUFF PLATE LH

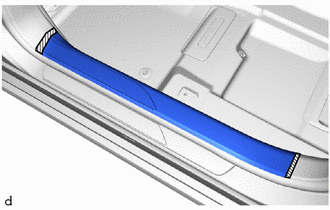

    1. Apply protective tape around the front door scuff plate LH.
      GTY834250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

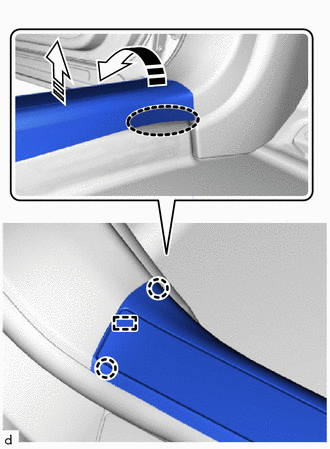

    2. Place your hand at the position shown in the illustration and pull in the removal direction (1) to detach the claw.
      GTY836499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place hand here
      Remove in this Direction (1)
      Remove in this Direction (2)
    3. Lift in the removal direction (2) to detach the clamp and claw.

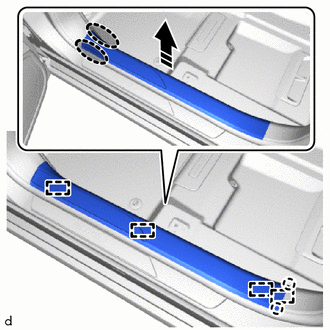

    4. Place both hands at the position shown in the illustration and lift in the direction indicated by the arrow to detach the clamp and claw and remove the front door scuff plate LH.
      GTY824105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place hands here
      Remove in this Direction
  14. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure described for the LH side.

  15. REMOVE REAR DOOR SCUFF PLATE LH
    1. Apply protective tape around the rear door scuff plate LH.
      GTY777129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

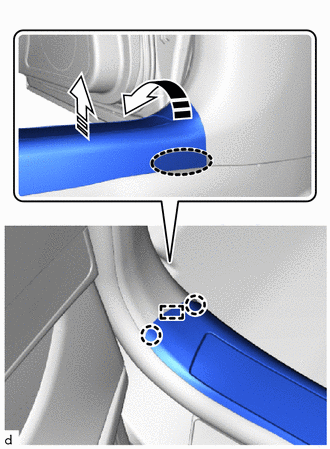

    2. Place your hand at the position shown in the illustration and pull in the removal direction (1) to detach the claw.
      GTY785607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place hand here
      Remove in this Direction (1)
      Remove in this Direction (2)
    3. Lift in the removal direction (2) to detach the clamp and claw.

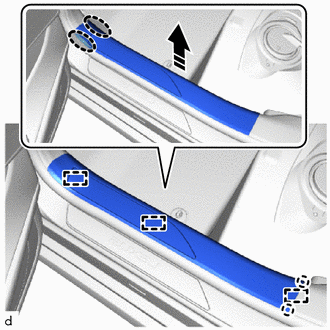

    4. Place both hands at the position shown in the illustration and lift in the direction indicated by the arrow to detach the clamp and claw and remove the rear door scuff plate LH.
      GTY790890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place hands here
      Remove in this Direction
  16. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure described for the LH side.

  17. REMOVE FRONT PILLAR GARNISH LH
    1. GTY836670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place hand here
      Remove in this Direction

      Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the front pillar garnish clip and slightly pull the upper part of the front pillar garnish LH away from the vehicle.

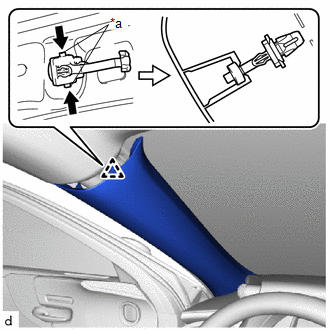

    2. Push in the release lever with your fingers and detach the front pillar garnish clip from the vehicle.
      NOTE:

      If there is extreme damage to the front pillar garnish clip, replace it with a new one.

      GTY838264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Release Lever
      Push
    3. When the front pillar garnish clip cannot be detached by pressing the knobs with the fingers:
      1. GTY786254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Direction (A)
        Push

        Lift up the front pillar garnish clip in the direction (A) while pressing the portion indicated by the arrow in the illustration with your fingers.

      2. GTY790202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Direction (B)
        Release Lever
        Push

        Push in the portion indicated by the arrow in the illustration with the screwdriver end while pulling the front pillar garnish clip with your fingers in the direction (B) to detach the front pillar garnish clip.

        NOTE:

        If there is extreme damage to the front pillar garnish clip, replace it with a new one.

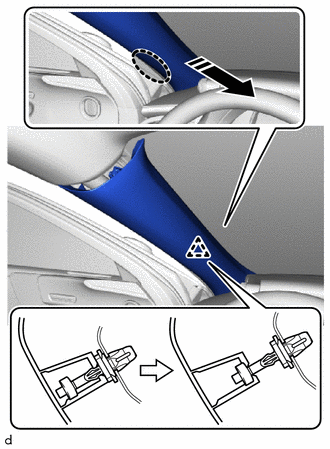

    4. GTY780859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place hand here
      Remove in this Direction

      Place your hand in the gap and pull in the direction indicated by the arrow to detach the front pillar garnish clip and lift the bottom part of the front pillar garnish LH.

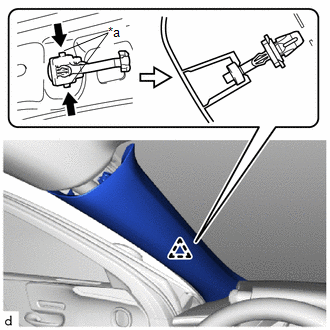

    5. Push in the release lever with your fingers and detach the front pillar garnish clip from the vehicle.
      NOTE:

      If there is extreme damage to the front pillar garnish clip, replace it with a new one.

      GTY786299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Release Lever
      Push
    6. When the front pillar garnish clip cannot be detached by pressing the knobs with the fingers:

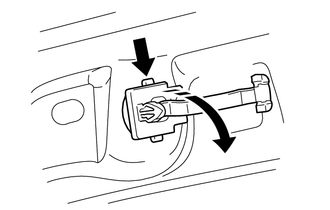

      1. GTY786256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Direction (A)
        Push

        Lift up the front pillar garnish clip in the direction (A) while pressing the portion indicated by the arrow in the illustration with your fingers.

      2. GTY790200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Direction (B)
        Release Lever
        Push

        Push in the portion indicated by the arrow in the illustration with the screwdriver end while pulling the front pillar garnish clip with your fingers in the direction (B) to detach the front pillar garnish clip.

        NOTE:

        If there is extreme damage to the front pillar garnish clip, replace it with a new one.

    7. Pull the front pillar garnish LH in the direction indicated by the arrow shown in the illustration to detach the guide and remove the front pillar garnish LH.
      GTY781769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

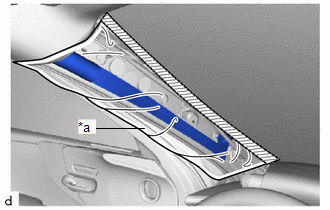

    8. Protect the curtain shield airbag assembly.
      1. GTY789000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Protective Cover
        Adhesive Tape

        Cover the airbag with a cloth or piece of nylon and secure both ends of the cover with adhesive tape as shown in the illustration.

        NOTE:

        Cover the curtain shield airbag assembly with a protective cover as soon as the front pillar garnish LH is removed.

  18. REMOVE FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedure described for the LH side.

  19. REMOVE LOWER CENTER PILLAR GARNISH LH
    1. Place both hands at the position shown in the illustration and pull in the direction indicated by the arrow shown in the illustration to detach the claw and clip.

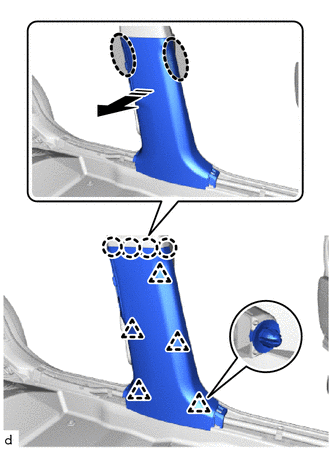

      GTY794199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place hands here
      Remove in this Direction

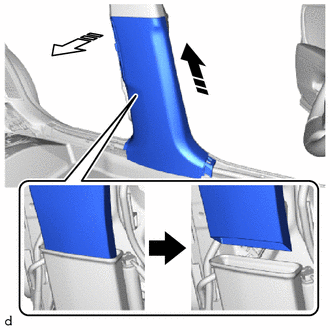

    2. Lift in the removal direction (1) shown in the illustration to pull out the rear cooler air duct adapter LH.
      GTY802129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
    3. Remove the lower center pillar garnish LH in the removal direction (2) shown in the illustration.
  20. REMOVE LOWER CENTER PILLAR GARNISH RH

    HINT:

    Use the same procedure described for the LH side.

  21. REMOVE UPPER CENTER PILLAR GARNISH LH

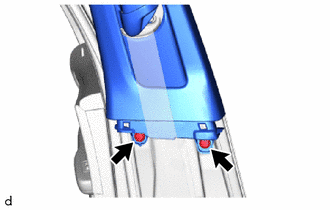

    1. Remove the 2 clips.
      GTY836270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Place both hands at the position shown in the illustration, detach the clip and hook and remove the upper center pillar garnish LH.
      GTY816501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place hands here
      Remove in this Direction
  22. REMOVE UPPER CENTER PILLAR GARNISH RH

    HINT:

    Use the same procedure described for the LH side.

  23. REMOVE REAR SEAT SIDE GARNISH LH
    1. for Fixed Seat Type:

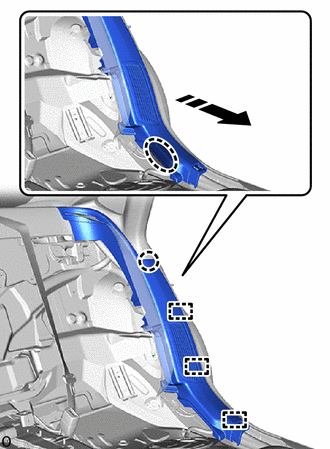

      1. Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the clamp and claw.
        GTY826343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Place hand here
        Remove in this Direction
      2. Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the clip and claw and remove the rear seat side garnish LH.
        GTY827432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Place hand here
        Remove in this Direction

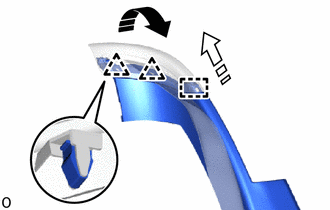

      3. Pull in the removal direction (1) shown in the illustration to detach the clip.
        GTY803526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Remove in this Direction (1)
        Remove in this Direction (2)
      4. Pull in the removal direction (2) shown in the illustration to detach the guide and remove the seat belt guide from the rear seat side garnish LH.
    2. for Power Seat:
      1. Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the clamp.

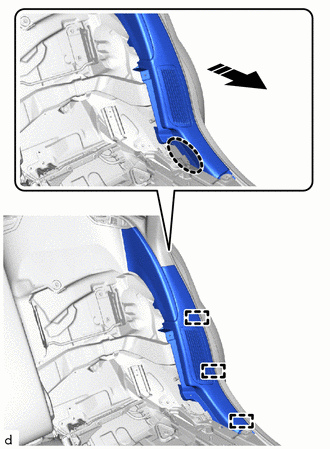

        GTY834992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Place hand here
        Remove in this Direction

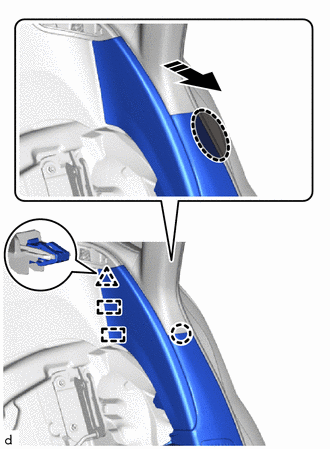

      2. Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw, clip and guide and remove the rear seat side garnish LH.
        GTY820485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Place hand here
        Remove in this Direction
  24. REMOVE REAR SEAT SIDE GARNISH RH

    HINT:

    Use the same procedure described for the LH side.

  25. REMOVE ROOM PARTITION BOARD ASSEMBLY LH (for Power Seat)

    Refer to PROCEDURE - Step 17

  26. REMOVE ROOM PARTITION BOARD ASSEMBLY RH (for Power Seat)

    Refer to PROCEDURE - Step 18

  27. REMOVE ROOF SIDE RAIL GARNISH ASSEMBLY LH
    1. Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the clip.

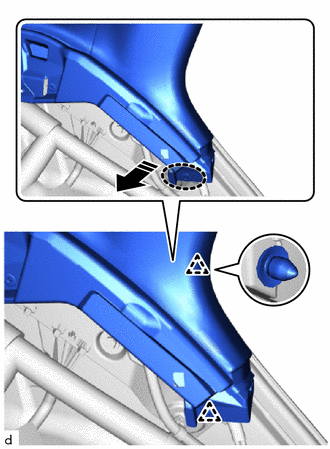

      GTY826173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place hand here
      Remove in this Direction

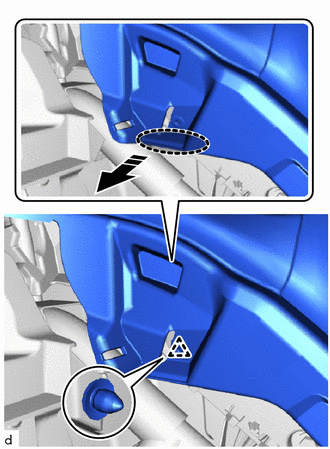

    2. Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the clip.
      GTY821660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place hand here
      Remove in this Direction

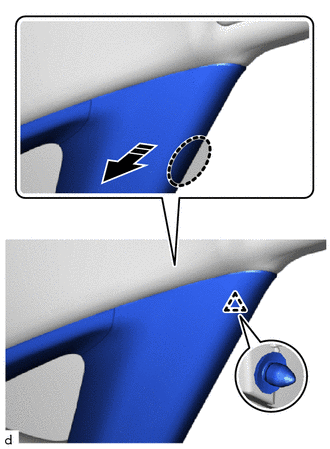

    3. Place your hand in the gap and pull in the direction indicated by the arrow to detach the clip.
      GTY776385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place hand here
      Remove in this Direction

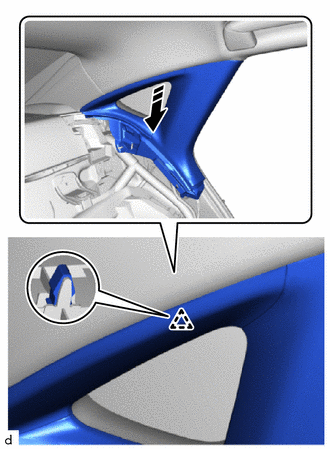

    4. Pull in the direction indicated by the arrow to detach the clip and remove the roof side rail garnish LH.
      GTY828671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  28. REMOVE ROOF SIDE RAIL GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  29. REMOVE PACKAGE TRAY TRIM GARNISH LH
    1. Apply protective tape at the position shown in the illustration.

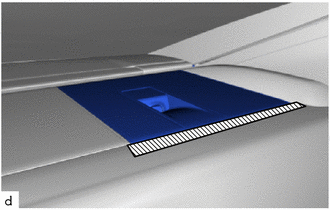

      GTY789976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Using moulding remover D, detach the clip.
      GTY817002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

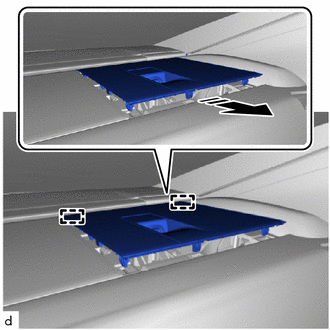

    3. Pull in the direction indicated by the arrow to detach the guide and remove the package tray trim garnish LH.
      GTY824146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  30. REMOVE PACKAGE TRAY TRIM GARNISH RH

    HINT:

    Use the same procedure described for the LH side.

  31. REMOVE PACKAGE TRAY TRIM SIDE COVER LH

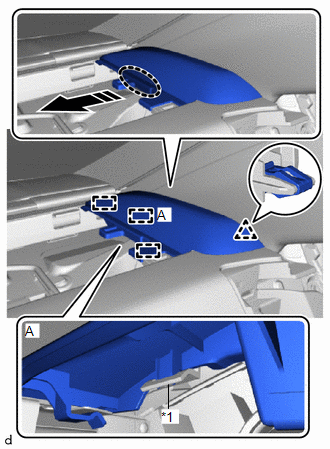

    1. Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the clip and clamp and remove the package tray trim side cover LH.
      GTY777179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Inner Roof Side Garnish Assembly LH
      Place hand here
      Remove in this Direction
      NOTE:

      When detaching clamp A, push down on the roof side inner garnish assembly LH side.

  32. REMOVE PACKAGE TRAY TRIM SIDE COVER RH

    HINT:

    Use the same procedure described for the LH side.

  33. REMOVE INNER ROOF SIDE GARNISH ASSEMBLY LH

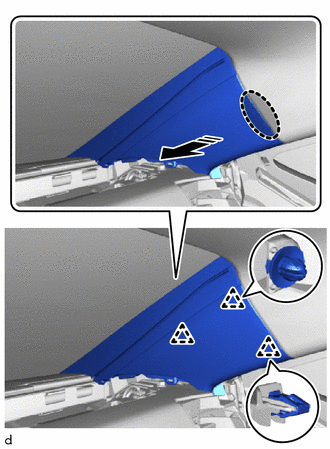

    1. Place your hand at the position shown in the illustration and detach the clip.
      GTY785676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place hand here
      Remove in this Direction
    2. Detach the guide and remove the inner roof side garnish assembly LH in the direction indicated by the arrow shown in the illustration.

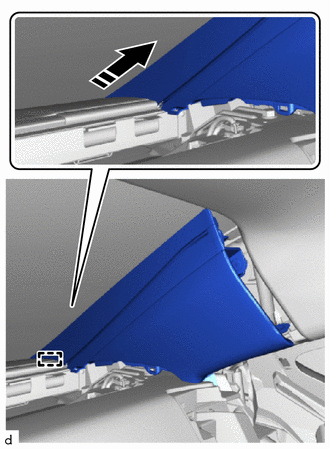

      GTY790723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  34. REMOVE INNER ROOF SIDE GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  35. REMOVE ASSIST GRIP SUB-ASSEMBLY

    HINT:

    Use the same procedure for all assist grip assemblies.

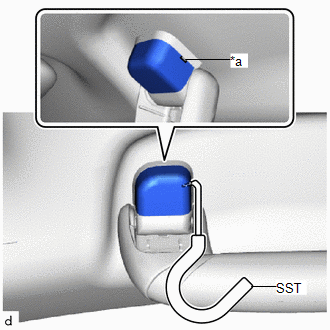

    1. Insert SST into the cutout of the assist grip cover LH as shown in the illustration.
      GTY788855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Cutout
      • SST: 09813-00010
      NOTE:

      To prevent the assist grip assembly from being damaged, make sure to insert SST straight into the cutout.

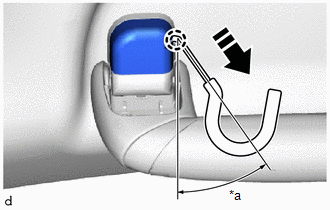

    2. Pull SST as shown in the illustration to detach the claw.
      NOTE:

      To prevent the assist grip assembly from being damaged, make sure to only pull SST as shown in the illustration.

      GTY798797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 30 to 45°
      Remove in this Direction

      HINT:

      Use the same procedure for the claw on the other side of the assist grip cover LH.

    3. Remove the assist grip cover LH.

      HINT:

      Use the same procedure for the LH side and RH side.

    4. Pinch the clip with needle-nose pliers.

      HINT:

      Use the same procedure for both clips.

      GTY793119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

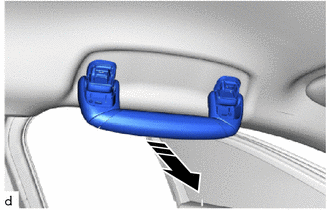

    5. GTY791340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

      Hold the handle and pull in the direction indicated by the arrow shown in the illustration to remove the assist grip sub-assembly.

    6. Using needle-nose pliers, remove the clip.
  36. REMOVE COAT HOOK

    HINT:

    Use the same procedure for the opposite side.

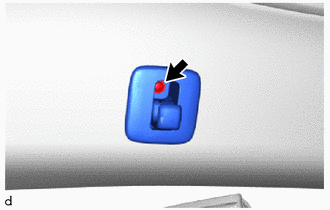

    1. Remove the screw.
      GTY816022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

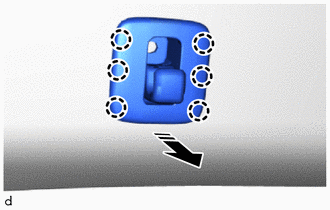

    2. Pull in the direction indicated by the arrow shown in the illustration to detach the claw and remove the coat hook.
      GTY811544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  37. REMOVE SPOT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  38. REMOVE VANITY MIRROR ASSEMBLY

    Refer to PROCEDURE - Step 1

  39. REMOVE VISOR BRACKET COVER LH

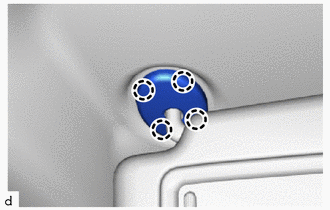

    1. Detach the claw and remove the visor bracket cover LH.
      GTY816021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. REMOVE VISOR ASSEMBLY LH
    1. Remove the 2 screws.
      GTY816020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

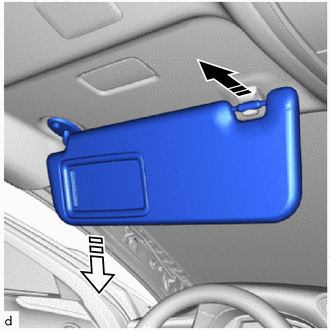

    2. Pull in the removal direction (1) shown in the illustration to detach the visor assembly RH from the visor holder LH.
      GTY830294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
    3. Pull in the removal direction (2) shown in the illustration to detach the visor assembly LH.
      NOTE:

      Do not twist or remove it in any direction other than down, since doing so may damage the connector.

  41. REMOVE VISOR HOLDER LH

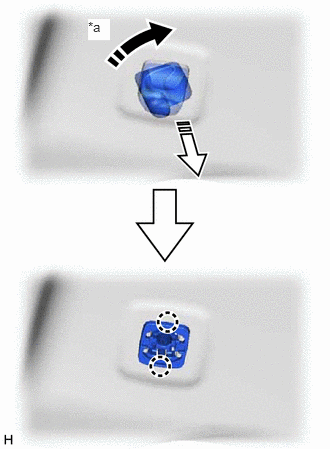

    1. Turn the visor holder LH end approximately 45° in the direction (1) indicated by the arrow and pull it out in the direction (2) indicated by the arrow shown in the illustration.
      GTY788817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 45°
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Detach the claw and remove the visor holder LH.
  42. REMOVE VISOR BRACKET COVER RH

    HINT:

    Use the same procedure described for the LH side.

  43. REMOVE VISOR ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  44. REMOVE VISOR HOLDER RH

    HINT:

    Use the same procedure described for the LH side.

  45. REMOVE VANITY LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  46. REMOVE FRONT ROOF TOP GARNISH

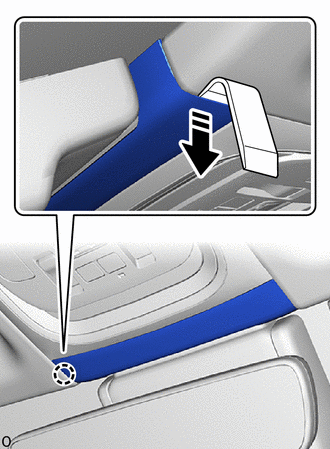

    1. Insert moulding remover D at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw.
      GTY966048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

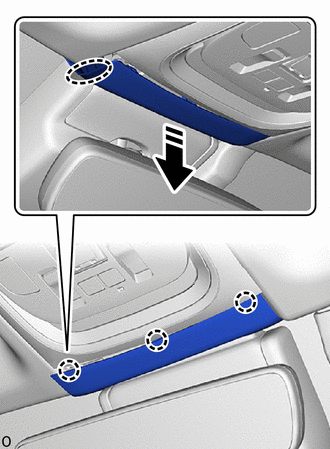

    2. Place your hand in the gap and detach the claw.
      GTY965890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place hand here
      Remove in this Direction
    3. Pull in the direction indicated by the arrow shown in the illustration to detach the guide and remove the front roof top garnish.
      GTY966345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  47. REMOVE MAP LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 2

  48. REMOVE WINDSHIELD GLASS

    Refer to REMOVAL [09/2018 - 10/2020]

  49. REMOVE ROOF HEADLINING ASSEMBLY

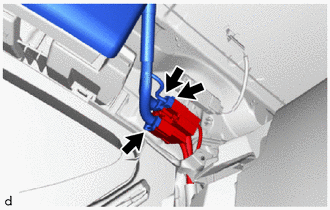

    1. Rear pillar RH side:
      1. Disconnect the 3 connectors.
        GTY800855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

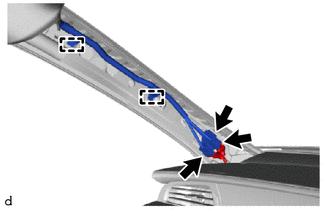

    2. Front pillar LH side:
      1. Remove the protective cover installed to the front pillar LH.
      2. Using a clip remover, detach the clamp.
        GTY800856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Disconnect the 3 connectors.
      4. Install the protective cover to the front pillar LH.
    3. Disconnect the connector.
      GTY828973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

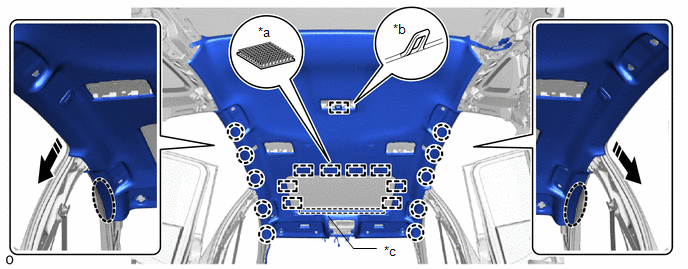

    4. Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the hook, fastener and claw.
    5. Detach the guide.
      GTY777630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Fastener *b Hook
      *c Guide - -
      Place hand here Remove in this Direction
      NOTE:
      • When removing the roof headlining assembly, always detach the claws one side at a time.
      • Have 1 or 2 people support the roof headlining assembly on the side with the detached claws while detaching the claws on the other side.

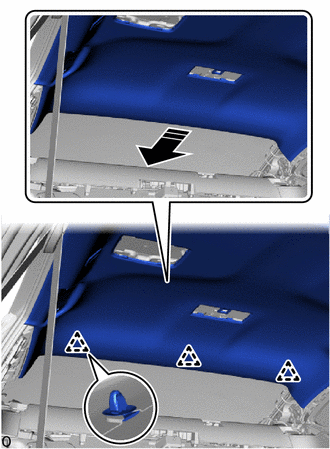

    6. Slide the roof headlining assembly toward the rear of the vehicle and detach the clip.
      GTY830414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

      HINT:

      The 3 clips remain on the vehicle side.

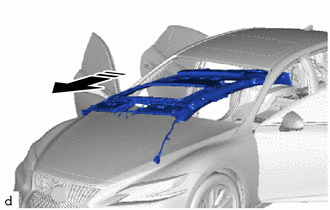

    7. Tilt the roof headlining assembly and carry it out of the front of the vehicle.
      NOTE:
      • Make sure wrinkles do not form in the roof headlining assembly during removal.
      • Make sure the roof headlining does not get caught, as it may bend or get damaged.
      • Do not damage the roof headlining or body interior.
      GTY832334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

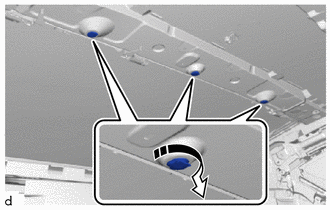

    8. Turn in the direction indicated by the arrow shown in the illustration and remove the 3 clips from the vehicle.
      GTY779622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    9. GTY816033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the grommet from the vehicle.

      HINT:

      Use the same procedure for the opposite side.

  50. REMOVE OUTSIDE FRONT DOOR SCUFF PLATE LH

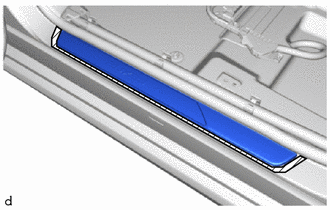

    1. GTY778365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

      Apply protective tape around the outside front door scuff plate LH.

    2. GTY785027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

      Insert moulding remover D at the position shown in the illustration and lift in the direction indicated by the arrow to detach the claw and outside front door scuff plate LH.

  51. REMOVE OUTSIDE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure described for the LH side.

  52. REMOVE OUTSIDE REAR DOOR SCUFF PLATE LH
    1. GTY793468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

      Apply protective tape around the outside rear door scuff plate LH.

    2. GTY798385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

      Insert moulding remover D at the position shown in the illustration and lift in the direction indicated by the arrow to detach the claw and outside rear door scuff plate LH.

  53. REMOVE OUTSIDE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure described for the LH side.

scientia non olet · About LEMON Manuals
