Removal [09/2015 - ]: Procedure

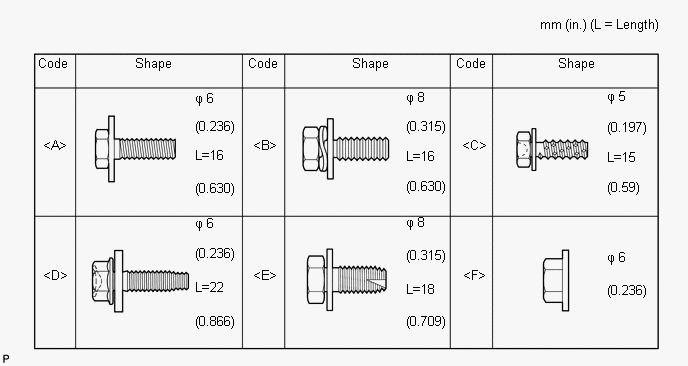

  1. TABLE OF BOLT, SCREW AND NUT

    HINT:

    All bolts, screws and nuts relevant to installing and removing the instrument panel are shown along with their alphabet code in the table below.

    GTY136126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  3. REMOVE BATTERY SERVICE HOLE COVER LH

    Refer to PROCEDURE - Step 4

  4. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the auxiliary battery negative (-) terminal. Therefore, make sure to read the disconnecting the cable from the auxiliary battery negative (-) terminal notices before proceeding with work (Refer to PRECAUTION [09/2015 - ] ).

  5. DISABLE AUTOAWAY/RETURN FUNCTION
    1. Disable the autoaway/return function by changing the customize parameter (Refer to CUSTOMIZE PARAMETERS [09/2015 - ] ).
      NOTE:

      Record the current customize parameter setting (whether the autoaway/return function is enabled or disabled) in order to restore the current setting after finishing the operation.

      HINT:

      Performing the above operation causes the autoaway/return function to be disabled when the power switch is turned off.

    2. Turn the power switch on (IG). Operate the tilt and telescopic switch to fully retract and tilt up the steering column assembly.
    3. Turn the power switch off.
  6. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    1. Disconnect the cable from the auxiliary battery negative (-) terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the auxiliary battery negative (-) terminal to disable the SRS system.

      NOTE:

      When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - ] ).

  7. REMOVE INSTRUMENT SIDE PANEL LH
    GTY397302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Apply protective tape as shown in the illustration.
      TEXT IN ILLUSTRATION

      *1 Protective Tape
    2. Using moulding remover D, detach the 6 clips and remove the instrument side panel LH.
  8. REMOVE INSTRUMENT PANEL ORNAMENT
    GTY414261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Apply protective tape as shown in the illustration.
      TEXT IN ILLUSTRATION

      *1 Protective Tape
    2. Using moulding remover B, detach the 4 clips and remove the instrument panel ornament.
    3. Disconnect the connector.
  9. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
    1. Using a screwdriver, detach the claw and remove the switch base hole cover from the No. 1 instrument panel safety pad sub-assembly.
      GTY404285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Tape the screwdriver tip before use.

      TEXT IN ILLUSTRATION

      *1 Protective Tape
    2. Remove the bolt.
      GTY406542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the screw <C>.
    4. Detach the 5 clips and claw and remove the No. 1 instrument panel safety pad sub-assembly.
    5. Disconnect each connector.
  10. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    GTY406543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 screws.
    2. Detach the 2 claws as shown in the illustration and remove the No. 1 instrument panel under cover subassembly.
    3. Detach the 2 claws and disconnect the DLC3.
    4. Disconnect each connector and detach each clamp.
  11. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 10

  12. REMOVE HEADLIGHT DIMMER SWITCH ASSEMBLY

    (Refer to REMOVAL [09/2015 - ] )

  13. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    GTY400213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Apply protective tape as shown in the illustration.
    2. Remove the 2 clips.
    3. Detach the 2 clips and remove the No. 2 instrument cluster finish panel sub-assembly.
    4. Disconnect 2 connectors.
  14. REMOVE COMBINATION METER ASSEMBLY
    GTY418318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 4 screws and combination meter assembly.
    2. Detach the 2 claws and open the connector cover.
    3. Disconnect the connector.
  15. REMOVE CONSOLE BOX ASSEMBLY
    1. w/o Rear Seat Entertainment System:

      (Refer to REMOVAL [09/2015 - ] )

    2. w/ Rear Seat Entertainment System:

      (Refer to REMOVAL [09/2015 - ] )

  16. REMOVE MULTI-MEDIA MODULE RECEIVER ASSEMBLY

    Refer to PROCEDURE - Step 15

  17. REMOVE INSTRUMENT SIDE PANEL RH
    GTY410017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Apply protective tape as shown in the illustration.
      TEXT IN ILLUSTRATION

      *1 Protective Tape
    2. Using moulding remover D, detach the 6 clips and remove the instrument side panel RH.
  18. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY
    1. Apply protective tape as shown in the illustration.
    2. Using moulding remover B, detach the 12 clips and remove the instrument cluster finish panel garnish assembly.
    3. Disconnect each connector.
      GTY418033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape - -
  19. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    GTY117538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 4 claws and remove the No. 2 instrument panel under cover sub-assembly.
    2. Disconnect the connector.
  20. REMOVE LOWER INSTRUMENT PANEL

    Refer to PROCEDURE - Step 8

  21. REMOVE FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 9

  22. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
    GTY406624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 5 screws <C> and glove compartment door assembly.
    2. Disconnect each connector and detach each clamp.
  23. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
    GTY407450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 10 clips and remove the instrument panel finish panel sub-assembly.
  24. REMOVE ACCESSORY METER ASSEMBLY

    Refer to PROCEDURE - Step 17

  25. REMOVE FRONT PILLAR GARNISH LH

    Refer to PROCEDURE - Step 13

  26. REMOVE FRONT PILLAR GARNISH RH

    Refer to PROCEDURE - Step 10

  27. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  28. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY (for LH Side)

    Refer to PROCEDURE - Step 5

  29. REMOVE NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  30. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY (for RH Side)

    Refer to PROCEDURE - Step 5

  31. REMOVE NO. 1 SPEAKER HOLE COVER

    Refer to PROCEDURE - Step 1

  32. REMOVE FRONT NO. 3 SPEAKER ASSEMBLY

    Refer to PROCEDURE - Step 2

  33. REMOVE VEHICLE APPROACHING SPEAKER CONTROLLER

    Refer to PROCEDURE - Step 11

  34. REMOVE DCM (TELEMATICS TRANSCEIVER) (w/ Telematics Transceiver)

    Refer to PROCEDURE - Step 11

  35. REMOVE TIRE PRESSURE MONITOR RECEIVER ASSEMBLY

    Refer to PROCEDURE - Step 6

  36. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
    1. Disconnect each connector and detach each wire harness clamp.
    2. Detach the 2 claws and disconnect the cooler thermistor.
      GTY407449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 8 bolts <A> and 2 bolts <E> and nut <F>.
    4. Detach the 5 clips and remove the instrument panel safety pad sub-assembly.
      GTY683492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Bolt <A> *2 Bolt <E>
      *3 Nut <F> - -
  37. REMOVE NO. 3 INSTRUMENT PANEL STAY
    1. Detach the 5 claws and remove the 5 No. 3 instrument panel stays.
      GTY407448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
