Removal [09/2015 - ]: Procedure

  1. PREPARATION
    WARNING:

    Be sure to read Precaution thoroughly before servicing (Refer to PRECAUTION [09/2015 - ] ).

    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work (Refer to PRECAUTION [09/2015 - ] ).

  2. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  3. REMOVE BATTERY SERVICE HOLE COVER LH

    Refer to PROCEDURE - Step 4

  4. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - ] ).

  5. REMOVE INSTRUMENT PANEL FINISH PANEL END LH

    Refer to PROCEDURE - Step 1

  6. REMOVE INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 7

  7. REMOVE INSTRUMENT PANEL ORNAMENT

    Refer to PROCEDURE - Step 8

  8. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10

  9. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9

  10. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY
    WARNING:

    When storing the driver side knee airbag assembly, keep the airbag deployment side facing upward.

    1. Check that the power switch is off.
    2. Check that the cable is disconnected from the negative (-) auxiliary battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

    3. Remove the 4 bolts.

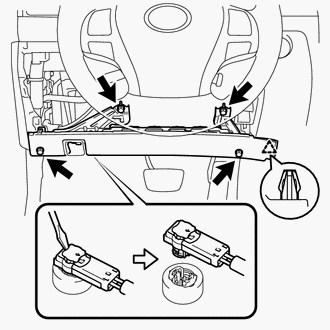

      GTY661715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Detach the clip and remove the driver side knee airbag assembly.
    5. Detach the claw to disconnect the hood lock control lever sub-assembly from the driver side knee airbag assembly.
    6. Using a screwdriver release the airbag connector lock.
    7. Disconnect the airbag connector.
      NOTE:

      When disconnecting airbag connector, take care not to damage the airbag wire harness.
