Removal [08/2014 - ]: Procedure

  1. REMOVE REAR NO. 2 FLOOR BOARD
    1. Remove the rear No. 2 floor board.
  2. REMOVE REAR DECK FLOOR BOX
    1. Remove the rear deck floor box.
  3. REMOVE REAR NO. 3 FLOOR BOARD
    1. Remove the rear No. 3 floor board.
  4. REMOVE DECK FLOOR BOX RH
    1. Remove the clip.

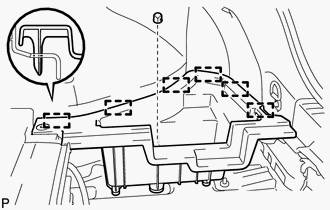

      GTY358574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 6 guides and remove the deck floor box RH.
  5. REMOVE REAR FLOOR BOARD UPPER NO. 3 PLATE
    1. Disengage the 4 claws and 2 guides, and remove the rear floor board upper No. 3 plate.

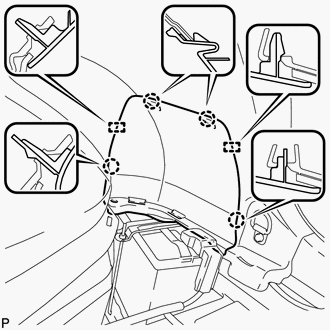

      GTY351404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE REAR SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 3

  7. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 4

  8. REMOVE REAR SEATBACK ASSEMBLY RH

    Refer to PROCEDURE - Step 5

  9. REMOVE REAR SEATBACK ASSEMBLY LH

    Refer to PROCEDURE - Step 6

  10. REMOVE REAR NO. 4 FLOOR BOARD (w/o Woofer)
    1. Remove the rear No. 4 floor board.
  11. REMOVE REAR NO. 4 FLOOR BOARD (w/ Woofer)
    1. Disengage the 2 clips and 3 guides, and remove the rear No. 4 floor board.

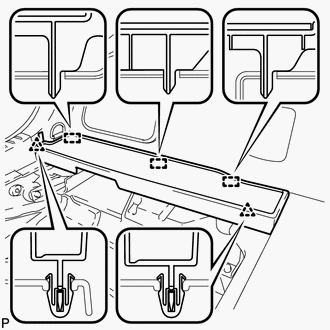

      GTY351405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE DECK FLOOR BOX LH (w/o Woofer)
    1. Remove the clip.

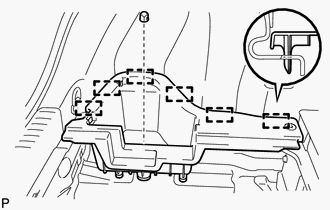

      GTY351407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 6 guides and remove the deck floor box LH.
  13. REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)
    1. Remove the tonneau cover assembly.
  14. REMOVE REAR NO. 1 FLOOR BOARD SUB-ASSEMBLY
    1. Disengage the 2 claws and 2 clips, and remove the rear No. 1 floor board sub-assembly.

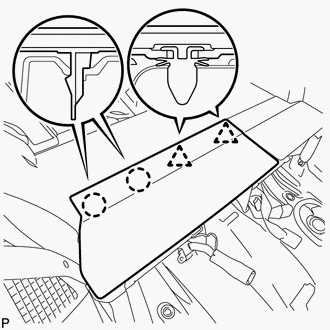

      GTY351398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE REAR NO. 2 FLOOR BOARD SUB-ASSEMBLY

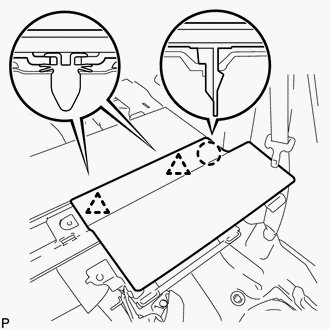

    1. Disengage the claw and 2 clips, and remove the rear No. 2 floor board sub-assembly.
      GTY358572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE REAR NO. 1 FLOOR BOARD
    1. Remove the bolt.

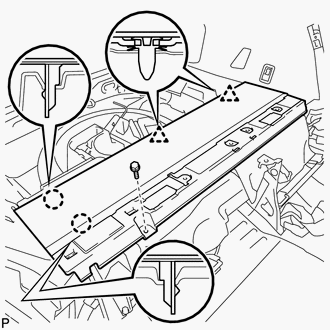

      GTY351400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws and 2 clips, and remove the rear No. 1 floor board.
  17. REMOVE DECK TRIM SERVICE HOLE COVER
    1. Disengage the 2 claws and guide (A).

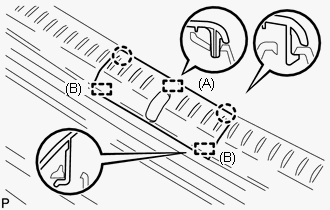

      GTY524929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides (B) and remove the deck trim service hole cover.
  18. REMOVE REAR DECK TRIM COVER
    1. Disengage the 4 clips and remove the rear deck trim cover.

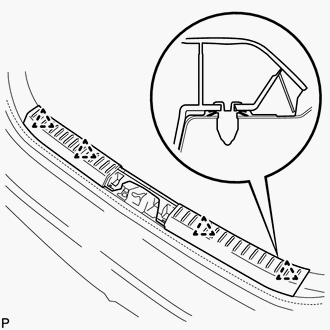

      GTY351416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE FRONT SEAT ASSEMBLY LH

    for Manual Seat (See article. Refer to REMOVAL [08/2014 - ] )

    for Power Seat (See article. Refer to REMOVAL [08/2014 - ] )

  20. REMOVE FRONT SEAT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  21. REMOVE FRONT DOOR SCUFF PLATE LH
    1. Disengage the 4 claws, 2 guides and 4 clips, and remove the front door scuff plate LH.

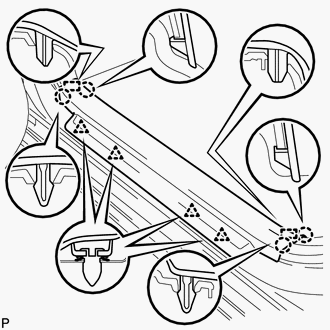

      GTY351465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH
    1. Remove the clip as shown in the illustration.

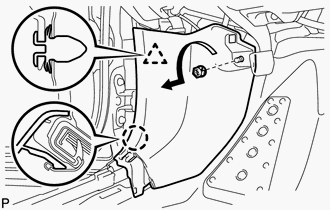

      GTY351464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clip and claw, and remove the cowl side trim sub-assembly LH.
  23. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
    1. Remove the front door opening trim weatherstrip LH.
    2. Remove the residual weatherstrip sealant from the body of the vehicle using cleaner.
      NOTE:

      Remove the sealant completely. Any residual sealant may transfer to other areas of the vehicle when removing/installing the interior parts.

  24. REMOVE FRONT PILLAR GARNISH LH
    1. Pull the upper part of the garnish toward the inside of the cabin and disengage the 2 clips.

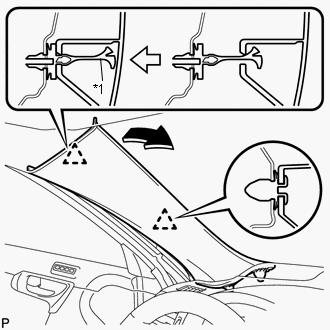

      GTY358534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Make the front pillar garnish LH hang down from the front pillar garnish clip.

      TEXT IN ILLUSTRATION

      *1 Front Pillar Garnish Clip
    2. Turn the end of the front pillar garnish clip 90° with needle-nosed pliers and remove it from the front pillar garnish LH.

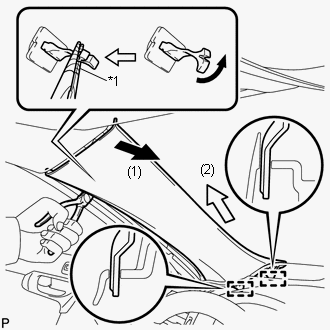

      GTY527344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Front pillar garnish clips are reusable if they are not removed from the vehicle and have no damage.
      • Replace the front pillar garnish clips with new ones if they are removed from the vehicle.

      HINT:

      Tape the tip of the needle-nosed pliers before use.

      TEXT IN ILLUSTRATION

      *1 Protective Tape
    3. Disengage the 2 guides.
    4. w/o Front Center Speaker:
      1. Remove the front pillar garnish LH by pulling it in the direction indicated by the arrow (2) in the illustration.
    5. w/ Front Center Speaker:
      1. Disconnect the front pillar garnish LH by pulling it in the direction indicated by the arrow (2) in the illustration.
      2. Disconnect the connector and remove the front pillar garnish LH.
    6. Protect the curtain shield airbag assembly.
      GTY538327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Adhesive Tape
      *2 Protective Cover
      *3 Curtain Shield Airbag Assembly
      1. Cover the airbag with a cloth or piece of nylon and secure the ends of the cover with tape as shown in the illustration.
        NOTE:

        Cover the curtain shield airbag with a protective cover as soon as the front pillar garnish is removed.

  25. REMOVE REAR DOOR SCUFF PLATE LH

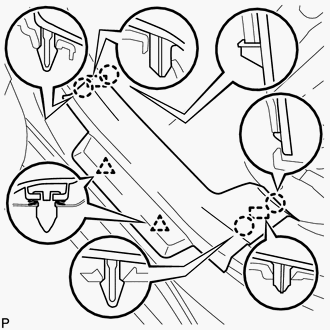

    1. Disengage the 4 claws, 2 guide and 2 clips, and remove the rear door scuff plate LH.
      GTY351466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
    1. Remove the rear door opening trim weatherstrip LH.
    2. Remove the residual weatherstrip sealant from the body of the vehicle using cleaner.
      NOTE:

      Remove the sealant completely. Any residual sealant may transfer to other areas of the vehicle when removing/installing the interior parts.

  27. REMOVE LAP BELT OUTER ANCHOR COVER (for LH Side)

    Refer to PROCEDURE - Step 13

  28. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY LH

    Refer to PROCEDURE - Step 14

  29. REMOVE CENTER PILLAR LOWER GARNISH LH
    1. Disengage the 4 claws and 2 clips, and remove the center pillar lower garnish LH.

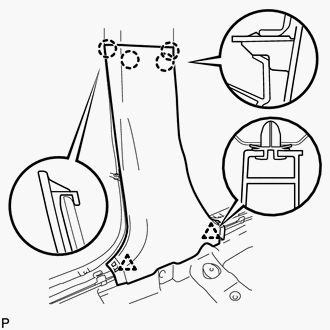

      GTY351444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE CENTER PILLAR UPPER GARNISH LH
    1. Remove the screw.

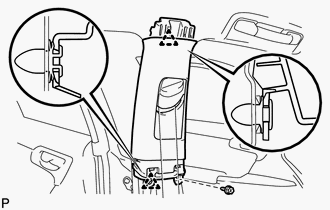

      GTY351443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clips.
    3. Pass the floor anchor of the front seat outer belt assembly LH through the center pillar garnish LH and remove the center pillar garnish LH.
  31. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  32. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  33. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure as for the LH side.

  34. REMOVE FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  35. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  36. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure as for the LH side.

  37. REMOVE LAP BELT OUTER ANCHOR COVER (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  38. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  39. REMOVE CENTER PILLAR LOWER GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  40. REMOVE CENTER PILLAR UPPER GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  41. REMOVE REAR SEAT SIDE GARNISH LH
    1. Remove the clip.

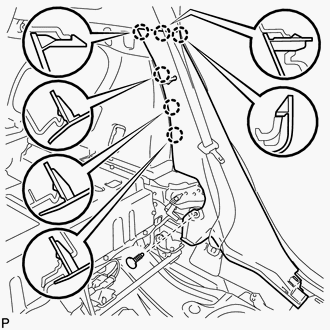

      GTY358573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 6 claws and remove the rear seat side garnish LH.
  42. REMOVE ROPE HOOK ASSEMBLY (for LH Side)
    1. Using a screwdriver, disengage the 2 claws.

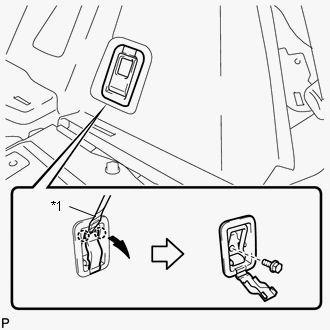

      GTY355352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape

      HINT:

      Tape the screwdriver tip before use.

    2. Remove the bolt and the rope hook assembly.
  43. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY (for LH Side)
    1. Remove the bolt.
      GTY351418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide and remove the luggage hold belt striker assembly.
  44. REMOVE TONNEAU COVER HOOK (for LH Side)
    1. Using a screwdriver, disengage the 2 claws and pin, and remove the tonneau cover hook.
      GTY537398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape

      HINT:

      Tape the screwdriver tip before use.

  45. REMOVE TONNEAU COVER HOLDER CAP (for LH Side)
    1. Using a screwdriver, disengage the claws and guide, and remove the tonneau cover holder cap.
      GTY355278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape

      HINT:

      Tape the screwdriver tip before use.

  46. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY LH

    Refer to PROCEDURE - Step 28

  47. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH
    1. Remove the 3 screws.
    2. Disengage the 4 claws and 3 clips, and remove the deck trim side panel assembly LH.

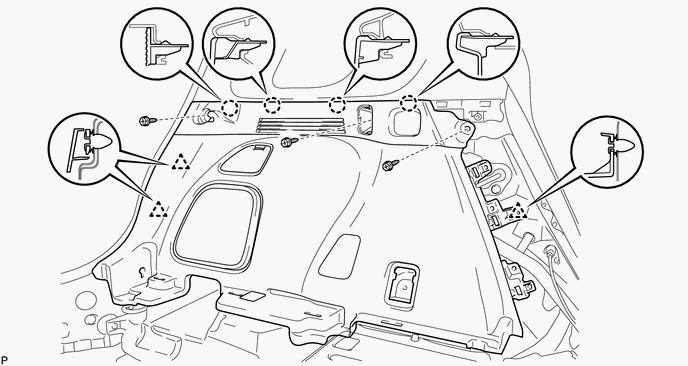

      GTY351756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  48. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH
    1. Using a moulding remover, disengage the 3 claws and 2 guides, and disconnect the belt guide.

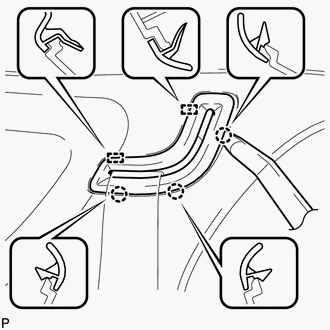

      GTY358630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 8 clips
    3. Pass the floor anchor of the rear seat outer belt assembly LH through the roof side inner garnish assembly LH and remove the roof side inner garnish assembly LH.

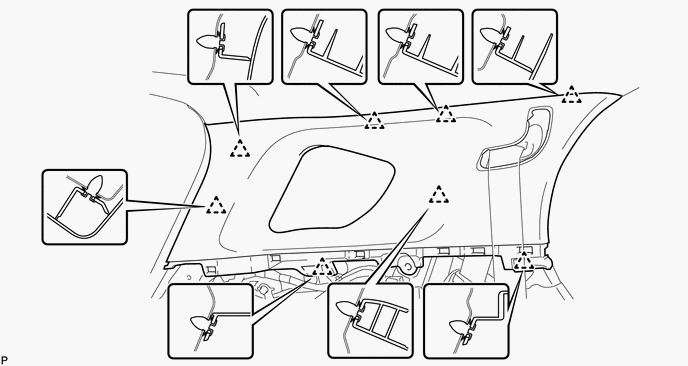

      GTY351744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  49. REMOVE REAR SEAT SIDE COVER RH
    1. Disengage the 3 claws and 2 clips, and remove the rear seat side cover RH.

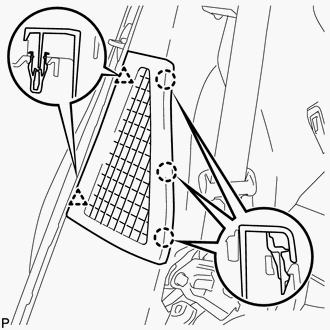

      GTY351399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  50. REMOVE REAR SEAT SIDE GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  51. REMOVE ROPE HOOK ASSEMBLY (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  52. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  53. REMOVE TONNEAU COVER HOOK (for RH Side)
    1. Using a screwdriver, disengage the 2 claws and pin, and remove the tonneau cover hook.
      GTY351393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape

      HINT:

      Tape the screwdriver tip before use.

  54. REMOVE TONNEAU COVER HOLDER CAP (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  55. REMOVE NO. 2 ROOM LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  56. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  57. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  58. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  59. REMOVE UPPER INSTRUMENT PANEL ASSEMBLY

    (See article. Refer to REMOVAL [08/2014 - ] )

  60. REMOVE BACK DOOR WEATHERSTRIP
    1. Remove the back door weatherstrip.
    2. Remove the residual weatherstrip sealant from the body of the vehicle using cleaner.
      NOTE:

      Remove the sealant completely. Any residual sealant may transfer to other areas of the vehicle when removing/installing the interior parts.

  61. REMOVE MAP LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  62. REMOVE NO. 1 ROOM LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  63. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER (w/ EC Mirror)

    Refer to PROCEDURE - Step 2

  64. REMOVE RAIN SENSOR COVER (w/ Rain Sensor)

    Refer to PROCEDURE - Step 1

  65. REMOVE ASSIST GRIP SUB-ASSEMBLY
    1. Using a screwdriver, disengage the 6 claws and remove the 2 assist grip covers.
      GTY248774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape
      NOTE:

      Do not forcibly pry the assist grip covers to prevent them from being deformed.

      HINT:

      Tape the screwdriver tip before use.

    2. Disengage the 2 clips and remove the assist grip sub-assembly.
    3. Remove the 2 clips from the vehicle body.
      GTY257238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the other 3 assist grip sub-assemblies.

  66. REMOVE VISOR BRACKET COVER (for LH Side)
    1. Using a moulding remover, disengage the 4 claws and remove the visor bracket cover LH.
      GTY286163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  67. REMOVE VISOR ASSEMBLY LH
    1. Remove the 2 screws and the visor assembly LH.
      GTY273893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  68. REMOVE VISOR BRACKET COVER (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  69. REMOVE VISOR ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  70. REMOVE SLIDING ROOF OPENING TRIM MOULDING (w/ Sliding Roof)
    1. Remove the sliding roof opening trim moulding.
  71. REMOVE VISOR HOLDER
    1. Turn the visor holder approximately 45° and pull it out as shown in the illustration.
      GTY230201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws and remove the visor holder.

      HINT:

      Use the same procedure for the other visor holder.

  72. REMOVE ROOF HEADLINING ASSEMBLY (w/o Sliding Roof)
    1. w/ EC Mirror:
      1. Disconnect the inner rear view mirror connector.
    2. w/ Rain Sensor
      1. Disconnect the rain sensor connector.
    3. w/o Satellite Radio:
      1. Disengage the 3 clamps and disconnect the connector from the front pillar RH.
      2. Disconnect the connector from the rear pillar RH.
    4. w/ Satellite Radio:
      1. Disengage the 3 clamps and disconnect the 2 connectors from the front pillar RH.
      2. Disconnect the 2 connectors from the rear pillar RH.
    5. Disengage the 3 clamps and disconnect the 2 connectors from the front pillar LH.
    6. Remove the 3 clips.

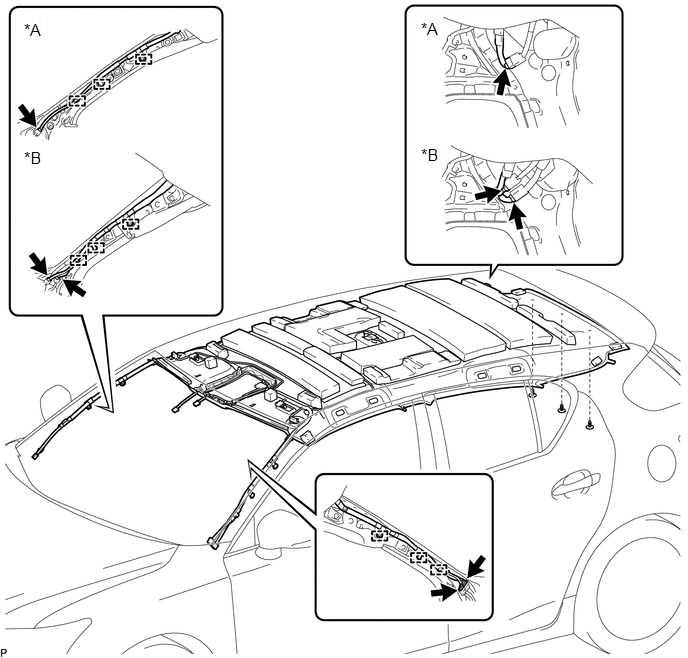

      GTY528244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *A w/o Satellite Radio *B w/ Satellite Radio
    7. Remove the roof headlining assembly from the vehicle through the back door.

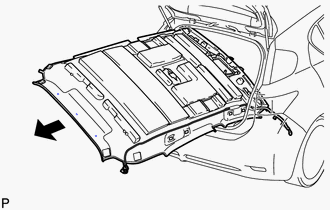

      GTY351731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not damage the roof headlining assembly or body interior.

  73. REMOVE ROOF HEADLINING ASSEMBLY (w/ Sliding Roof)
    1. w/ EC Mirror:
      1. Disconnect the inner rear view mirror connector.
    2. w/ Rain Sensor
      1. Disconnect the rain sensor connector.
    3. w/o Satellite Radio:
      1. Disengage the 3 clamps and disconnect the connector from the front pillar RH.
      2. Disconnect the connector from the rear pillar RH.
    4. w/ Satellite Radio:
      1. Disengage the 3 clamps and disconnect the 2 connectors from the front pillar RH.
      2. Disconnect the 2 connectors from the rear pillar RH.
    5. Disengage the 3 clamps and disconnect the 2 connectors from the front pillar LH.
    6. Disconnect the connector from the sliding roof drive gear assembly.
    7. Remove the 3 clips.

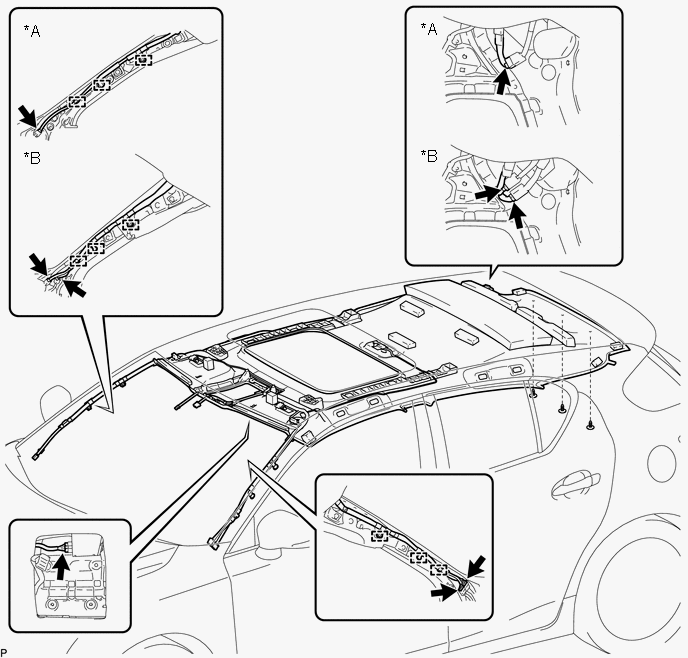

      GTY525160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *A w/o Satellite Radio *B w/ Satellite Radio
    8. Remove the roof headlining assembly from the vehicle through the back door.

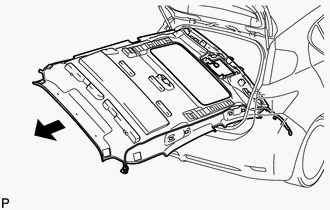

      GTY351730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not damage the roof headlining assembly or body interior.

scientia non olet · About LEMON Manuals
