Removal [08/2014 - ]: Procedure

  1. REMOVE MAP LIGHT ASSEMBLY
    1. Open the overhead console.

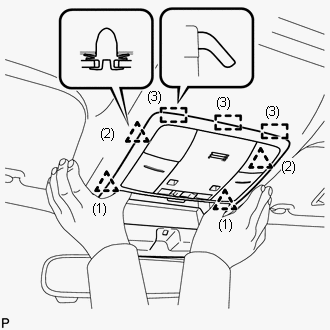

    2. Disengage the 4 clips and 3 guides as shown in the illustration.
      GTY531444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the connector and remove the map light assembly.
  2. REMOVE MAP LIGHT BULB
    1. Turn the 2 map light bulbs with the 2 map light sockets in the direction indicated by the arrows in the illustration and remove them as a unit.
      GTY351587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 map light bulbs from the 2 map light sockets.
