Removal [08/2014 - ]: Procedure

  1. REMOVE NO. 1 ROOM LIGHT ASSEMBLY

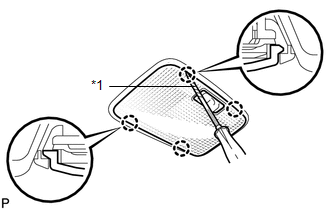

    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 4 claws and remove the No. 1 room light lens.
      GTY355990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape
    2. Using a screwdriver with its tip wrapped with protective tape, disengage the 4 claws and disconnect the No. 1 room light housing as shown in the illustration.
      GTY349332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape
    3. Disengage the 4 claws and disconnect the room light switch base from the No. 1 room light housing.
      GTY355747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Room Light Switch Base
