Removal [08/2014 - ]: Procedure

  1. REMOVE REAR SEAT HEADREST ASSEMBLY
  2. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY
  3. REMOVE REAR SEAT CUSHION ASSEMBLY

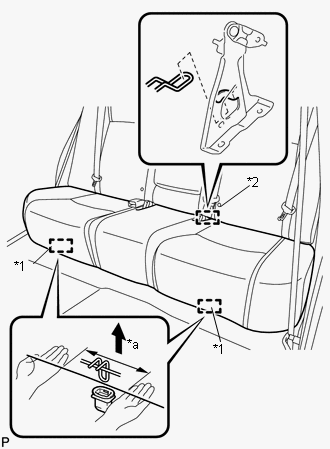

    1. Disengage the hook of the seat cushion from the vehicle body as shown in the illustration.
      NOTE:

      Follow the instructions below carefully as the cushion frame can be deformed easily.

      1. Choose a hook to disengage first. Place your hands near the hook as shown in the illustration. Then lift the seat cushion to disengage the hook.
        GTY357394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *1 Hook
        *2 Guide
        STANDARD MEASUREMENT

        *a 100 mm (3.94 in.) or less
      2. Repeat the step above for the other hook.
    2. Disengage the guide of the seat cushion from the seatback.
    3. Remove the bolt and disconnect the rear center seat outer belt assembly.
      GTY224188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Pull out the rear center seat outer belt assembly from the rear seat cushion assembly.
    5. Remove the rear seat cushion assembly.
  4. REMOVE REAR SEAT CUSHION LOCK HOOK
    1. Disengage the claw and remove the rear seat cushion lock hook.
      GTY348793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Rear seat cushion lock hooks must not be reused.

      HINT:

      Use the same procedure for the LH side and RH side.

  5. REMOVE REAR SEATBACK ASSEMBLY RH
    1. Disengage the fastener and disconnect the rear No. 1 floor board sub-assembly.
    2. Remove the 2 bolts and rear seatback assembly RH.
      GTY356620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the vehicle body.

  6. REMOVE REAR SEATBACK ASSEMBLY LH
    1. Disengage the fastener and disconnect the rear No. 2 floor board sub-assembly.
    2. Remove the 2 bolts and rear seatback assembly LH.
      GTY359390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the vehicle body.
