Removal [08/2014 - ]: Procedure

  1. REMOVE REAR DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 25

  2. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP

    Refer to PROCEDURE - Step 26

  3. REMOVE REAR SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 3

  4. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 4

  5. REMOVE REAR SEATBACK ASSEMBLY LH (for LH Side)

    Refer to PROCEDURE - Step 6

  6. REMOVE REAR SEATBACK ASSEMBLY RH (for RH Side)

    Refer to PROCEDURE - Step 5

  7. REMOVE REAR NO. 2 FLOOR BOARD

    Refer to PROCEDURE - Step 1

  8. REMOVE REAR DECK FLOOR BOX

    Refer to PROCEDURE - Step 2

  9. REMOVE REAR NO. 3 FLOOR BOARD

    Refer to PROCEDURE - Step 3

  10. REMOVE DECK FLOOR BOX RH

    Refer to PROCEDURE - Step 4

  11. REMOVE REAR FLOOR BOARD UPPER NO. 3 PLATE (for RH Side)

    Refer to PROCEDURE - Step 5

  12. REMOVE REAR NO. 4 FLOOR BOARD (w/o Woofer)

    Refer to PROCEDURE - Step 10

  13. REMOVE REAR NO. 4 FLOOR BOARD (w/ Woofer)

    Refer to PROCEDURE - Step 11

  14. REMOVE DECK FLOOR BOX LH (w/o Woofer)

    Refer to PROCEDURE - Step 12

  15. REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

    Refer to PROCEDURE - Step 13

  16. REMOVE REAR NO. 1 FLOOR BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 14

  17. REMOVE REAR NO. 2 FLOOR BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 15

  18. REMOVE REAR NO. 1 FLOOR BOARD

    Refer to PROCEDURE - Step 16

  19. REMOVE DECK TRIM SERVICE HOLE COVER

    Refer to PROCEDURE - Step 17

  20. REMOVE REAR DECK TRIM COVER

    Refer to PROCEDURE - Step 18

  21. REMOVE REAR SEAT SIDE COVER RH (for RH Side)

    Refer to PROCEDURE - Step 49

  22. REMOVE REAR SEAT SIDE GARNISH

    Refer to PROCEDURE - Step 41

  23. REMOVE ROPE HOOK ASSEMBLY

    Refer to PROCEDURE - Step 42

  24. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY

    Refer to PROCEDURE - Step 43

  25. REMOVE TONNEAU COVER HOOK

    Refer to PROCEDURE - Step 44

  26. REMOVE TONNEAU COVER HOLDER CAP

    Refer to PROCEDURE - Step 45

  27. REMOVE NO. 2 ROOM LIGHT ASSEMBLY (for RH Side)

    Refer to PROCEDURE - Step 1

  28. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY
    1. Remove the bolt and disconnect the floor end of the rear seat outer belt assembly.
      GTY351851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE DECK TRIM SIDE PANEL ASSEMBLY

    Refer to PROCEDURE - Step 47

  30. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY

    Refer to PROCEDURE - Step 48

  31. REMOVE REAR SEAT OUTER BELT ASSEMBLY

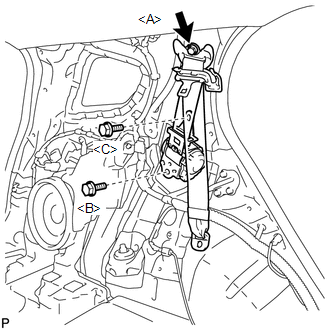

    1. Loosen the bolt <A> and disconnect the shoulder anchor of the rear seat outer belt assembly.
      GTY522479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt <B>, bolt <C> and rear seat outer belt assembly.
