Removal [04/2013 - 10/2016]: Procedure
- PRECAUTION
Refer to PRECAUTION [04/2013 - 09/2020]
NOTE:After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.
Refer to PRECAUTION [04/2013 - 08/2015] , or refer to PRECAUTION [08/2015 - 10/2016]
- ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
- CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM (for Power Tilt and Power Telescopic Steering Column)
Refer to PROCEDURE - Step 2 [04/2013 - 08/2015] , or refer to PROCEDURE - Step 2 [08/2015 - 10/2016]
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [04/2013 - 06/2014] , or refer to INITIALIZATION [06/2014 - 08/2015] , or refer to INITIALIZATION [08/2015 - 10/2016]
- REMOVE CONSOLE BOX ASSEMBLY
Refer to REMOVAL [04/2013 - 10/2016]
- REMOVE FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 8 [04/2013 - 08/2015] , or refer to PROCEDURE - Step 7 [08/2015 - 10/2016]
- REMOVE FRONT DOOR OPENING TRIM COVER LH
Refer to PROCEDURE - Step 9 [04/2013 - 08/2015] , or refer to PROCEDURE - Step 8 [08/2015 - 10/2016]

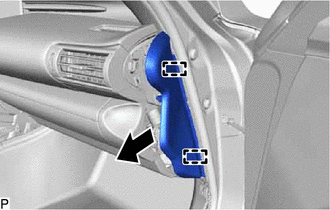

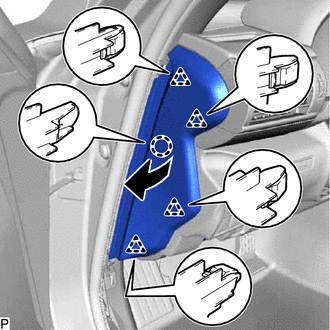

- REMOVE INSTRUMENT SIDE PANEL LH

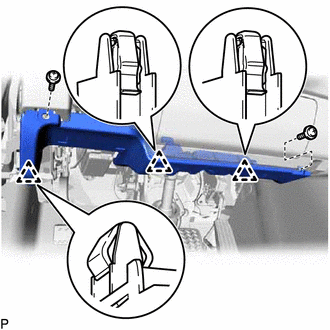

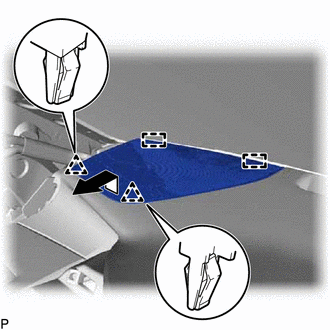

- REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

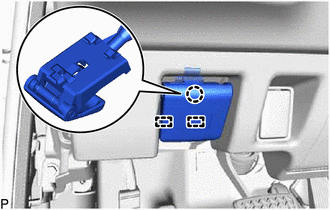

- DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

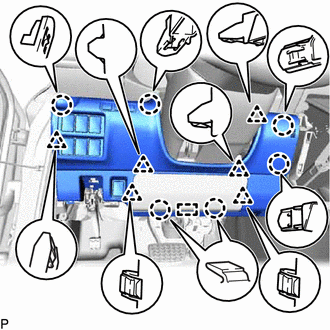

- REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
- REMOVE SKID CONTROL BUZZER ASSEMBLY (w/ Pre-collision System)
Refer to PROCEDURE - Step 4
- REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to PROCEDURE - Step 10

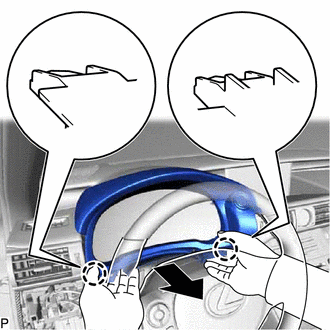

- REMOVE METER HOOD SUB-ASSEMBLY
- REMOVE COMBINATION METER ASSEMBLY
Refer to PROCEDURE - Step 8
- REMOVE DCM (TELEMATICS TRANSCEIVER) WITH BRACKET (w/ Safety Connect System)
Refer to PROCEDURE - Step 2

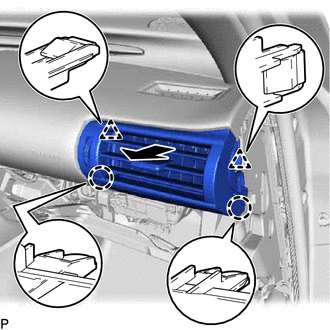

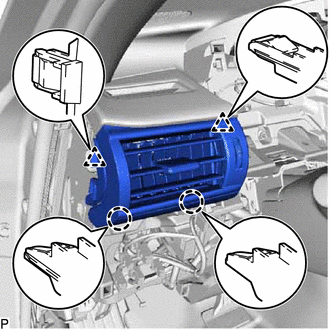

- REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
- REMOVE HORN BUTTON ASSEMBLY
Refer to REMOVAL [04/2013 - ]
- REMOVE STEERING WHEEL ASSEMBLY
Refer to PROCEDURE - Step 3
- REMOVE FRONT DOOR SCUFF PLATE RH
HINT:
Use the same procedure as for the LH side.
- REMOVE FRONT DOOR OPENING TRIM COVER RH
HINT:
Use the same procedure as for the LH side.

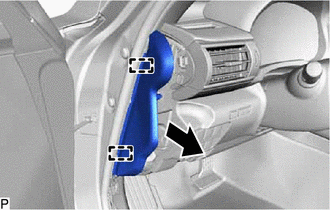

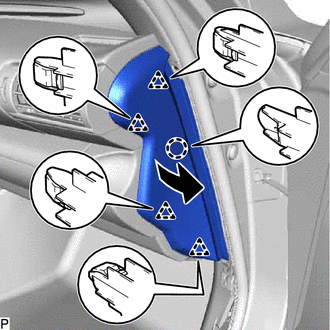

- REMOVE INSTRUMENT SIDE PANEL RH
- REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

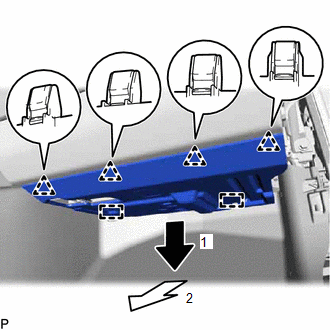

- Disengage the 4 clips and 2 guides as indicated by the arrows, in the order shown in the illustration.
- Disconnect each connector to remove the No. 2 instrument panel under cover sub-assembly.

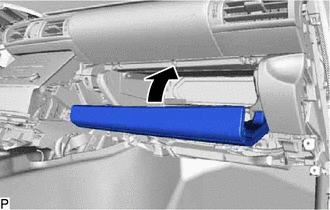

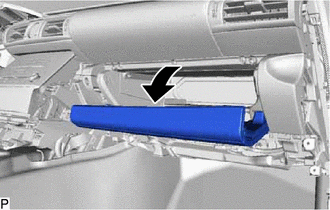

- REMOVE LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to PROCEDURE - Step 7

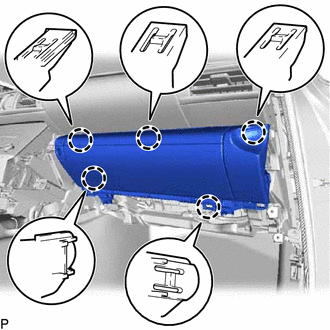

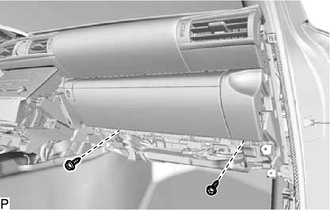

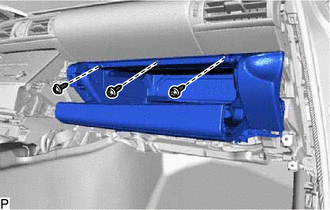

- REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

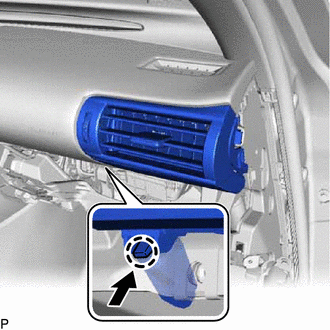

- REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
- REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET
Refer to PROCEDURE - Step 9
- REMOVE AIR CONDITIONING CONTROL ASSEMBLY
Refer to PROCEDURE - Step 2

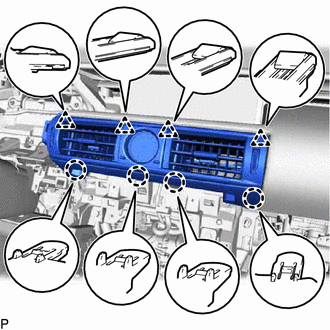

- REMOVE CENTER INSTRUMENT PANEL REGISTER ASSEMBLY
- REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
- REMOVE MULTI-DISPLAY ASSEMBLY WITH BRACKET
Refer to PROCEDURE - Step 9
- REMOVE FRONT PILLAR GARNISH LH
Refer to PROCEDURE - Step 10 [04/2013 - 08/2015] , or refer to PROCEDURE - Step 9 [08/2015 - 10/2016]

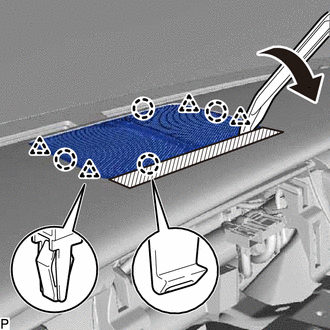

- REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
- REMOVE FRONT NO. 2 SPEAKER ASSEMBLY (for LH Side)
Refer to PROCEDURE - Step 5

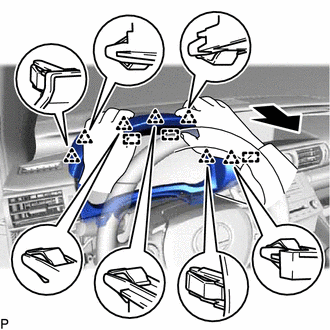

- REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
- REMOVE FRONT NO. 3 SPEAKER ASSEMBLY
Refer to PROCEDURE - Step 7
- REMOVE FRONT PILLAR GARNISH RH
HINT:
Use the same procedure as for the LH side.

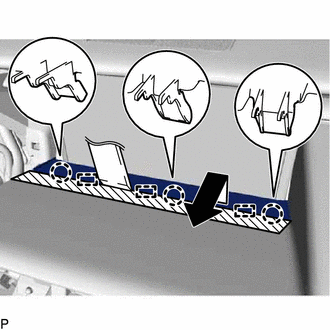

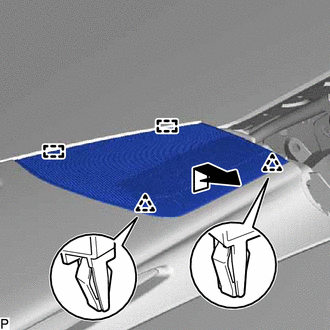

- REMOVE NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
- REMOVE FRONT NO. 2 SPEAKER ASSEMBLY (for RH Side)
HINT:
Use the same procedure as for the LH side.

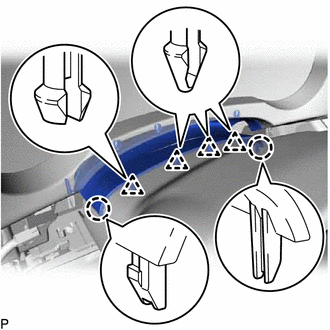

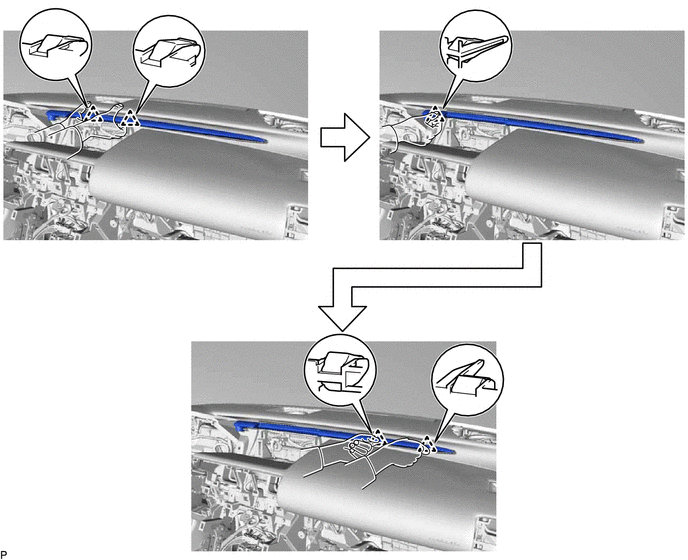

- REMOVE INSTRUMENT CLUSTER FINISH PANEL ORNAMENT
- DISCONNECT NO. 2 INSTRUMENT PANEL WIRE
Refer to PROCEDURE - Step 3

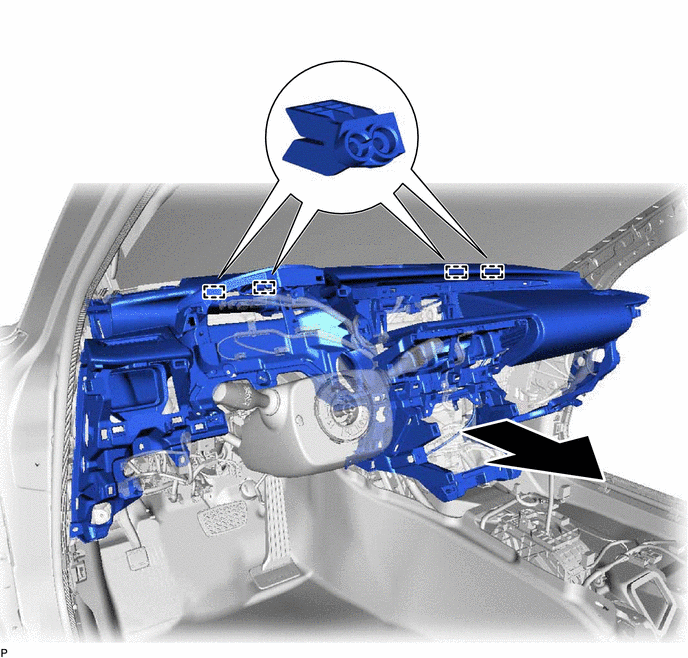

- REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
- Disengage the 2 claws to disconnect the room temperature sensor.
*1 Room Temperature Sensor - - - Disconnect each connector.
- Disengage each clamp.

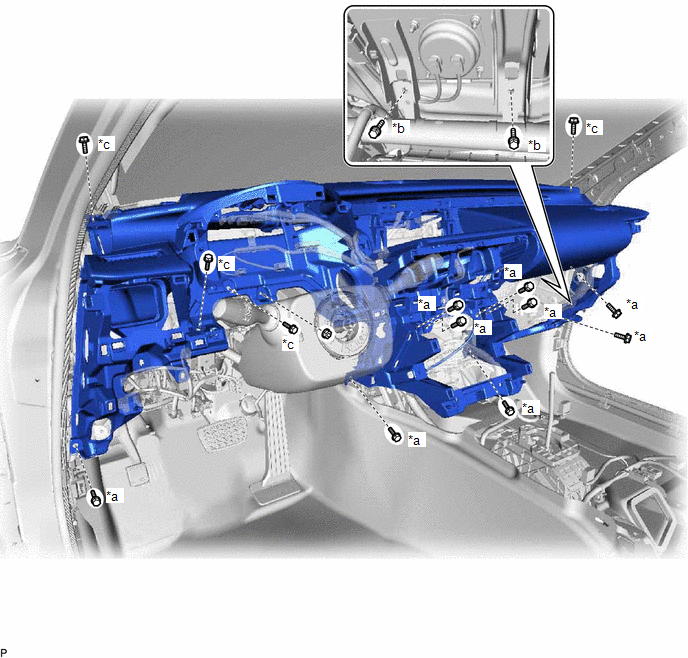

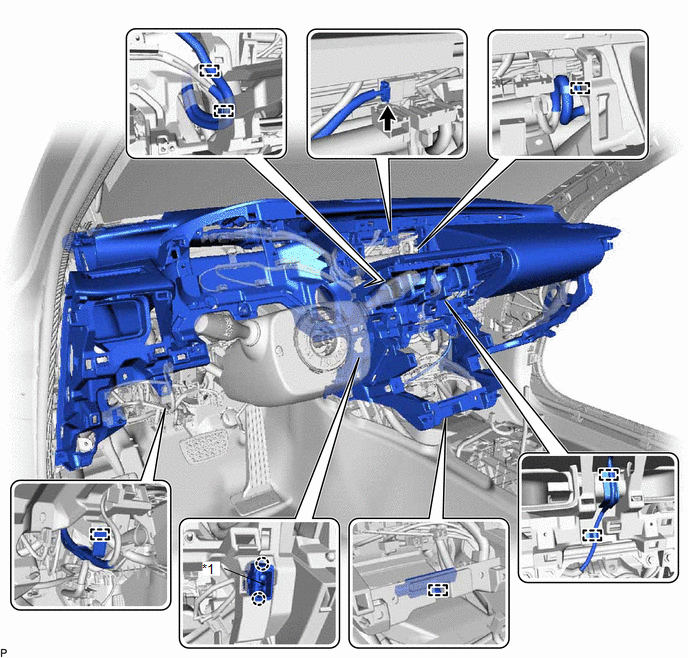

- Remove the 9 bolts<A>, 2 bolts<B>, 4 bolts<F> and nut<E>.
*a Bolt<A> *b Bolt<B> *c Bolt<F> - - - Disengage the 4 guides and remove the instrument panel safety pad sub-assembly as shown in the illustration.NOTE:
- Do not damage the instrument panel safety pad sub-assembly.
- Do not allow the wire harnesses to interfere with the surrounding parts.
- Disengage the 2 claws to disconnect the room temperature sensor.
