Removal [04/2013 - ]: Procedure

REMOVE FRONT DOOR SCUFF PLATE LH (for Side)
Refer to PROCEDURE - Step 8 [04/2013 - 08/2015] , or refer to PROCEDURE - Step 7 [08/2015 - 10/2016] , or refer to PROCEDURE - Step 7 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 7 [09/2020 - ]
REMOVE FRONT DOOR OPENING TRIM COVER LH (for Side)
Refer to PROCEDURE - Step 9 [04/2013 - 08/2015] , or refer to PROCEDURE - Step 8 [08/2015 - 10/2016] , or refer to PROCEDURE - Step 8 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 8 [09/2020 - ]
REMOVE FRONT PILLAR GARNISH LH (for Side)
Refer to PROCEDURE - Step 10 [04/2013 - 08/2015] , or refer to PROCEDURE - Step 9 [08/2015 - 10/2016] , or refer to PROCEDURE - Step 9 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 9 [09/2020 - ]
REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY (for Side)
Refer to PROCEDURE - Step 33 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 34 [10/2016 - 10/2017] , or refer to PROCEDURE - Step 34 [10/2017 - 09/2020] , or refer to PROCEDURE - Step 35 [09/2020 - ]

REMOVE FRONT NO. 2 SPEAKER ASSEMBLY (for Side)

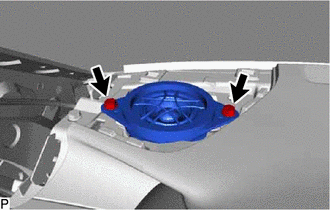

Remove the 2 screws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Lift the front No. 2 speaker assembly and disconnect the connector to remove it.
NOTE:
Do not touch the speaker cone.

REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Center)
Refer to PROCEDURE - Step 35 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 36 [10/2016 - 10/2017] , or refer to PROCEDURE - Step 36 [10/2017 - 09/2020] , or refer to PROCEDURE - Step 37 [09/2020 - ]

REMOVE FRONT NO. 3 SPEAKER ASSEMBLY (for Center)

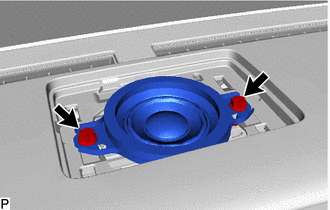

Remove the 2 screws.

Lift the front No. 3 speaker assembly and disconnect the connector to remove it.
NOTE:
Do not touch the speaker cone.
