Removal [04/2013 - ]: Procedure

  1. REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET

    Refer to REMOVAL [04/2013 - 09/2020] , or refer to REMOVAL [09/2020 - ]

  2. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

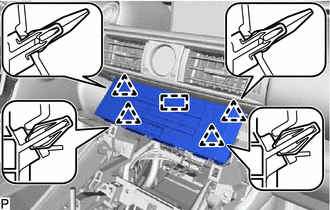

    1. Disengage the 4 clips and guide.
      GTY464976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the air conditioning control assembly.
