Parking Brake Pedal: Removal

  1. PRECAUTION
    CAUTION: Be sure to read the "PRECAUTION " thoroughly before servicing (See PRECAUTION ).
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.
  3. REMOVE FRONT SEAT ASSEMBLY (for Power Seat) (See Step 6 in  REMOVAL  )
  4. REMOVE FRONT SEAT ASSEMBLY (for Manual Seat) (See Step 7 in  REMOVAL  )
  5. REMOVE REAR SEAT CUSHION ASSEMBLY (See  REMOVAL  )
  6. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY (See Step 3 in  REMOVAL  )
  7. REMOVE FRONT DOOR SCUFF PLATE LH (See Step 50 or 52 in  REMOVAL  )
  8. REMOVE REAR DOOR SCUFF PLATE LH (See Step 103 in  REMOVAL  )
  9. REMOVE CENTER LOWER PILLAR GARNISH LH (See Step 108 in  REMOVAL  )
  10. REMOVE FRONT DOOR OPENING TRIM COVER LH (See Step 27 in  REMOVAL  )
  11. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (See Step 5 in  REMOVAL  )
  12. REMOVE NO. 1 UPPER CONSOLE PANEL GARNISH (See Step 6 in  REMOVAL  )
  13. REMOVE NO. 2 UPPER CONSOLE PANEL GARNISH (See Step 7 in  REMOVAL  )
  14. REMOVE CONSOLE PANEL SUB-ASSEMBLY (See Step 8 in  REMOVAL  )
  15. REMOVE FRONT ASH RECEPTACLE ASSEMBLY (See Step 11 in  REMOVAL  )
  16. REMOVE CONSOLE BOX REGISTER ASSEMBLY (See Step 12 in  REMOVAL  )
  17. REMOVE CONSOLE BOX (See Step 13 in  REMOVAL  )
  18. REMOVE SIDE INSTRUMENT PANEL LH (See Step 28 in  REMOVAL  )
  19. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See Step 29 in  REMOVAL  )
  20. REMOVE LOWER INSTRUMENT FINISH PANEL SUB-ASSEMBLY (See Step 30 in  REMOVAL  )
  21. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY (See Step 9 in  REMOVAL  )
  22. REMOVE ACCELERATOR PEDAL (for 2WD)

    HINT:

    (See REMOVAL ).

  23. REMOVE FRONT FLOOR SILENCER PAD (for 2WD)

    Remove the front floor silencer pad.

  24. REMOVE NO. 2 REAR AIR DUCT (See Step 11 or 12 in  REMOVAL  )
  25. REMOVE FRONT PROPELLER SHAFT ASSEMBLY (for 4WD)

    HINT:

    (See REMOVAL ).

  26. REMOVE PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY (for 4GR-FSE)

    HINT:

    Refer to the procedures up to "REMOVE PROPELLER SHAFT ASSEMBLY" (See DISASSEMBLY ).

  27. REMOVE NO. 3 DASH PANEL INSULATOR PAD

    Remove the No. 3 dash panel insulator pad.

  28. REMOVE CENTER AIRBAG SENSOR ASSEMBLY (See Step 14 in  REMOVAL  )
  29. REMOVE FRONT UPPER FLOOR REAR SUB PANEL
    1. Turn back the floor carpet in order to remove the front floor rear upper sub panel.
    2. Disengage the 6 clamps.
    3. Remove the 4 bolts and front floor rear upper sub panel.
    Fig 1: Locating Clamps & Retaining Bolts
    G04025413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE PARKING BRAKE PEDAL ASSEMBLY (for 2WD)
    1. Remove the parking brake return with damper spring.
      Fig 2: Identifying Parking Brake Return With Damper Spring
      G04052410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and separate the 2 No. 2 parking brake cable assemblies from the parking brake equalizer.
      Fig 3: Installing Parking Brake Cable Assemblies
      G04052409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Slide the rubber boot as shown in Fig 4 .
      Fig 4: Sliding Rubber Boot
      G04047880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the parking brake equalizer from the No. 1 parking brake cable assembly.
      Fig 5: Installing Parking Brake Equalizer To No. 1 Parking Brake Cable Assembly
      G04047901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the 2 bolts and 3 nuts, and separate the No. 1 parking brake cable assembly from the body.

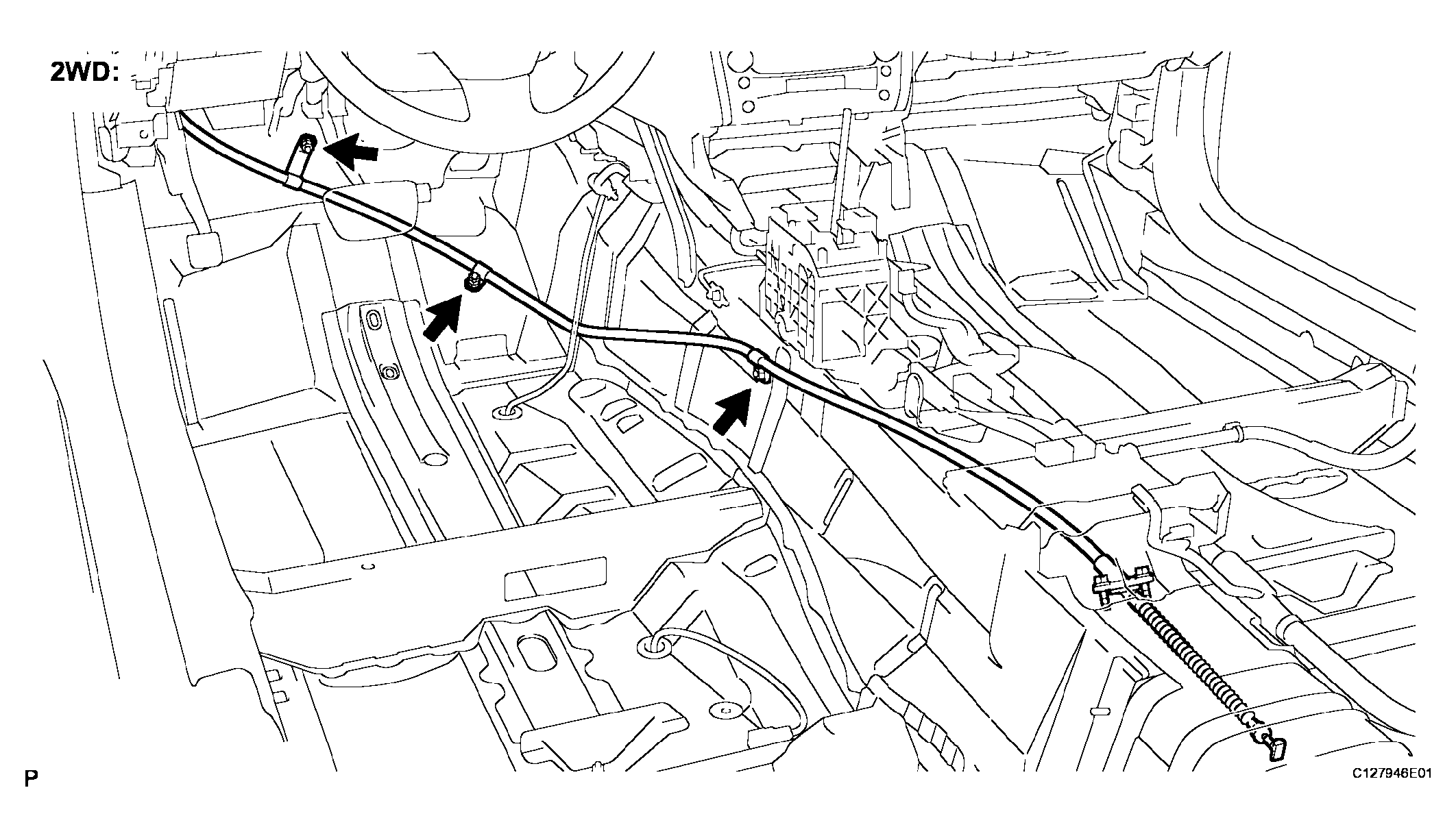

      Fig 6: Separating No 1 Parking Brake Cable Assembly From Body
      G04047882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the 2 nuts and separate the instrument panel junction block assembly.

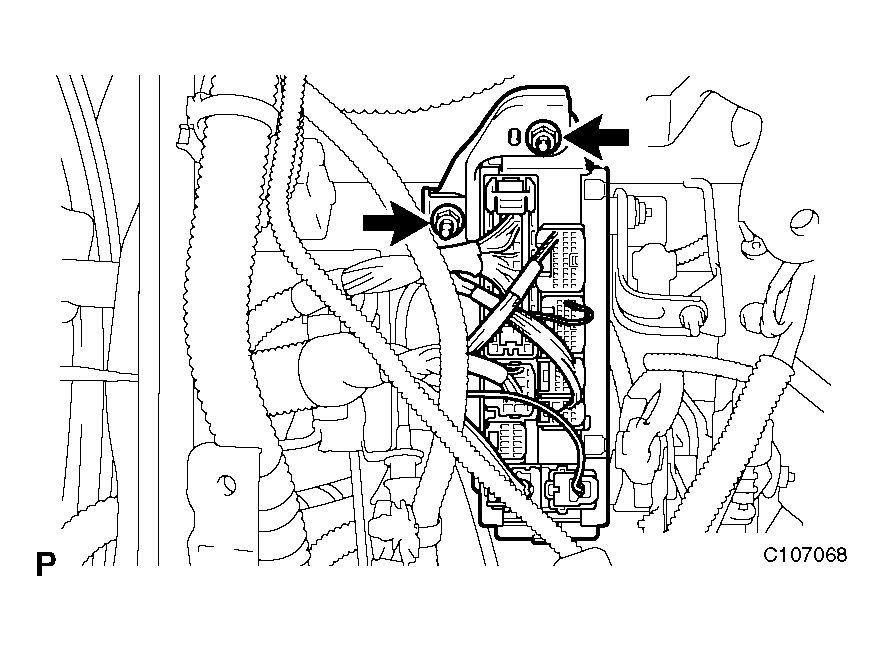

      Fig 7: Locating Instrument Panel Junction Block Assembly Retaining Nuts
      G04030069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Disconnect the parking brake switch connector.
    8. Remove the 3 nuts and parking brake pedal from the body.
      Fig 8: Removing Nuts & Parking Brake Pedal From Body
      G04047884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Pull up the parking brake pedal claw.
    10. Remove the lock nut and No. 1 wire adjusting nut of the No. 1 parking brake cable assembly from the parking brake pedal.
    11. Remove the clip and No. 1 parking brake cable assembly from the parking brake pedal.
    Fig 9: Pulling Parking Brake Pedal Claw
    G04047885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE PARKING BRAKE PEDAL ASSEMBLY (for 4WD)
    1. Remove the parking brake return with damper spring.
      Fig 10: Identifying Parking Brake Return With Damper Spring
      G04052410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and separate the 2 No. 2 parking brake cable assemblies from the parking brake equalizer.
      Fig 11: Installing Parking Brake Cable Assemblies
      G04052409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Slide the rubber boot as shown in Fig 12 .
      Fig 12: Sliding Rubber Boot
      G04047888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the parking brake equalizer from the No. 1 parking brake cable assembly.
      Fig 13: Installing Parking Brake Equalizer To No. 1 Parking Brake Cable Assembly
      G04047901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the 2 bolts and 3 nuts, and separate the No. 1 parking brake cable assembly from the body.

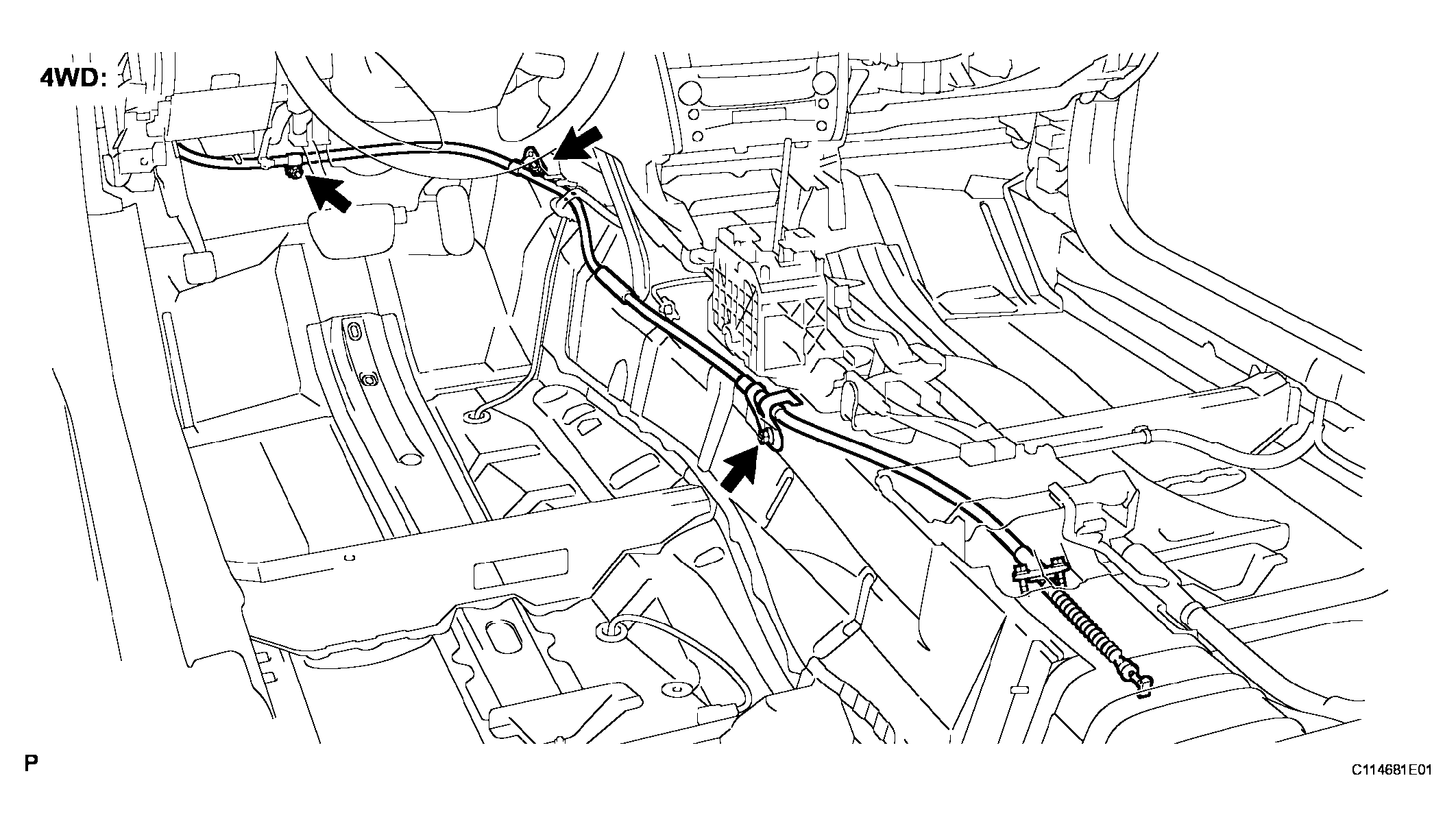

      Fig 14: Separating No. 1 Parking Brake Cable Assembly From Body
      G04047890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the 2 nuts and separate the instrument panel junction block assembly.
      Fig 15: Locating Instrument Panel Junction Block Assembly Retaining Nuts
      G04030069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Disconnect the parking brake switch connector.
    8. Remove the 3 nuts and parking brake pedal from the body.
      Fig 16: Removing Nuts & Parking Brake Pedal From Body
      G04047892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Pull up the parking brake pedal claw.
    10. Remove the lock nut and No. 1 wire adjusting nut of the No. 1 parking brake cable assembly from the parking brake pedal.
    11. Remove the clip and No. 1 parking brake cable assembly from the parking brake pedal.
    Fig 17: Pulling Parking Brake Pedal Claw
    G04047893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE PARKING PEDAL PAD
    1. Disengage the claw and remove the perking pedal pad from the parking brake pedal.
    Fig 18: Removing Perking Pedal Pad From Parking Brake Pedal
    G04047894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
