REAR PROPELLER SHAFT ASSEMBLY (for 4GR-FSE): Disassembly

Hold the intermediate shaft assembly in a vise between aluminum plates.
NOTE: Do not overtighten the vise.

Fig 2: Removing Propeller Shaft Assembly Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Using a chisel and a hammer, release the staked part of the nut.
NOTE: Release the staked part of the nut completely, otherwise the threads of the intermediate shaft may be damaged.

Fig 3: Releasing Staked Part Of Nut Using Chisel
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Using SST to hold the universal joint flange, remove the nut and intermediate shaft washer.
SST 09330-00021

Fig 4: Removing Nut And Intermediate Shaft Washer Using SST
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Put matchmarks on the intermediate shaft assembly and universal joint flange.

Fig 5: Identifying Matchmarks On Intermediate Shaft Assembly & Universal Joint Flange
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Using SST, remove the universal joint flange from the intermediate shaft assembly.
SST 09950-00020, 09950-00030, 09330-00021

NOTE: Apply grease to the threads and tip of the SST center bolt before use.

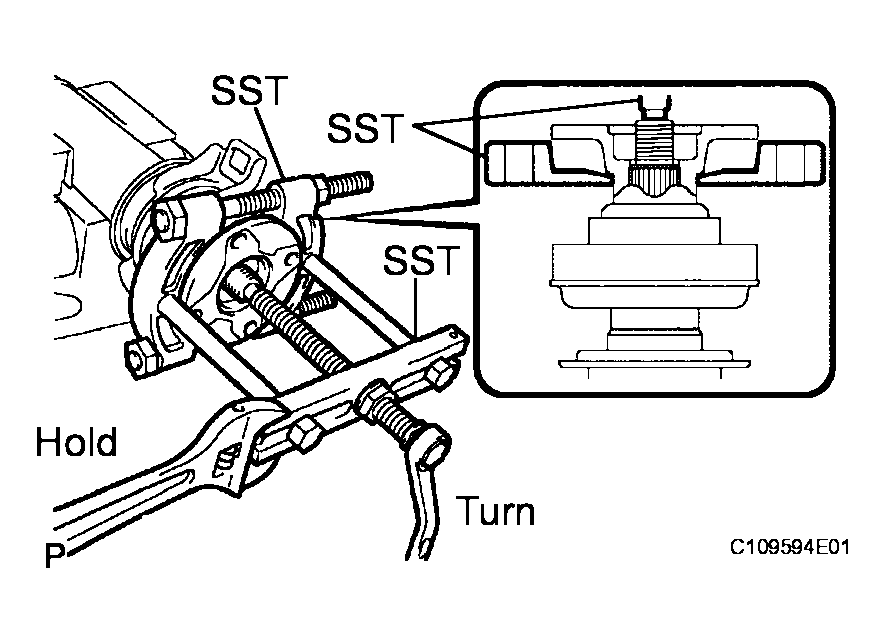

Fig 6: Removing Universal Joint Flange From Intermediate Shaft Assembly Using SST
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove the No. 1 center support bearing assembly and 2 center support bearing washers from the intermediate shaft assembly.
