Front Seat Outer Belt Assembly With PRETENSIONER: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment. (See PRECAUTION )
REMOVE LAP BELT OUTER ANCHOR COVER
1. Disengage the 3 claws and remove the lap belt outer anchor cover.
Fig 1: Removing Lap Belt Outer Anchor Cover And Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY
1. Remove the bolt and disconnect the floor end of the front seat outer belt assembly.
Fig 2: Disconnecting Front Seat Outer Belt Assembly Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT DOOR SCUFF PLATE (w/o Illumination) (See Step 50 in REMOVAL )
REMOVE FRONT DOOR SCUFF PLATE LH (w/ Illumination) (See Step 52 in REMOVAL )
REMOVE REAR DOOR SCUFF PLATE (See Step 103 in REMOVAL )
REMOVE LOWER CENTER PILLAR GARNISH (See Step 108 in REMOVAL )
REMOVE CENTER PILLAR GARNISH (See Step 110 in REMOVAL )
REMOVE FRONT SEAT OUTER BELT ASSEMBLY
1. Remove the nut and disconnect the shoulder anchor of the front seat outer belt assembly.

  Fig 3: Removing Front Seat Outer Belt Assembly Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

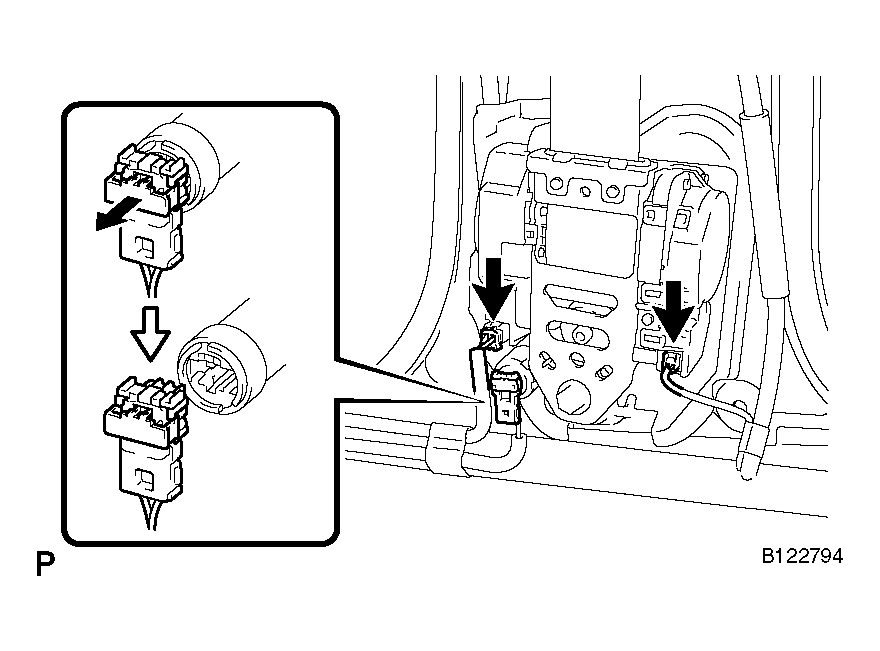

2. Using a screwdriver, pull out the locking button in the direction shown by the arrow to release the lock, and disconnect the pretensioner connector.
  HINT:

  Tape the screwdriver tip before use.

  Fig 4: Removing Locking Button
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the connectors.
4. Remove the 2 bolts and the front seat outer belt assembly.
Fig 5: Removing Front Seat Outer Belt Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
