Parking Brake Lever: Removal

  1. PRECAUTION
    CAUTION: Be sure to read the "PRECAUTION " thoroughly before servicing (See AIRBAG SYSTEM .
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.
  3. REMOVE FRONT SEAT ASSEMBLY (for Power Seat)

    HINT:

    (See Step 6 in REMOVAL )

  4. REMOVE FRONT SEAT ASSEMBLY (for Manual Seat)

    HINT:

    (See Step 7 in REMOVAL )

  5. REMOVE REAR SEAT CUSHION ASSEMBLY (See  REMOVAL  )
  6. REMOVE FRONT SEAT OUTER BELT ASSEMBLY

    REMOVAL

  7. REMOVE FRONT DOOR SCUFF PLATE LH (See Step 50 or 52 in  REMOVAL  )
  8. REMOVE REAR DOOR SCUFF PLATE LH (See Step 103 in  REMOVAL  )
  9. REMOVE CENTER PILLAR GARNISH LOWER LH (See Step 108 in  REMOVAL  )
  10. REMOVE FRONT DOOR OPENING TRIM COVER LH (See Step 54 in  REMOVAL  )
  11. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (See Step 5 in  REMOVAL  )
  12. REMOVE REAR CONSOLE PANEL SUB-ASSEMBLY (See Step 9 in  REMOVAL  )
  13. REMOVE FRONT CONSOLE PANEL SUB-ASSEMBLY (See Step 10 in  REMOVAL  )
  14. REMOVE FRONT ASH RECEPTACLE SUB-ASSEMBLY (See Step 11 in  REMOVAL  )
  15. REMOVE CONSOLE BOX REGISTER ASSEMBLY (See Step 12 in  REMOVAL  )
  16. REMOVE CONSOLE BOX (See Step 13 in  REMOVAL  )
  17. REMOVE CENTER AIRBAG SENSOR ASSEMBLY (See Step 14 in  REMOVAL  )
  18. REMOVE FRONT FLOOR REAR UPPER SUB PANEL SUB-ASSEMBLY
    1. Turn back the floor carpet in order to remove the front floor rear upper sub panel.
    2. Disengage the 6 clamps.
    3. Remove the 4 bolts and front floor rear upper sub panel.
    Fig 1: Locating Clamps & Retaining Bolts
    G04025413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE FLOOR PANEL BRACE REAR NO.1 (See  REMOVAL  )
  20. REMOVE FRONT CENTER FLOOR BRACE (See  REMOVAL  )
  21. DISCONNECT OXYGEN SENSOR (See  REMOVAL  )
  22. REMOVE FRONT EXHAUST PIPE ASSEMBLY (See  REMOVAL  )
  23. REMOVE AIR GUIDE PLATE OUTSIDE RH (See Step 3 in  REMOVAL  )
  24. REMOVE PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY (See Step 4 in  REMOVAL  )
  25. REMOVE PARKING BRAKE LEVER SUB-ASSEMBLY
    1. Using needle-nose pliers, remove the parking brake return with damper spring.
      Fig 2: Identifying Parking Brake Return With Damper Spring
      G04052410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and separate the 2 No. 2 parking brake cable assemblies from the parking brake equalizer.
      Fig 3: Installing Parking Brake Cable Assemblies
      G04052409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Slide the rubber boot as shown in Fig 4 .
      Fig 4: Sliding Rubber Boot
      G04047852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the parking brake equalizer from the No. 1 parking brake cable assembly.
      Fig 5: Installing Parking Brake Equalizer To No. 1 Parking Brake Cable Assembly
      G04047901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

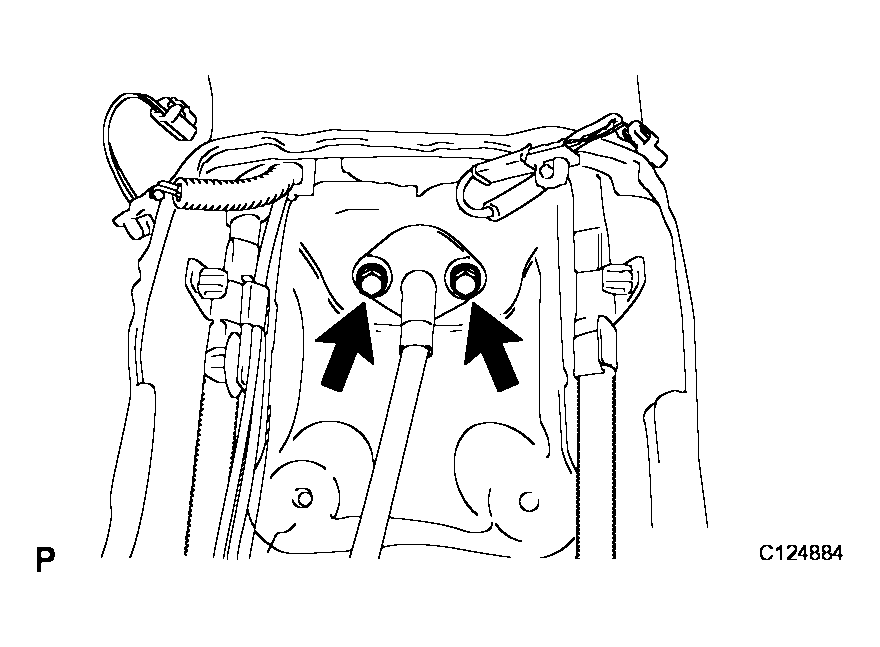

    5. Remove the 2 bolts and separate the No.1 parking brake cable assembly.
      Fig 6: Removing Bolts
      G04047854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

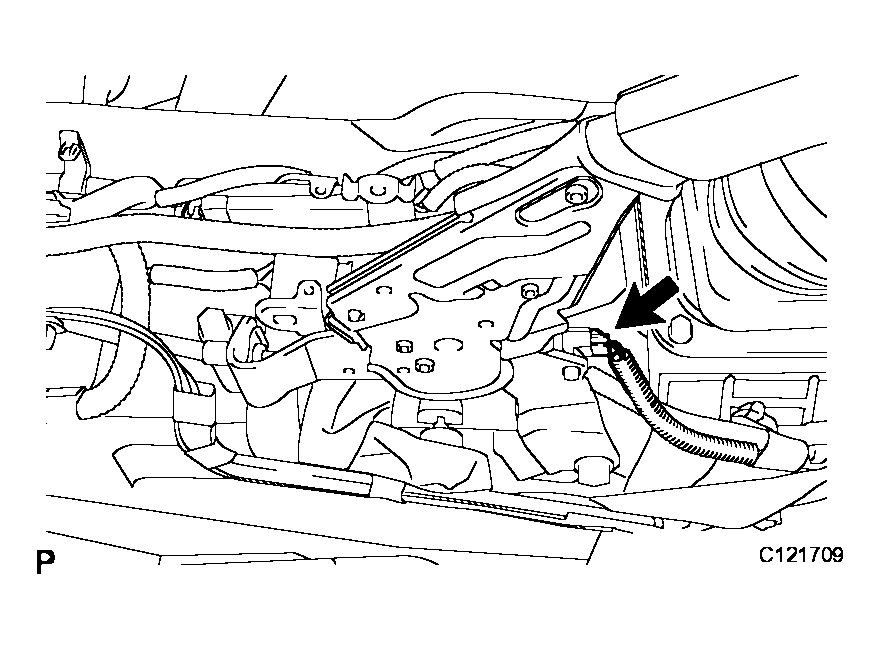

    6. Disconnect the parking brake switch connector.
      Fig 7: Disconnecting Parking Brake Switch Connector
      G04047855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

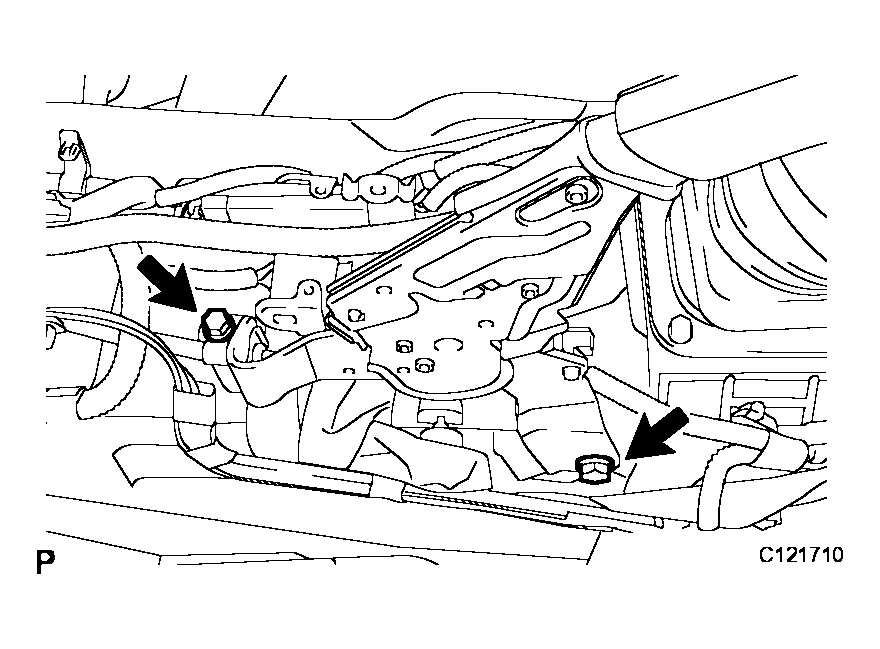

    7. Remove the 2 bolts and parking brake lever.
      Fig 8: Removing Bolts & Parking Brake Lever
      G04047856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Pull up the parking brake lever claw.
    9. Remove the lock nut and No. 1 wire adjusting nut of the No. 1 parking brake cable assembly from the parking brake lever.
    10. Remove the clip and No. 1 parking brake cable assembly from the parking brake lever.
    Fig 9: Pulling Up Parking Brake Lever Claw
    G04047857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
