Radio Antenna Cord: Removal

  1. PRECAUTION

    (see PRECAUTION )

  2. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment (See AIRBAG SYSTEM ).
  4. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission) (See  REMOVAL  )
  5. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission) (See  REMOVAL  )
  6. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission) (See  REMOVAL  )
  7. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission) (See  REMOVAL  )
  8. REMOVE CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission) (See  REMOVAL  )
  9. REMOVE REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) (See  REMOVAL  )
  10. REMOVE FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) (See  REMOVAL  )
  11. REMOVE FRONT ASH RECEPTACLE SUB-ASSEMBLY (See  REMOVAL  )
  12. REMOVE CONSOLE BOX REGISTER ASSEMBLY (See  REMOVAL  )
  13. REMOVE CONSOLE BOX (See  REMOVAL  )
  14. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY (See  REMOVAL  )
  15. REMOVE CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL (See  REMOVAL  )
  16. REMOVE MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System) (See appropriate step under  REMOVAL   )
  17. REMOVE INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System) (See appropriate step under  REMOVAL   )
  18. REMOVE LOWER NO. 2 STEERING WHEEL COVER (See  REMOVAL  )
  19. REMOVE LOWER NO. 3 STEERING WHEEL COVER (See  REMOVAL  )
  20. REMOVE STEERING PAD (See  REMOVAL  )
  21. REMOVE STEERING WHEEL ASSEMBLY (See  REMOVAL  )
  22. REMOVE STEERING COLUMN COVER (for Power Tilt and Power Telescopic) (See  REMOVAL  )
  23. REMOVE STEERING COLUMN COVER (for Manual Tilt and Telescopic) (See  REMOVAL  )
  24. REMOVE TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY (See  REMOVAL  )
  25. REMOVE FRONT DOOR SCUFF PLATE LH (w/o Illumination) (See  REMOVAL  )
  26. REMOVE FRONT DOOR SCUFF PLATE LH (w/ Illumination) (See  REMOVAL  )
  27. REMOVE FRONT DOOR OPENING TRIM COVER LH (See  REMOVAL  )
  28. REMOVE SIDE INSTRUMENT PANEL LH (See  REMOVAL  )
  29. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See  REMOVAL  )
  30. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (See  REMOVAL  )
  31. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY (See  REMOVAL  )
  32. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (See  REMOVAL  )
  33. REMOVE COMBINATION METER ASSEMBLY (See  REMOVAL  )
  34. REMOVE FRONT DOOR SCUFF PLATE RH (w/o Illumination)
  35. REMOVE FRONT DOOR SCUFF PLATE RH (w/ Illumination)
  36. REMOVE FRONT DOOR OPENING TRIM COVER RH (See  REMOVAL  )
  37. REMOVE SIDE INSTRUMENT PANEL RH (See  REMOVAL  )
  38. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See  REMOVAL  )
  39. REMOVE FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY (See  REMOVAL  )
  40. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY (See  REMOVAL  )
  41. REMOVE FRONT PILLAR GARNISH LH (See  REMOVAL  )
  42. REMOVE FRONT PILLAR GARNISH RH (See  REMOVAL  )
  43. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY (See  REMOVAL  )
  44. REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY (See  REMOVAL  )
  45. REMOVE NO. 3 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY (See  REMOVAL  )
  46. REMOVE FRONT STEREO COMPONENT SPEAKER ASSEMBLY (See  REMOVAL   )
  47. REMOVE NO. 2 CONSOLE BOX DUCT (for Automatic Transmission) (See  REMOVAL  )
  48. REMOVE NO. 1 CONSOLE BOX DUCT (for Automatic Transmission) (See  REMOVAL  )
  49. REMOVE NO. 2 CONSOLE BOX DUCT (for Manual Transmission) (See  REMOVAL  )
  50. DISCONNECT PASSENGER AIRBAG CONNECTOR
  51. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY (See  REMOVAL  )
  52. REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY
    1. Disengage the clamp and remove the No. 2 antenna cord sub-assembly.
  53. REMOVE REAR SEAT CUSHION ASSEMBLY (See  REMOVAL  )
  54. REMOVE REAR SEAT HEADREST ASSEMBLY
  55. REMOVE REAR CENTER SEAT HEADREST ASSEMBLY
  56. REMOVE REAR SEATBACK ASSEMBLY (See  REMOVAL  )
  57. REMOVE REAR DOOR SCUFF PLATE

    HINT:

    Removal procedure of the RH side is the same as that of the LH side (See REMOVAL ).

  58. REMOVE REAR SEAT SIDE GARNISH

    HINT:

    Removal procedure of the RH side is the same as that of the LH side (See REMOVAL ).

  59. REMOVE ROOF SIDE INNER GARNISH

    HINT:

    Removal procedure of the RH side is the same as that of the LH side (See REMOVAL ).

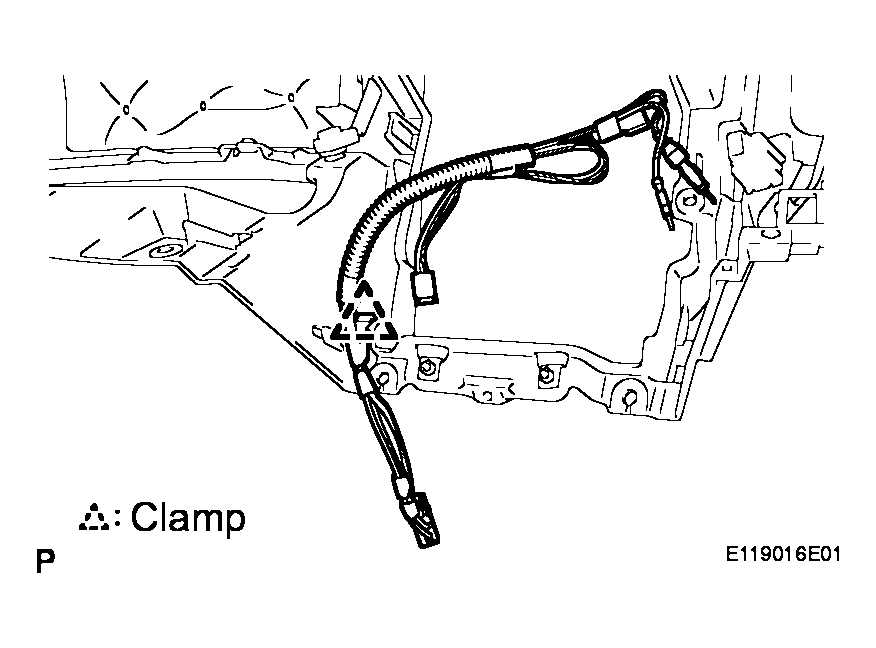

    Fig 1: Identifying No. 2 Antenna Cord Sub-Assembly And Disengaging Clamp
    G04050254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  60. REMOVE ANTENNA CORD SUB-ASSEMBLY (w/o DVD Player)
    1. Disconnect each connector.

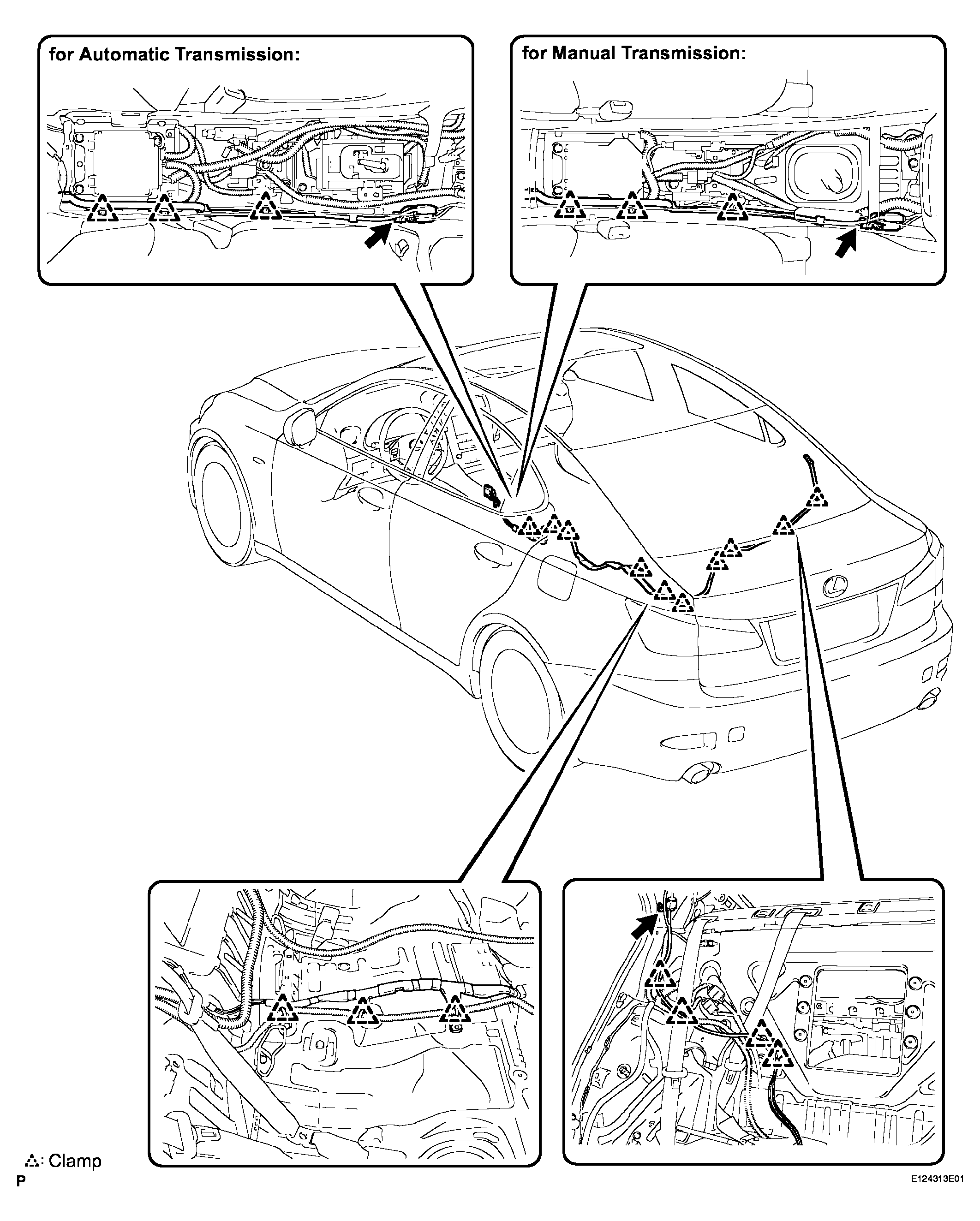

      Fig 2: Identifying Antenna Cord Sub-Assembly (W/O DVD Player)
      G04050255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 bolts and disengage the 19 clamps.
    3. Remove the antenna cord sub-assembly.
  61. REMOVE ANTENNA CORD SUB-ASSEMBLY (w/ DVD Player)
    1. Disconnect the connectors.
    2. Disengage the 3 clamps and separate the antenna cord.

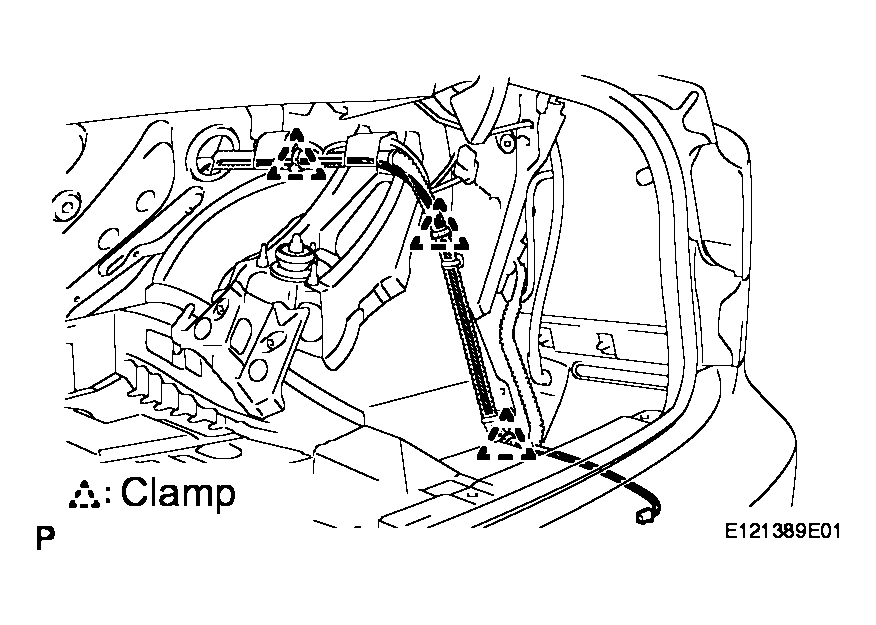

      Fig 3: Identifying Clamps And Separate Antenna Cord
      G04050256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect each connector.
      Fig 4: Identifying Bolts And Clamps
      G04050257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 3 bolts and disengage the 19 clamps.
    5. Remove the antenna cord sub-assembly.
