Brake Pedal: Installation

  1. INSTALL BRAKE PEDAL SUPPORT ASSEMBLY (w/VSC)
    1. Install the brake pedal support assembly with the bolt.

      Torque: 21 N*m (214 kgf*cm, 16 ft.*lbf)

      Fig 1: Locating Brake Pedal Support Assembly Bolt
      G04025314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the wire harness clamp.
    3. Connect the 2 connectors.

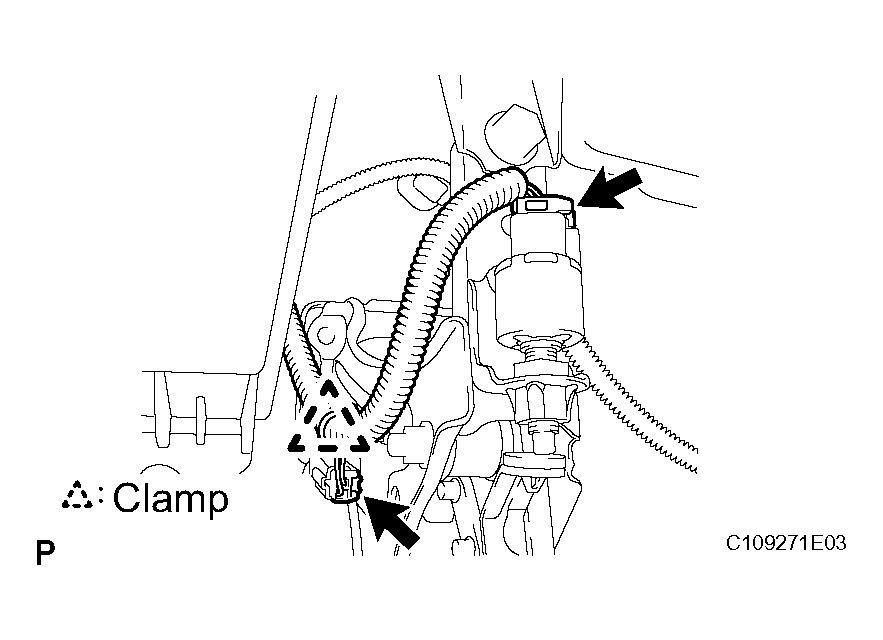

      Fig 2: Engaging Wire Harness Clamp
      G04025315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL BRAKE PEDAL SUPPORT ASSEMBLY (w/ECB)
    1. Install the brake pedal support assembly with the bolt.

      Torque: 21 N*m (214 kgf*cm, 16 ft.*lbf)

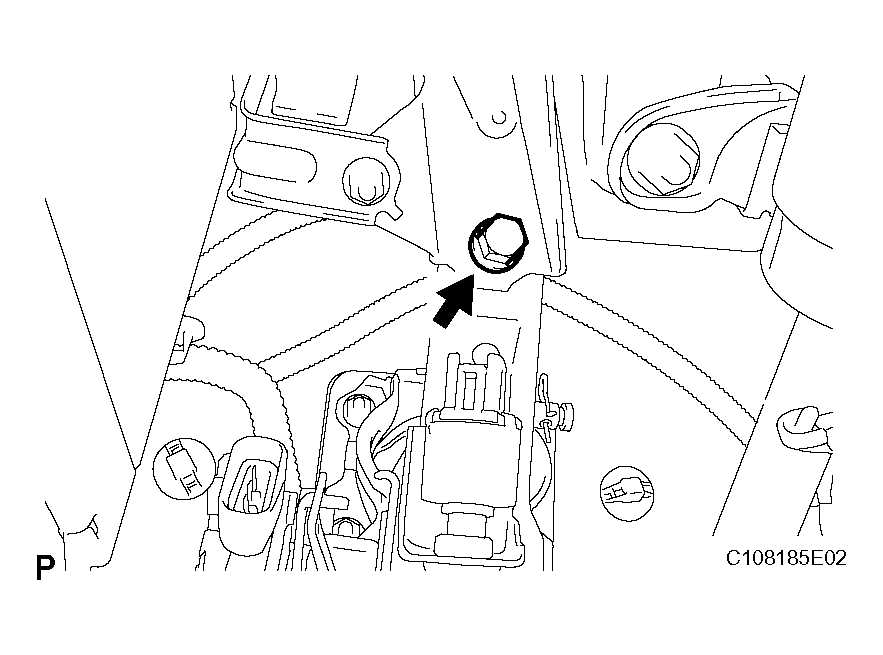

      Fig 3: Installing Brake Pedal Support Assembly With Bolt
      G04025316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the wire harness clamp.
    3. Connect the 3 connectors.

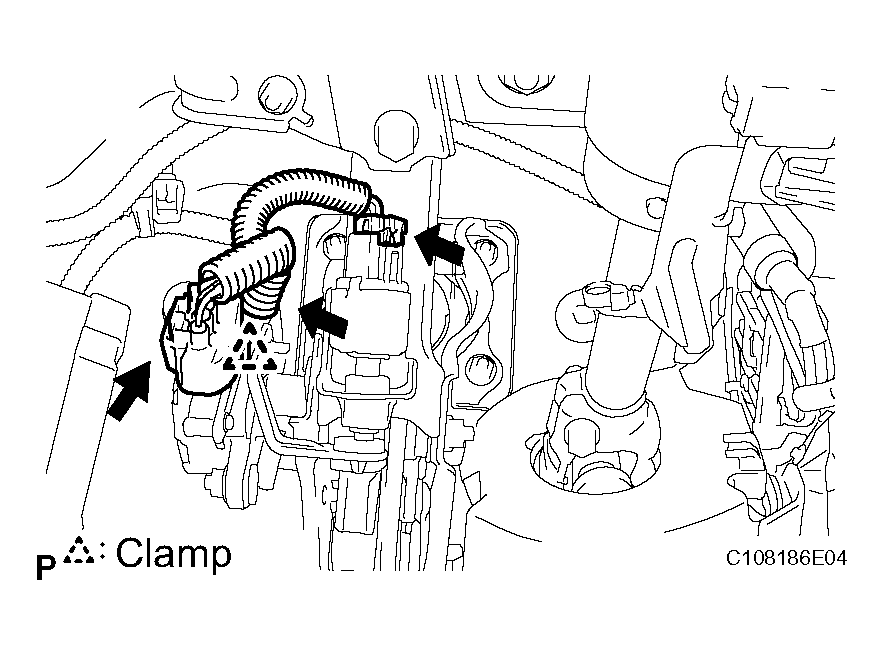

      Fig 4: Engaging Wire Harness Clamp
      G04025317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL BRAKE BOOSTER GASKET (w/ VSC) (See  INSPECTION   )
  4. INSTALL BRAKE BOOSTER ASSEMBLY (w/ VSC) (See  INSPECTION   )
  5. INSTALL BRAKE MASTER CYLINDER PUSH ROD CLEVIS (w/ VSC) (See  INSPECTION   )
  6. INSTALL BRAKE PEDAL RETURN SPRING (w/ VSC) (See  INSPECTION   )
  7. INSTALL ABS AND TRACTION ACTUATOR ASSEMBLY (w/ VSC) (See  INSTALLATION  )
  8. INSTALL BRAKE ACTUATOR ASSEMBLY WITH ACTUATOR BRACKET (w/ ECB) (See  INSTALLATION  )
  9. INSTALL BRAKE BOOSTER GASKET (w/ ECB) (See  INSPECTION   )
  10. INSTALL BRAKE MASTER CYLINDER ASSEMBLY WITH STROKE SIMULATOR (w/ ECB) (See  INSPECTION   )
  11. INSTALL BRAKE MASTER CYLINDER PUSH ROD CLEVIS (w/ ECB) (See  INSTALLATION   )
  12. INSTALL BRAKE PEDAL RETURN SPRING (w/ ECB) (See  INSTALLATION   )
  13. INSTALL RESERVOIR TUBE NO.1 HOSE (w/ ECB)
  14. INSTALL SKID CONTROL ECU ASSEMBLY (w/ ECB) (See  INSTALLATION  )
  15. INSTALL ENGINE ROOM RELAY NO.3 BLOCK
  16. CONNECT BATTERY NEGATIVE TERMINAL
  17. DISABLE BRAKE CONTROL (w/ ECB) (See  BLEEDING   )
  18. ADD RESERVOIR WITH BRAKE FLUID (w/ ECB) (See  BRAKE PEDAL   )
  19. BLEED BRAKE RESERVOIR TUBE NO.1 HOSE (w/ECB)
  20. BLEED MASTER CYLINDER (w/ ECB)
  21. BLEED FRONT BRAKE SYSTEMS (w/ ECB) (See  BRAKE PEDAL   )
  22. BLEED REAR BRAKE SYSTEM (w/ ECB) (See  BRAKE PEDAL   )
  23. PERFORM ACCUMULATOR ZERO DOWN (w/ ECB) (See  BRAKE PEDAL   )
  24. CHECK BRAKE FLUID LEVEL (w/ ECB) (See  BRAKE PEDAL   )
  25. CLEAR DTC (w/ ECB)
  26. PERFORM LINER VALVE OFFSET LEARNING (w/ECB) (See  BRAKE PEDAL   )
  27. ADD BRAKE FLUID (w/ VSC) (See  BRAKE FLUID (W/ VSC)   )
  28. BLEED MASTER CYLINDER (w/ VSC) (See  BRAKE FLUID (W/ VSC)   )
  29. BLEED BRAKE LINE (w/ VSC) (See  BLEEDING   )
  30. BLEED ABS AND TRACTION ACTUATOR ASSEMBLY (w/ VSC) (See  BLEEDING   )
  31. INSPECT FLUID LEVEL IN RESERVOIR (w/ VSC) (See  BRAKE FLUID (W/ ECB)   )
  32. INSPECT BRAKE FLUID LEAKAGE
  33. INSPECT AND ADJUST BRAKE PEDAL HEIGHT (See  DISASSEMBLY   )
  34. INSPECT PEDAL FREE PLAY (See  REASSEMBLY   )
  35. INSPECT PEDAL RESERVE DISTANCE (See  REASSEMBLY   )
  36. INSTALL INSTRUMENT PANEL AIR BAG ASSEMBLY NO.1 LOWER (See  INSTALLATION  )
  37. INSTALL INSTRUMENT PANEL SAFETY PAD NO.1 SUB-ASSEMBLY (See  INSTALLATION  )
  38. INSTALL INSTRUMENT PANEL UNDER COVER NO.1 SUB-ASSEMBLY (See  INSTALLATION  )
  39. INSTALL INSTRUMENT SIDE PANEL LH (See  INSTALLATION  )
  40. INSTALL FRONT DOOR OPENING TRIM COVER LH (See  INSTALLATION  )
  41. INSTALL FRONT DOOR SCUFF PLATE LH (See  INSTALLATION  )
  42. INSTALL INSTRUMENT PANEL FINISH PANEL END LH (See  INSTALLATION  )
  43. INSTALL CONSOLE UPPER PANEL SUB-ASSEMBLY (See  INSTALLATION  )
  44. INSTALL CONSOLE UPPER PANEL GARNISH FRONT (See  INSTALLATION  )
  45. INSTALL FRONT WHEEL
  46. INSTALL COWL TOP VENTILATOR LOUVER SUBASSEMBLY (See  INSTALLATION  )
  47. INSTALL FRONT FENDER TO COWL SIDE SEAL RH (See  INSTALLATION  )
  48. INSTALL FRONT FENDER TO COWL SIDE SEAL LH (See  INSTALLATION  )
  49. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH (See  INSTALLATION  )
  50. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH (See  INSTALLATION  )
  51. INSTALL FRONT PILLAR TO FRONT SIDE SEAL SUB-ASSEMBLY RH (See  INSTALLATION  )
  52. INSTALL FRONT PILLAR TO FRONT SIDE SEAL SUB-ASSEMBLY LH (See  INSTALLATION  )
  53. INSTALL ENGINE ROOM COVER SIDE (See  INSTALLATION  )
  54. INSTALL ENGINE ROOM SIDE COVER LH (See  INSTALLATION  )
  55. INSPECT VSC SENSOR SIGNAL

    (See DTC CHECK / CLEAR )

  56. INSPECT ACTUATOR WITH INTELLIGENT TESTER (w/ VSC)

    (See ON-VEHICLE INSPECTION )

  57. INSPECT SRS WARNING LIGHT

    (See DIAGNOSIS SYSTEM )

  58. PERFORM INITIALIZATION

    (See INITIALIZATION )

    1. Some systems need initialization after reconnecting the cable to the negative battery terminal.
