BRAKE CONTROL BRAKE ACTUATOR (w/ VSC): Installation

  1. INSTALL ABS AND TRACTION ACTUATOR ASSEMBLY WITH BRACKET
    1. Install the actuator assembly with bracket to the body with the 2 bolts and nut.

      Torque: 19 N*m (195 kgf*cm, 14 ft.*lbf)

      NOTE: Do not to damage the brake tubes.
      Fig 1: Locating Actuator Assembly Bracket To Body 2 Bolts And Nut
      G04025216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, connect the brake No.3 tube to the flexible hose.

      SST 09023-00101

      Torque: 15 N*m (155 kgf*cm, 11 ft.*lbf)

    3. Install the grommet to the body.
      NOTE: Make sure that the grommet is installed correctly.
      Fig 2: Identifying Grommet To Body
      G04025217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Temporarily tighten each brake tube to the connect positions of the actuator assembly with bracket as shown in the illustration.

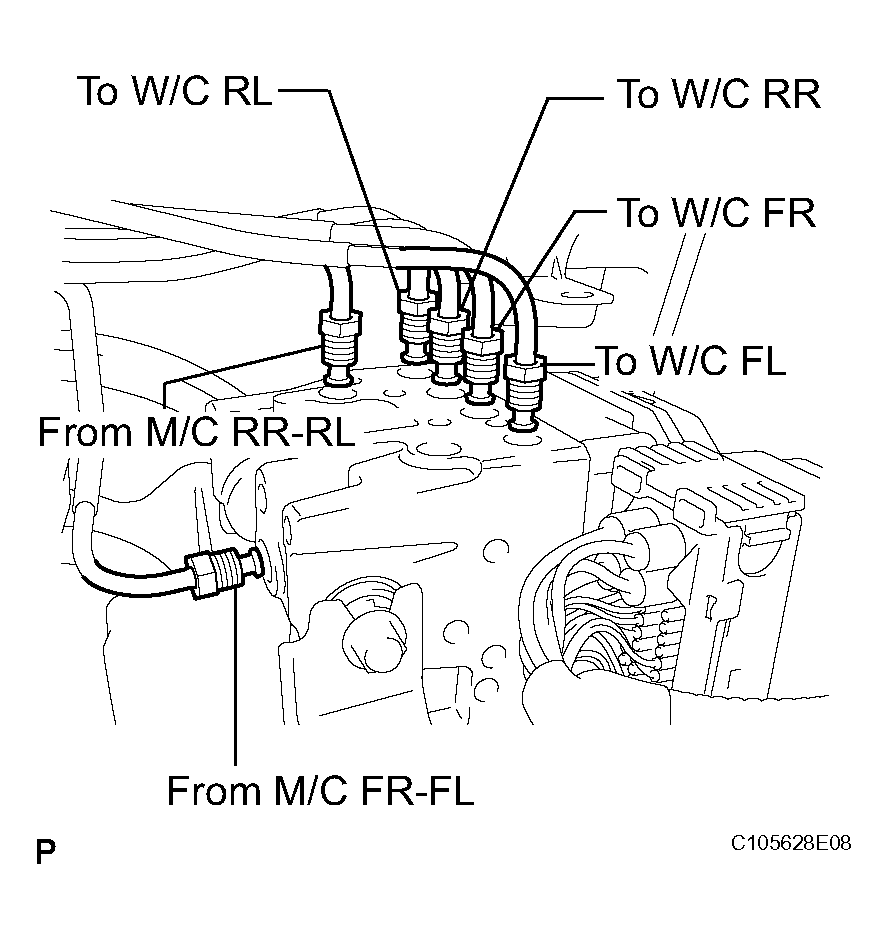

      Fig 3: Tightening Each Brake Tube To Connect Positions Of Actuator Assembly With Bracket
      G04025218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Using SST, fully tighten each brake tube to the connect positions of the actuator assembly with bracket as shown in the illustration.

      SST 09023-00101

      Torque: 15 N*m (155 kgf*cm, 11 ft.*lbf)

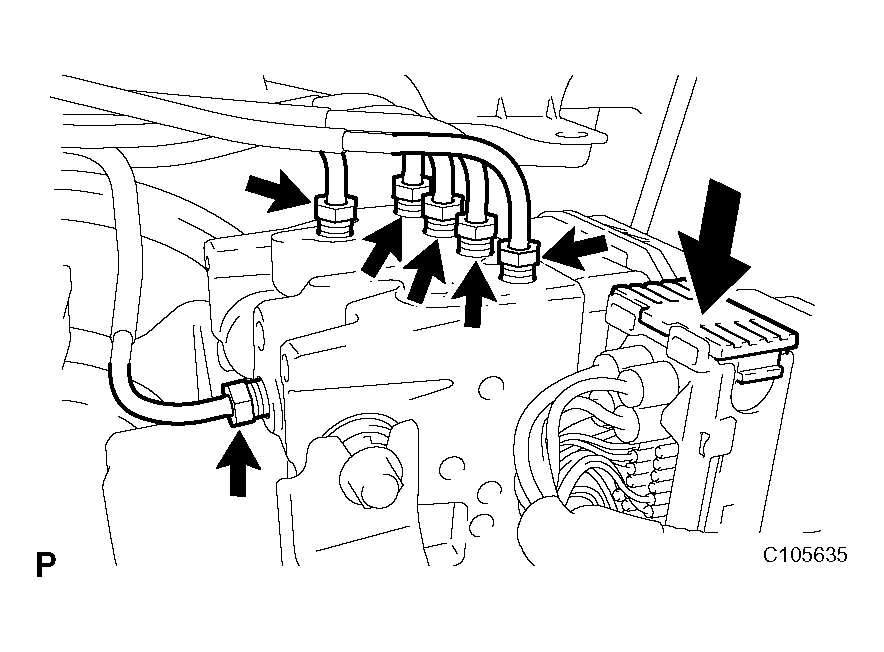

      Fig 4: Tightening Brake Tube To Connect Positions Of Actuator Assembly With Bracket
      G04025219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Connect the actuator connector.
      NOTE: Make sure that the connector is locked securely.
  2. INSTALL BRAKE MASTER WITH PLATE CYLINDER SUB- ASSEMBLY (See  INSTALLATION  )
  3. INSTALL ENGINE ROOM RELAY NO.3 BLOCK
  4. ADD RESERVOIR WITH BRAKE FLUID (See  ON-VEHICLE INSPECTION  )
  5. BLEED BRAKE MASTER CYLINDER SUBASSEMBLY (See  ON-VEHICLE INSPECTION  )
  6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  7. BLEED BRAKE LINE (See  ON-VEHICLE INSPECTION  )
  8. INSTALL FRONT WHEEL
  9. INSPECT DTC
  10. BLEED ABS AND TRACTION ACTUATOR ASSEMBLY (See  ON-VEHICLE INSPECTION  )
  11. INSPECT FLUID LEVEL IN RESERVOIR (See  ON-VEHICLE INSPECTION  )
  12. INSPECT BRAKE FLUID LEAKAGE
  13. INSTALL COWL TOP VENTILATOR LOUVER SUBASSEMBLY (See  INSTALLATION  )
  14. INSTALL FRONT FENDER TO COWL SIDE SEAL LH (See  INSTALLATION  )
  15. INSTALL FRONT FENDER TO COWL SIDE SEAL RH (See  INSTALLATION  )
  16. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY (See  INSTALLATION  )
  17. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY (See  INSTALLATION  )
  18. INSTALL ENGINE ROOM SIDE COVER LH (See  INSTALLATION  )
  19. INSTALL ENGINE ROOM COVER SIDE (See  INSTALLATION  )
  20. INSTALL FRONT PILLAR TO FRONT SIDE SEAL SUB-ASSEMBLY RH (See  INSTALLATION  )
  21. INSTALL FRONT PILLAR TO FRONT SIDE SEAL SUB-ASSEMBLY LH (See  INSTALLATION  )
  22. INSTALL COOL AIR INTAKE DUCT SEAL (See  INSTALLATION  )
  23. PERFORM YAW RATE SENSOR ZERO POINT CALIBRATION

    (See DIAGNOSIS SYSTEM  )

  24. INSPECT VSC SENSOR SIGNAL

    (See PROBLEM SYMPTOMS TABLE  )

  25. INSPECT ACTUATOR WITH INTELLIGENT TESTER

    (See TS AND CG TERMINAL CIRCUIT  )

  26. PERFORM INITIALIZATION

    (See INITIALIZATION )

    Some systems need initialization after reconnecting the cable to the negative battery terminal.
