Front Passenger Airbag Assembly: Installation

1. Engage the 5 hooks (A).
2. Engage the 5 hooks (B) and install the front passenger airbag assembly on the instrument panel.

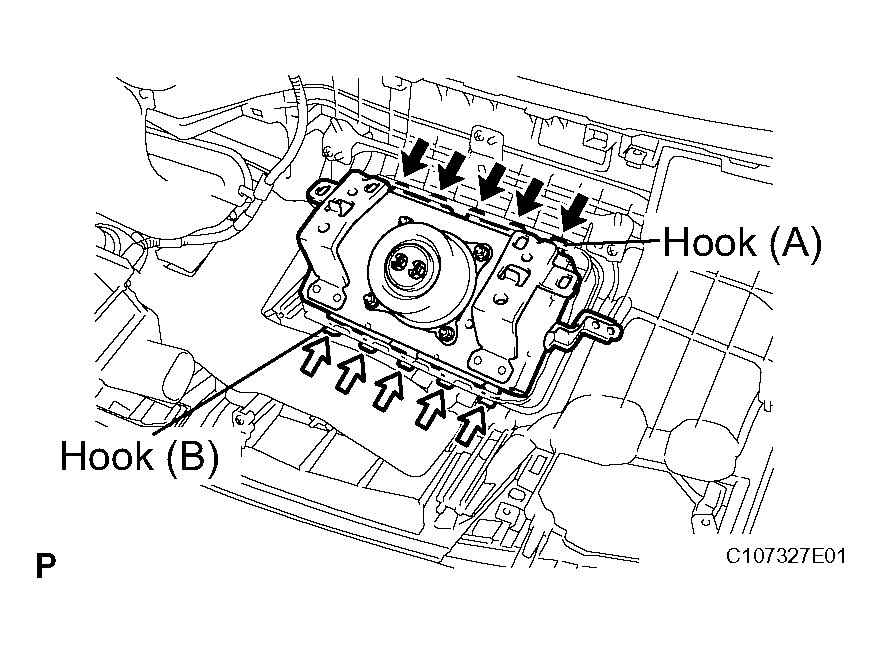

   Fig 1: Identifying Front Passenger Airbag Assembly On Instrument Panel

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the 2 screws.

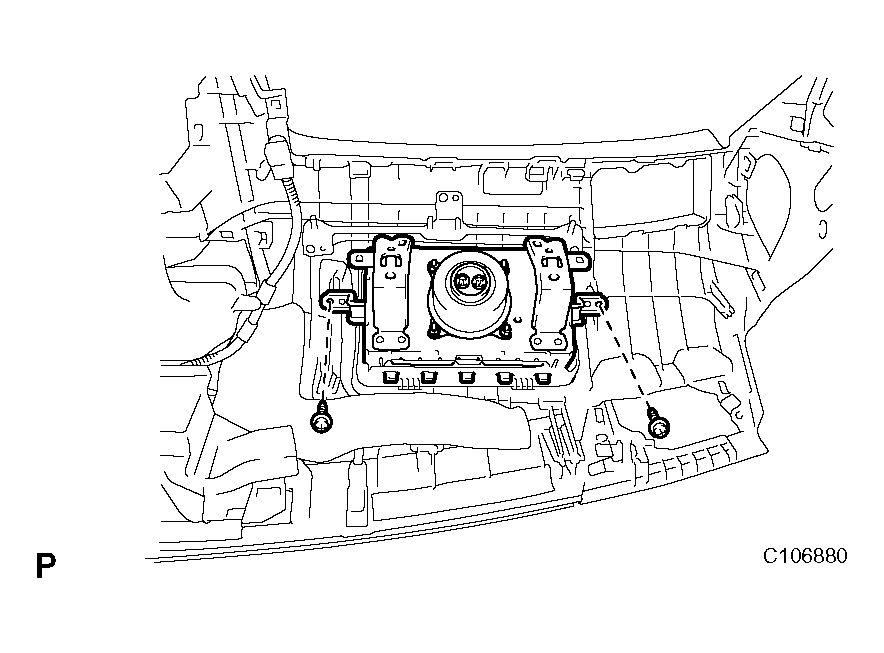

   Fig 2: Identifying Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the 2 connectors to the front passenger airbag assembly.
   NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.

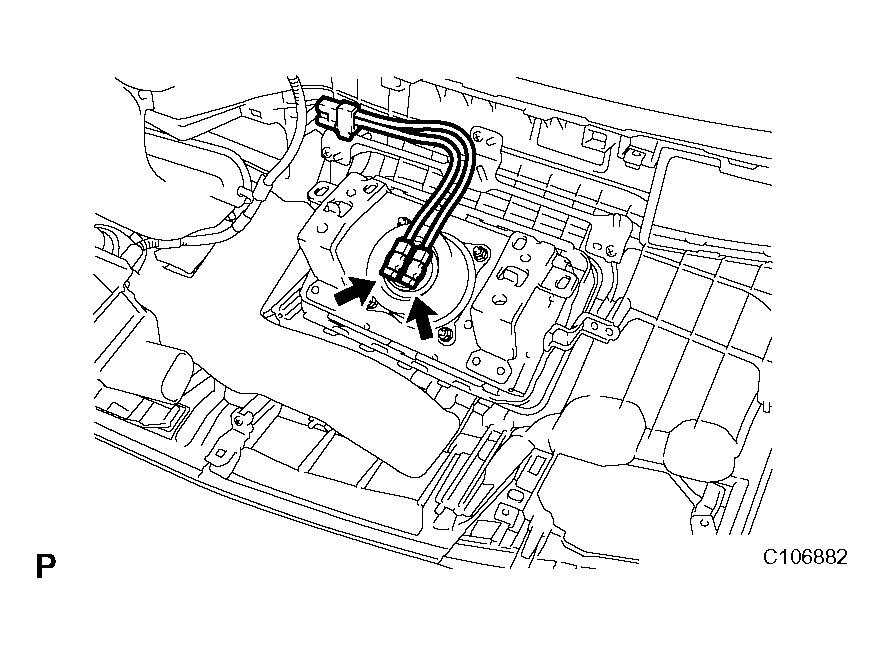

   Fig 3: Connecting Connectors To Front Passenger Airbag Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

(See INSTALLATION )

HINT:

Refer to the procedures from "INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY".
