Disassembly and Assembly: Disassembly

Remove the following parts:
- Rocker cover and spark plug: Refer to Exploded View .
- Intake manifold: Refer to Exploded View .
- Exhaust manifold: Refer to Exploded View .
- Water inlet and thermostat housing: Refer to Exploded View .
- Water pipe and heater pipe: Refer to Exploded View .
- Timing chain: Refer to Exploded View .
- Camshaft (EXH) and VVEL ladder assembly: Refer to Exploded View .

Remove cylinder head.

Loosen mounting bolts in reverse order as shown in the figure, below.

Fig 1: Cylinder Head Bolt Tightening Sequence

Courtesy of NISSAN NORTH AMERICA, INC.

A	: Bank 2
B	: Bank 1
	: Engine front

Use TORX socket and power tool.

Remove cylinder head gaskets.
Remove oil filter (for VVEL ladder assembly) from cylinder block, if necessary.
Remove valve lifter.
- Identify installation positions, and store them without mixing them up.
Remove valve collet.

Courtesy of NISSAN NORTH AMERICA, INC.
- Compress valve spring with the valve spring compressor [SST: KV10116200 (J-26336-A)] (A), the attachment [SST: KV10115900 (J-26336-20)] (C) and the adapter [SST: KV10109220 (--)] (B). Remove valve collet with a magnet hand.
CAUTION: When working, take care not to damage valve lifter holes.
Remove valve spring retainer and valve spring (with valve spring seat).
Push valve stem to combustion chamber side, and remove valve.
- Identify installation positions, and store them without mixing them up.

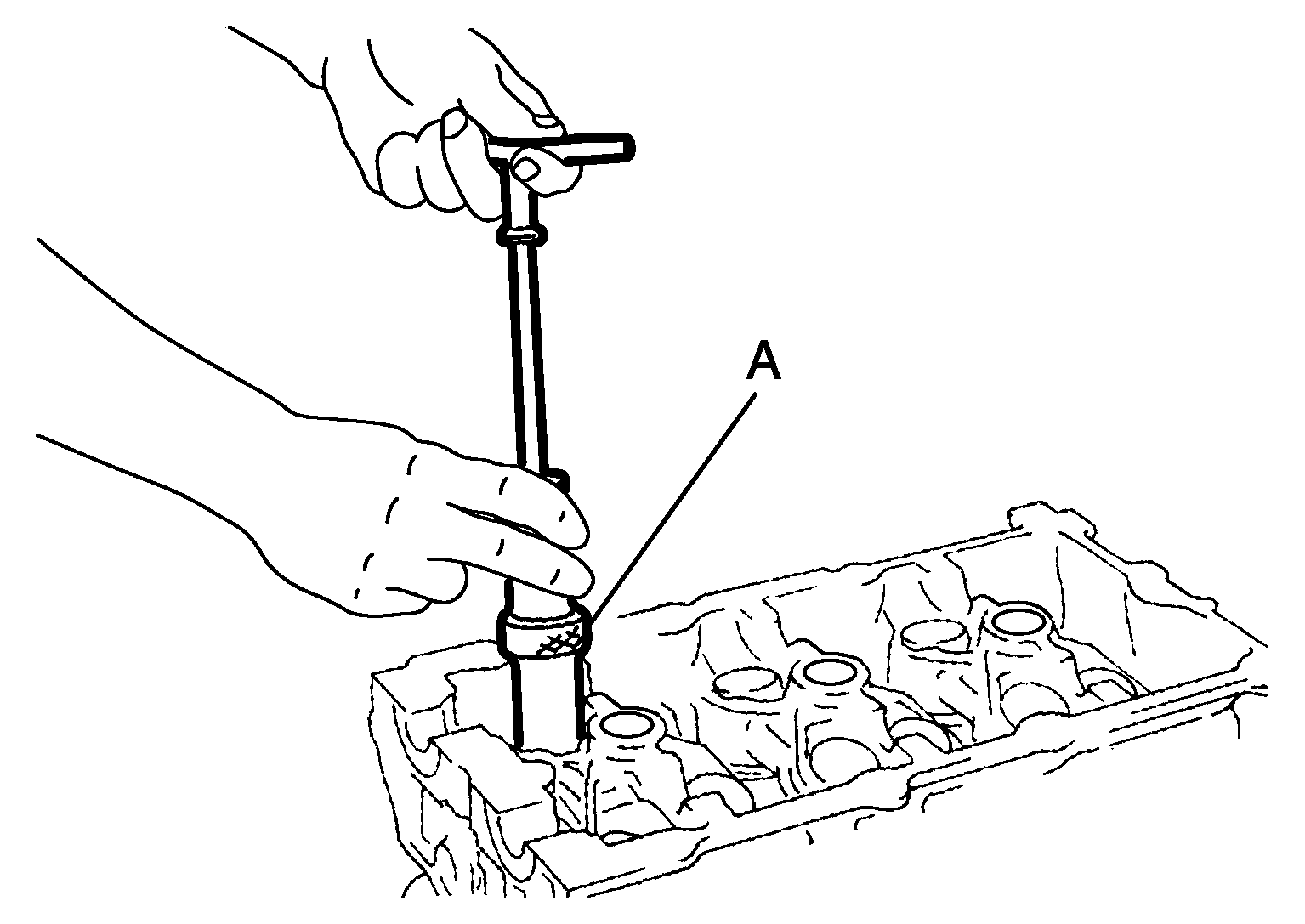

Remove valve oil seal using the valve oil seal puller [SST: KV10107902 (J38959)] (A).

Courtesy of NISSAN NORTH AMERICA, INC.
Remove valve seat (EXH), if valve seat (EXH) must be replaced.
- Bore out old seat until it collapses. Boring should not continue beyond the bottom face of the seat recess in cylinder head. Set the machine depth stop to ensure this. Refer to Cylinder Head .
  CAUTION: Prevent to scratch cylinder head by excessive boring.

Remove valve guide (EXH), if valve guide (EXH) must be replaced.

To remove valve guide (EXH), heat cylinder head to 110 to 130 deg. C (230 to 266 deg. F) by soaking in heated oil (A).

Courtesy of NISSAN NORTH AMERICA, INC.

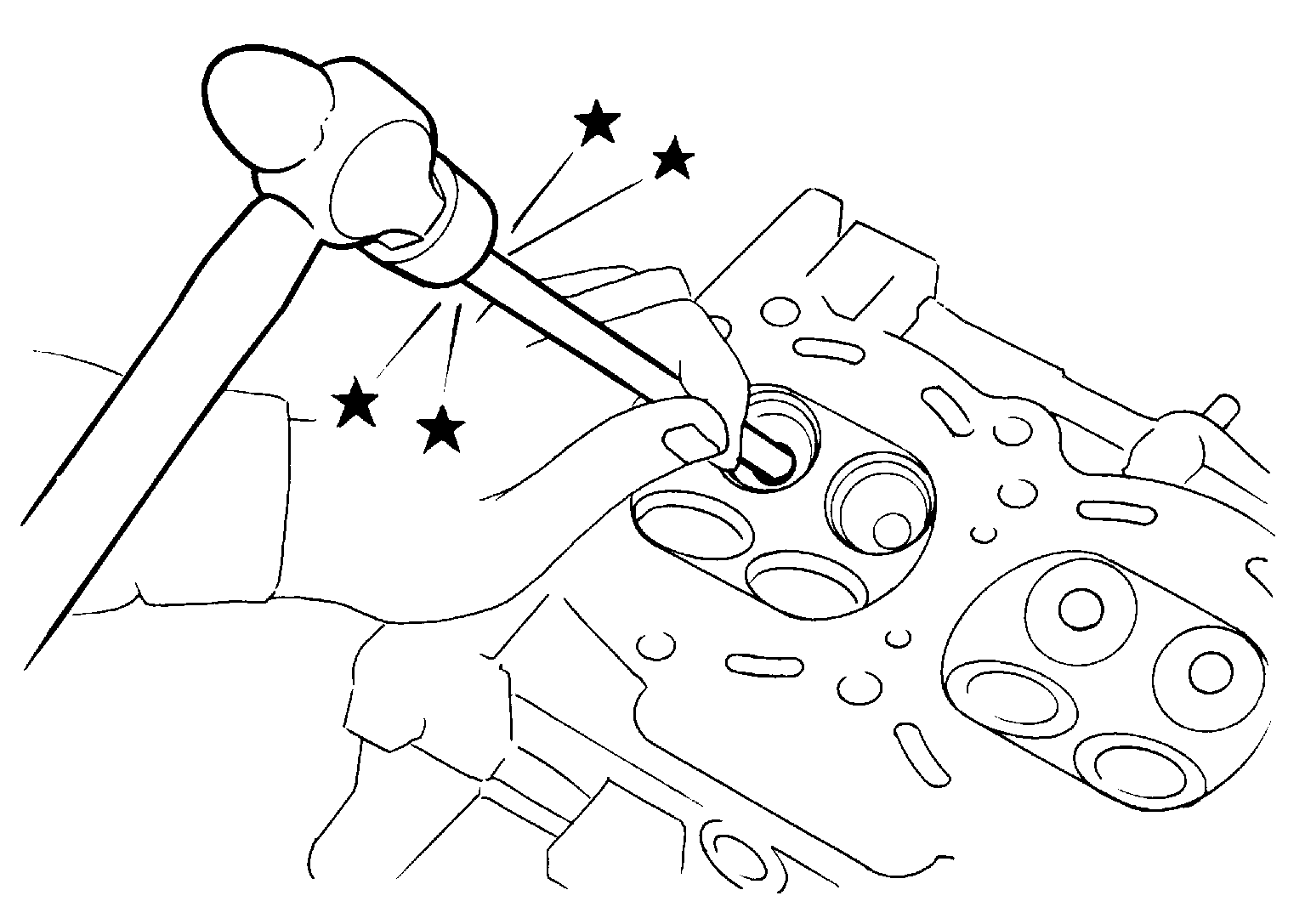

Drive out valve guide (EXH) with a press [under a 20 kN (2 ton, 2.2 US ton, 2.0 lmp ton) pressure] or a hammer and the valve guide drift (commercial service tool).

Courtesy of NISSAN NORTH AMERICA, INC.

WARNING: Cylinder head contains heat. When working, wear protective equipment to avoid getting burned.
