Exploded View

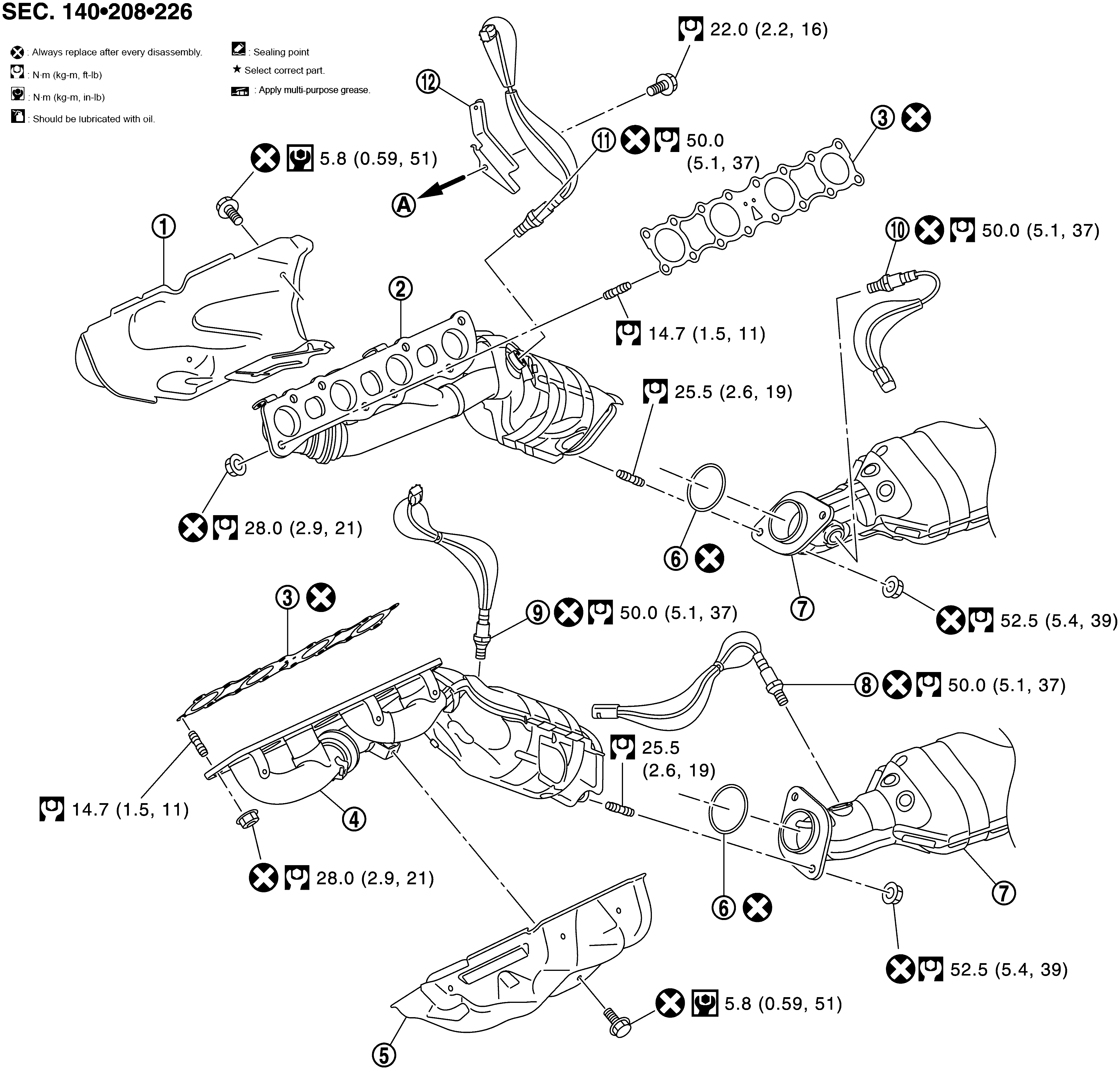

Fig 1: Exhaust Manifold And Three Way Catalyst With Torque Specifications
GNSJPBIA4293GB-293Courtesy of NISSAN NORTH AMERICA, INC.

1.

Exhaust manifold cover (bank 2)

2.

Exhaust manifold (bank 2)

3.

Gasket

4.

Exhaust manifold (bank 1)

5.

Exhaust manifold cover (bank 1)

6.

Gasket

7.

Exhaust front tube

8.

Heated oxygen sensor 2 (bank 1)

9.

Air fuel ratio sensor 1 (bank 1)

10.

Heated oxygen sensor 2 (bank 2)

11.

Air fuel ratio sensor 1 (bank 2)

12.

Harness bracket

A.

To cylinder head (bank 2)

Refer to Components for symbols in the figure.
