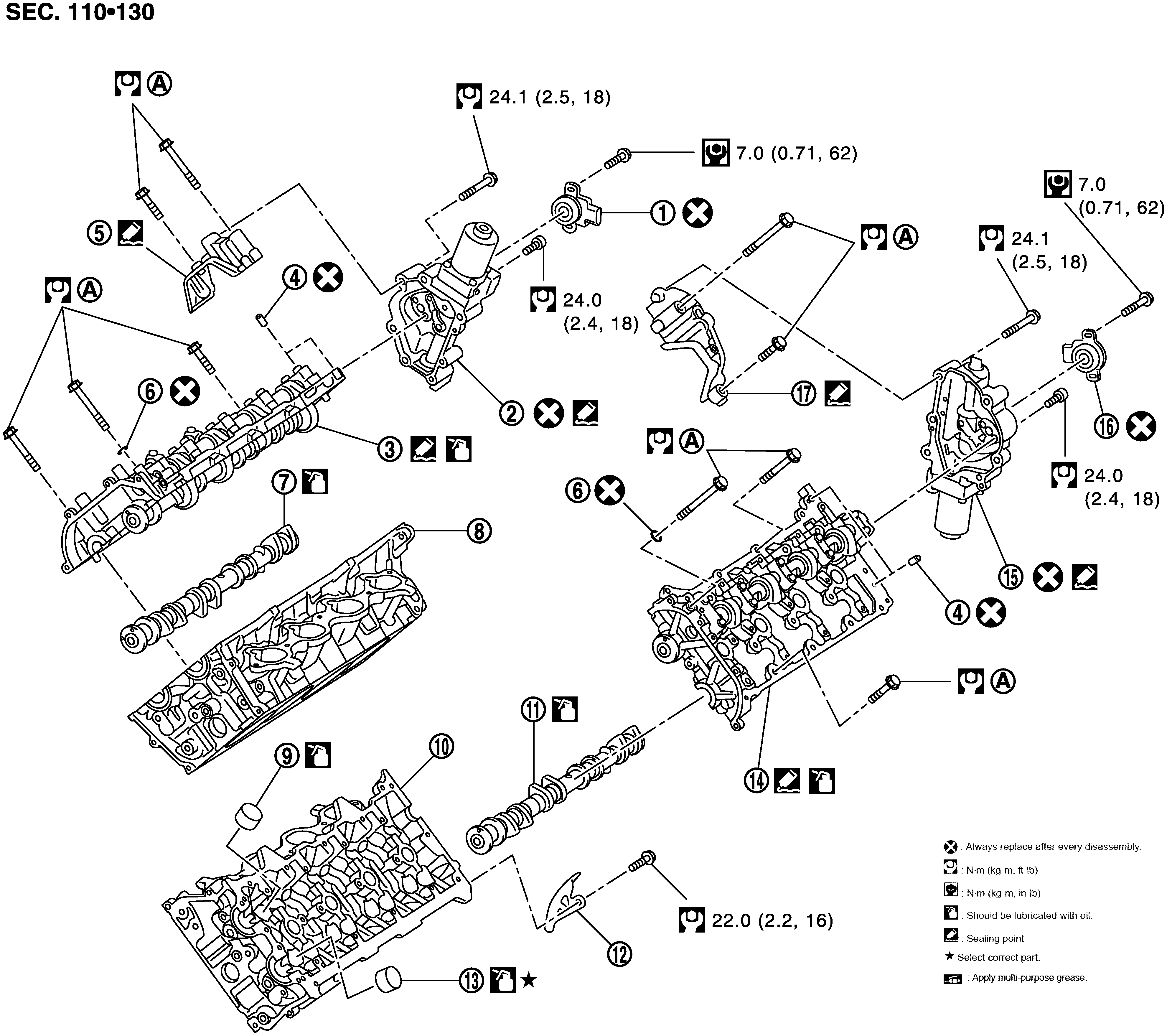

Exploded View
|
1. |
VVEL control shaft position sensor (bank 2) |
2. |
VVEL actuator sub assembly (bank 2) |
3. |
VVEL ladder assembly (bank 2) |
|
4. |
Dowel pin |
5. |
Actuator bracket (rear) (bank 2) |
6. |
Washer |
|
7. |
Camshaft (EXH) (bank 2) |
8. |
Cylinder head (bank 2) |
9. |
Valve lifter (INT) |
|
10. |
Cylinder head (bank 1) |
11. |
Camshaft (EXH) (bank 1) |
12. |
Actuator cover |
|
13. |
Valve lifter (EXH) |
14. |
VVEL ladder assembly (bank 1) |
15. |
VVEL actuator sub assembly (bank 1) |
|
16. |
VVEL control shaft position sensor (bank 1) |
17. |
Actuator bracket (rear) (bank 1) |
||
|
A. |
Comply with the installation procedure when tightening. Refer to Disassembly and Assembly |
||||
|
Refer to Components for symbol marks in the figure. |
|||||
- As for replacement of parts on the intake side as shown in the exploded view, replace VVEL Ladder Assembly & Cylinder Head Assembly.
- VVEL ladder assembly cannot be replaced as a single part, because it is machined together with cylinder head assembly.
|

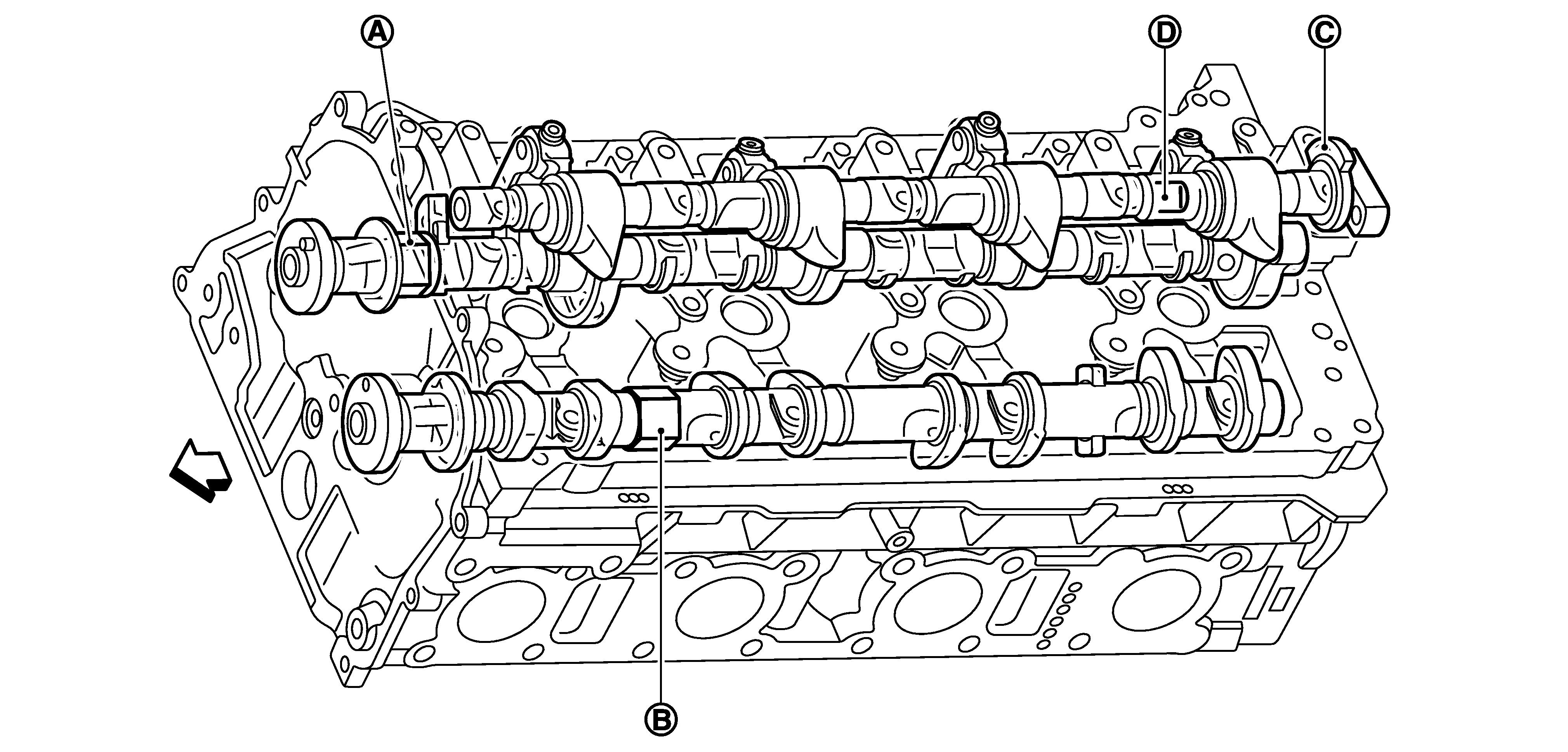

A. |
Hexagonal Part Of Drive Shaft (For holding) |
B. |
Hexagonal Part Of Camshaft (EXH) (For holding) |
C. |
Stopper Of Control Shaft |
|
D. |
Two Flat Areas Of Control Shaft (For holding) |
||||
|
|
: Engine Front |
