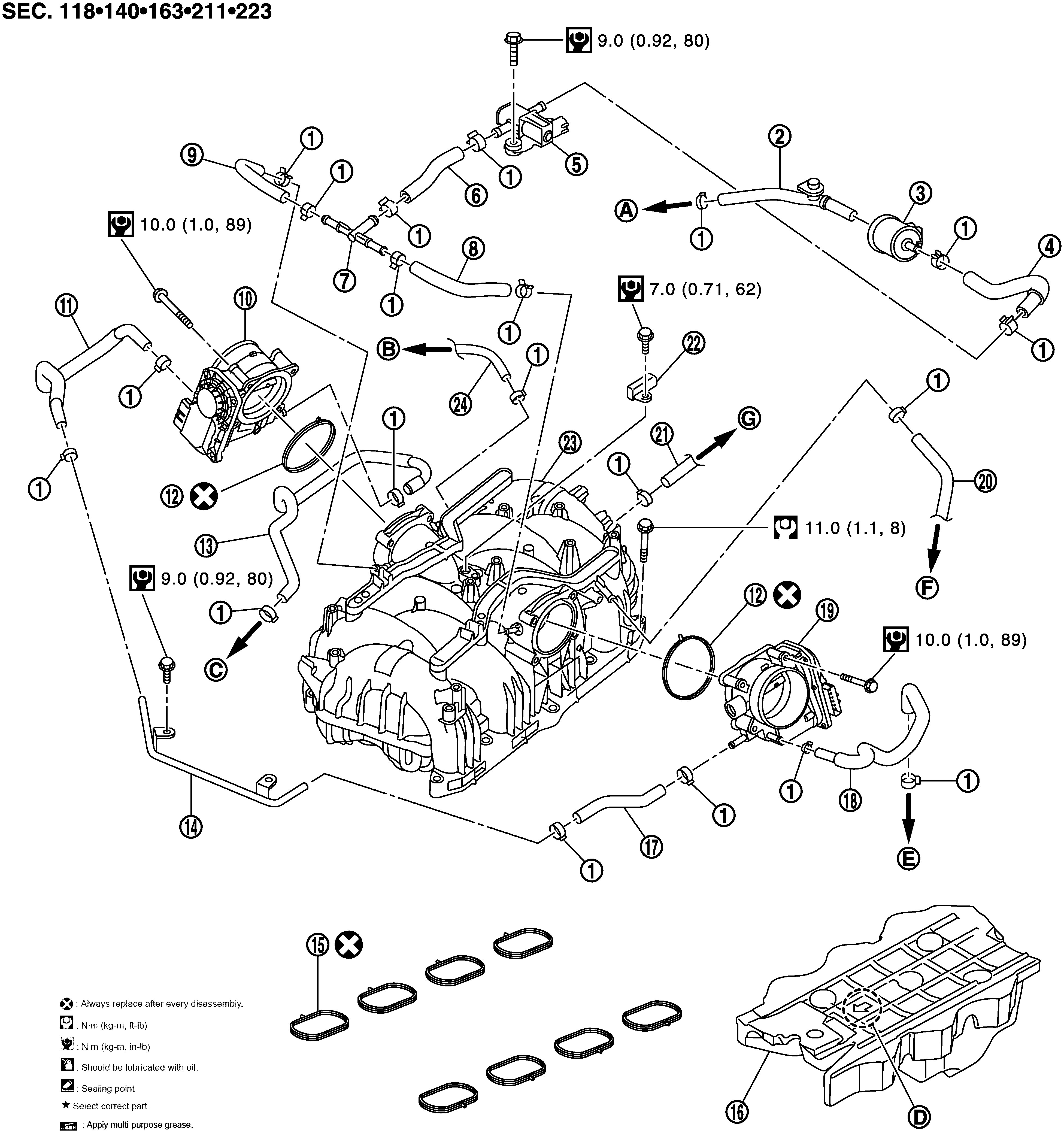

Exploded View
|
1. |
Clamp |
2. |
EVAP service port hose |
3. |
Vacuum tank |
|
4. |
EVAP hose |
5. |
EVAP canister purge control solenoid valve |
6. |
EVAP hose |
|
7. |
EVAP tube |
8. |
EVAP hose |
9. |
EVAP hose |
|
10. |
Electric throttle control actuator (bank 2) |
11. |
Water hose |
12. |
Gasket |
|
13. |
Water hose |
14. |
Water pipe |
15. |
Gasket |
|
16. |
Acoustic absorbent |
17. |
Water hose |
18. |
Water hose |
|
19. |
Electric throttle control actuator (bank 1) |
20. |
PCV hose |
21. |
Vacuum hose |
|
22. |
Manifold absolute pressure (MAP) sensor |
23. |
Intake manifold |
24. |
PCV hose |
|
A. |
To centralized under-floor piping |
B. |
To rocker cover (bank 2) |
C. |
To water outlet |
|
D. |
Front mark |
E. |
To cylinder head |
F. |
To rocker cover (bank 1) |
|
G. |
To brake booster |
||||
|
Refer to Components for symbols in the figure. |
|||||
