Removal and Installation: Removal

  1. Remove the following parts:
  2. Remove crankshaft pulley as per the following:
    1. Remove rear plate cover. Refer to Exploded View  (2WD models) or Exploded View  (AWD models).

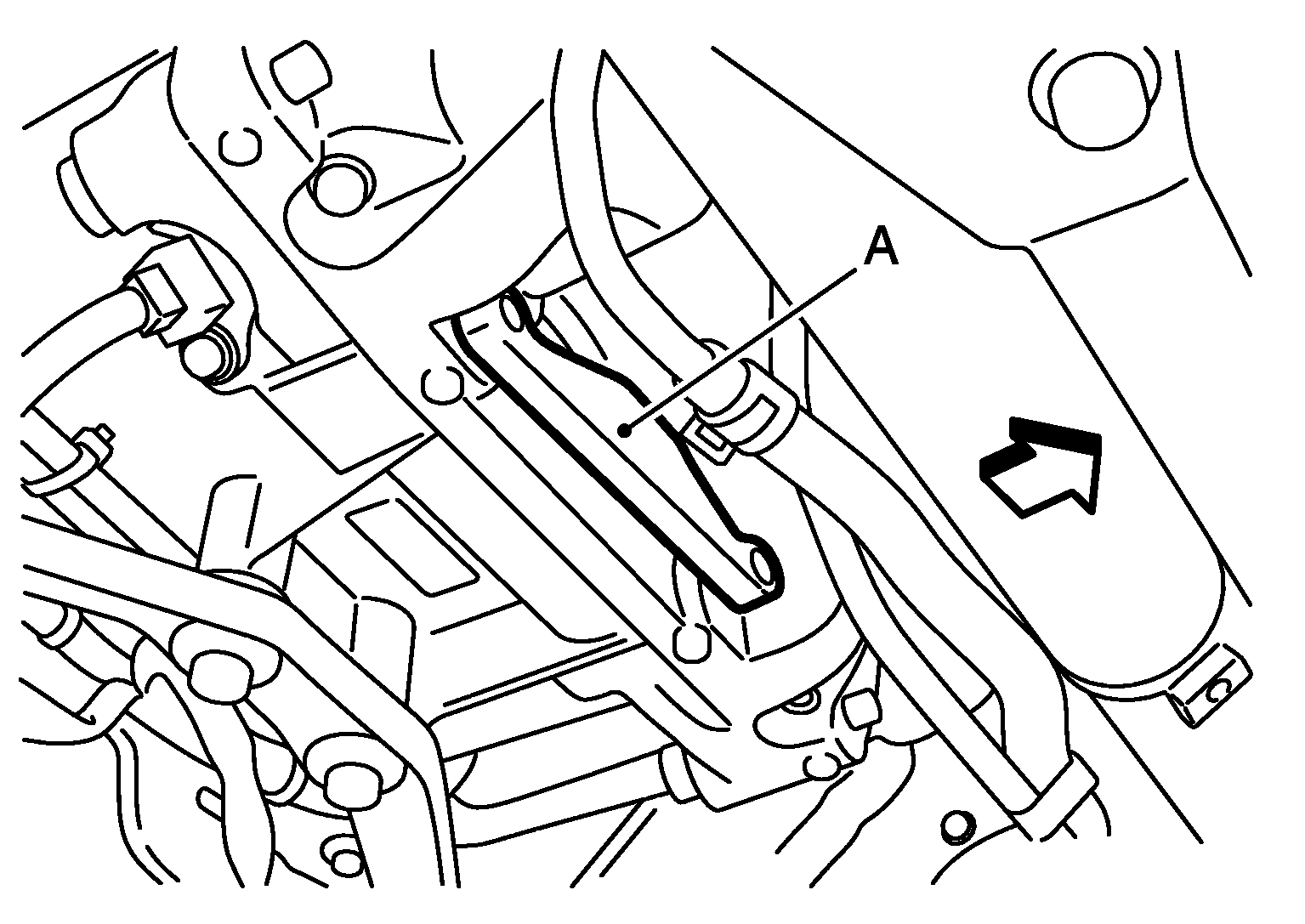

    2. Set the ring gear stopper [SST: KV10119200 (J-49277)] (A) as shown in the figure, below.
      GNSJPBIA2358Z-358Courtesy of NISSAN NORTH AMERICA, INC.

      SYMBOL

      : Engine front
    3. Loosen crankshaft pulley bolt, and then pull crankshaft pulley with both hands to remove it.
      CAUTION: Never remove crankshaft pulley bolt. Keep loosened crankshaft pulley bolt in place to protect removed crankshaft pulley from dropping.
  3. Remove front oil seal using a suitable tool.
    G04132291Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Be careful not to damage front cover and crankshaft.
