Exploded View

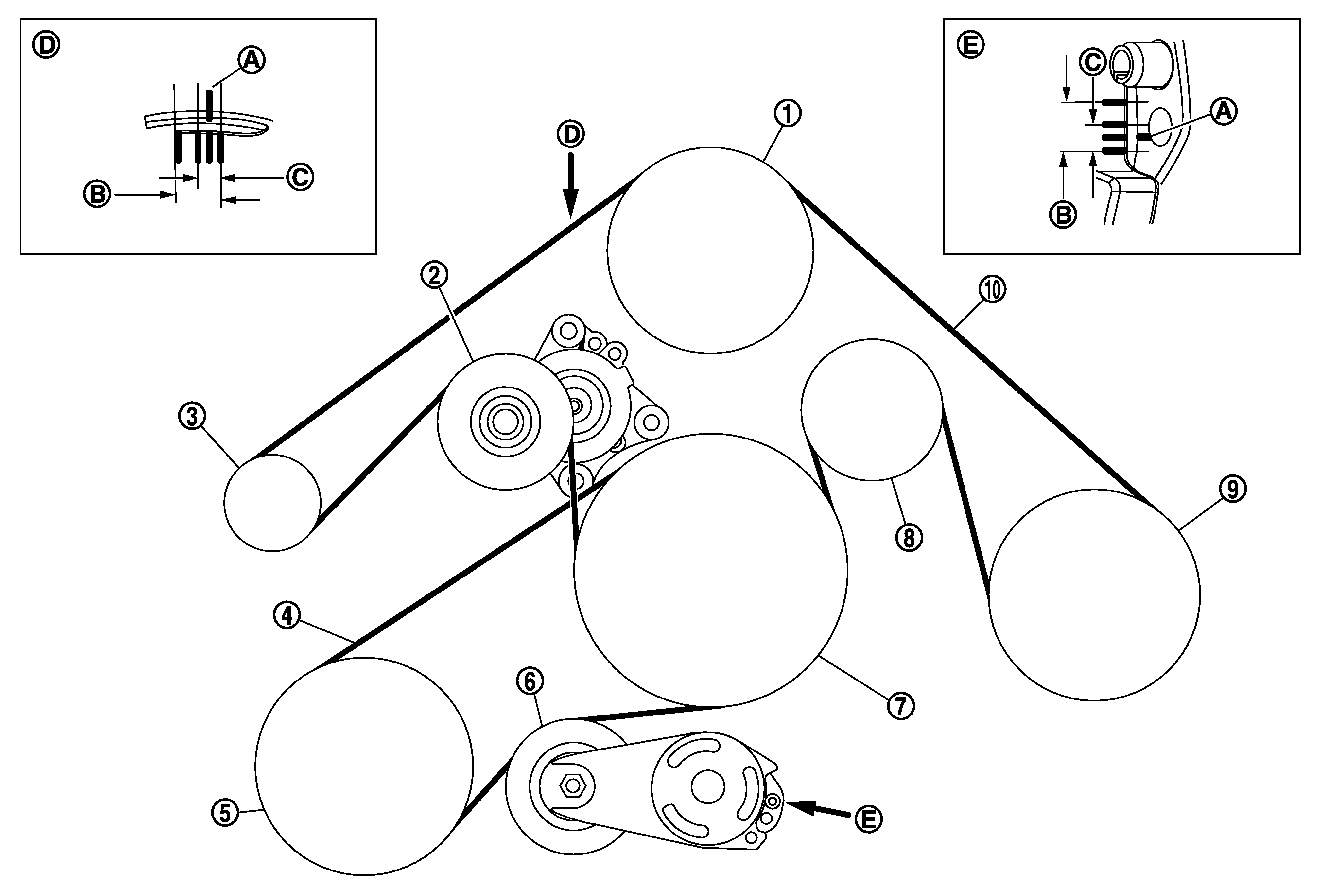

Fig 1: Drive Belt Routing

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Water Pump	2.	Auto-Tensioner (For Alternator, Water Pump And A/C Compressor Belt)	3.	Alternator
4.	Power Steering Oil Pump Belt	5.	Power Steering Oil Pump	6.	Auto-Tensioner (For Power Steering Oil Pump Belt)
7.	Crankshaft Pulley	8.	Idler Pulley	9.	A/C Compressor
10.	Alternator, Water Pump And A/C Compressor Belt
A.	Indicator	B.	Possible use range	C.	Range when new drive belt is installed
D.	View D	E.	View E
