Exploded View

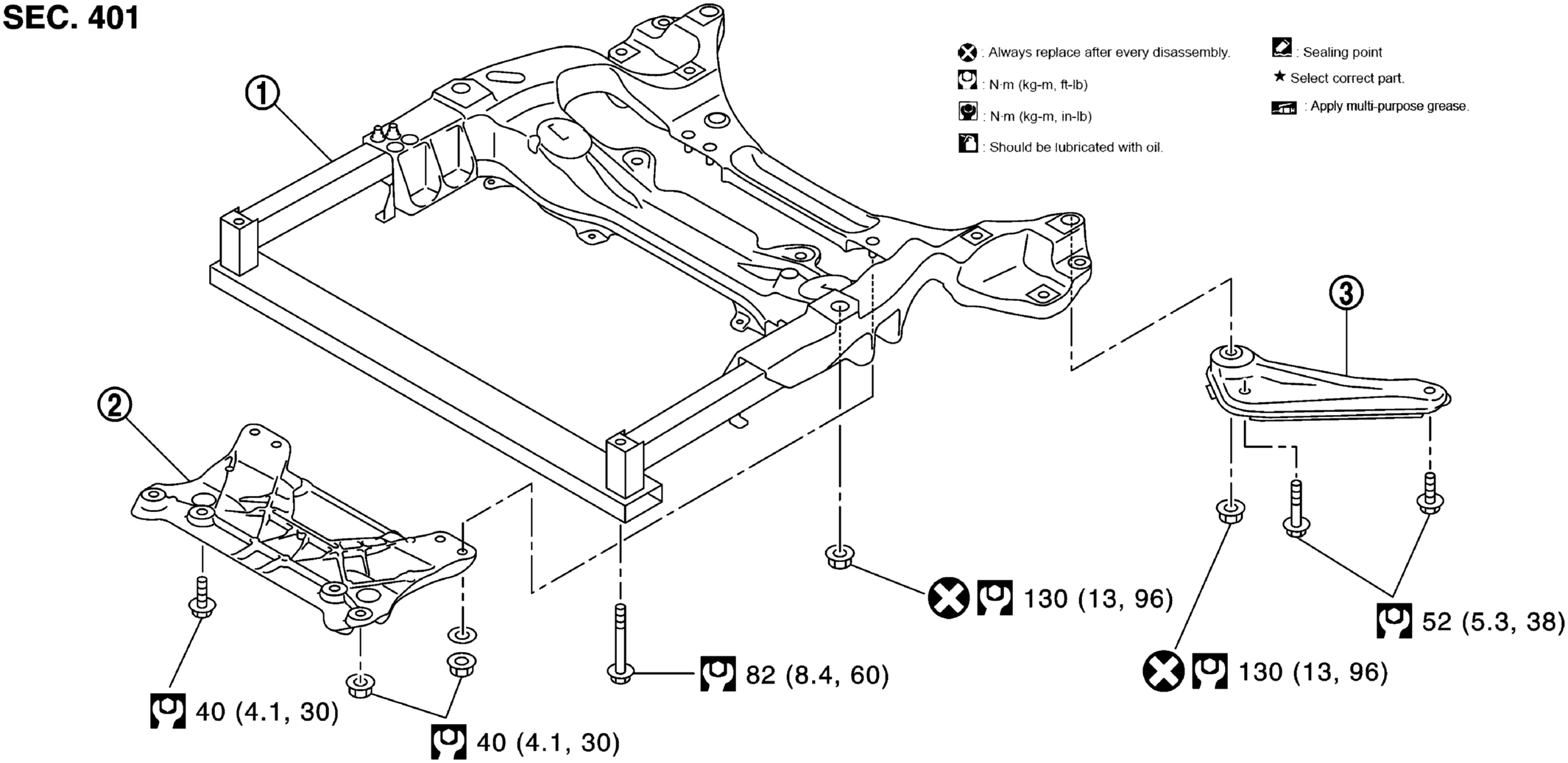

Fig 1: Front Suspension Member With Torque Specifications
GNSJPEIA0279GB-279Courtesy of NISSAN NORTH AMERICA, INC.

1.

Front suspension member

2.

Suspension member stay

3.

Front suspension member stay

Refer to Components for symbols in the figure.
