Exploded View

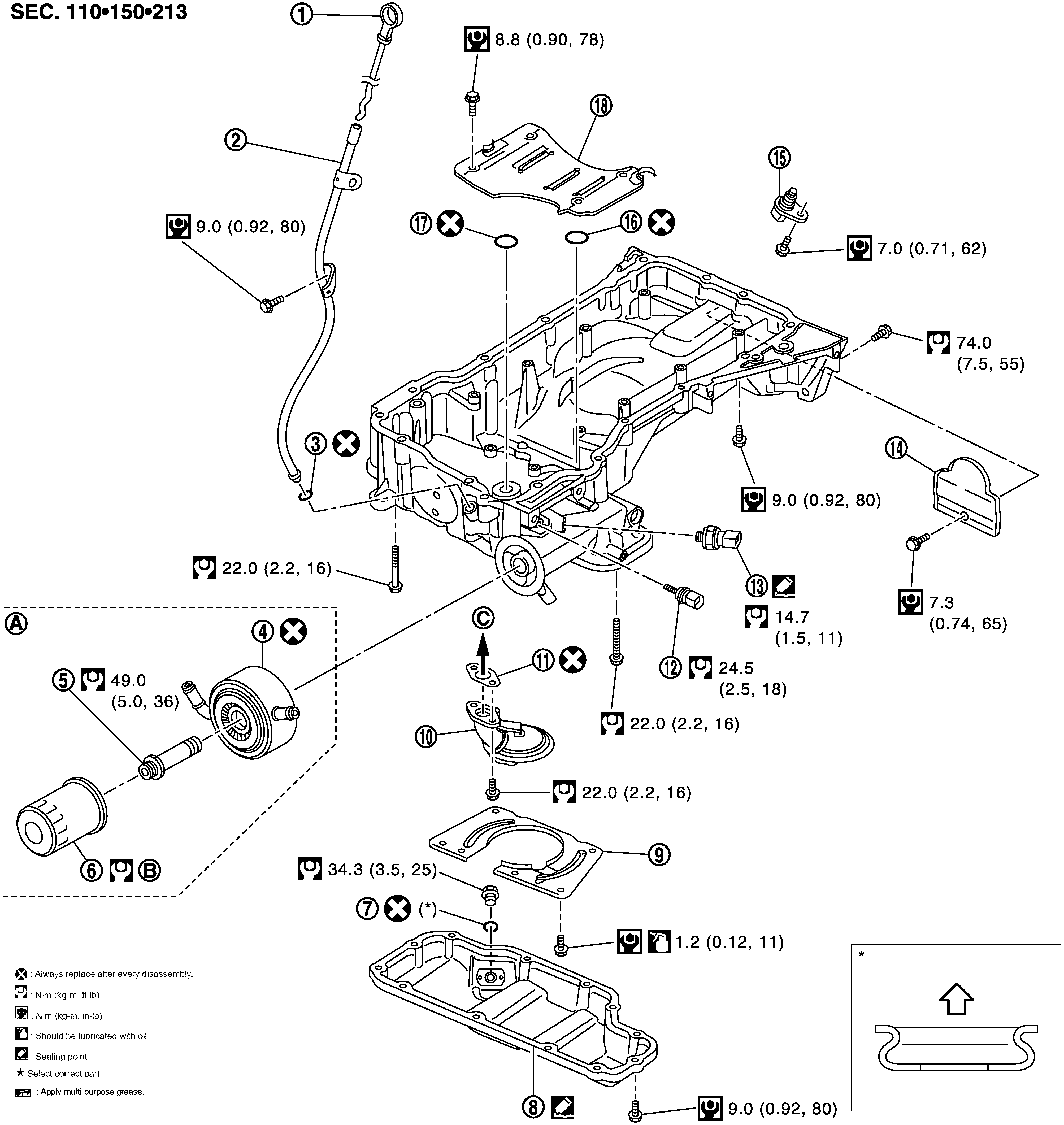

Fig 1: Oil Pan (Lower) And Oil Strainer 2WD With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Oil level gauge	2.	Oil level gauge guide	3.	O-ring
4.	Oil cooler	5.	Connector bolt	6.	Oil filter
7.	Drain plug washer	8.	Oil pan (lower)	9.	Baffle plate
10.	Oil strainer	11.	Gasket	12.	Engine oil temperature sensor
13.	Engine oil pressure sensor	14.	Rear plate cover	15.	Crankshaft position sensor (POS)
16.	O-ring	17.	O-ring	18.	Baffle plate
A.	Comply with the assembly procedure when tightening. Refer to Exploded View	B.	Comply with the assembly procedure when tightening. Refer to Removal and Installation	C.	Oil pump side
	: Oil pan side
Refer to Components for symbols in the figure.
