Exploded View

WARNING: This page is about a different variant/trim than selected.

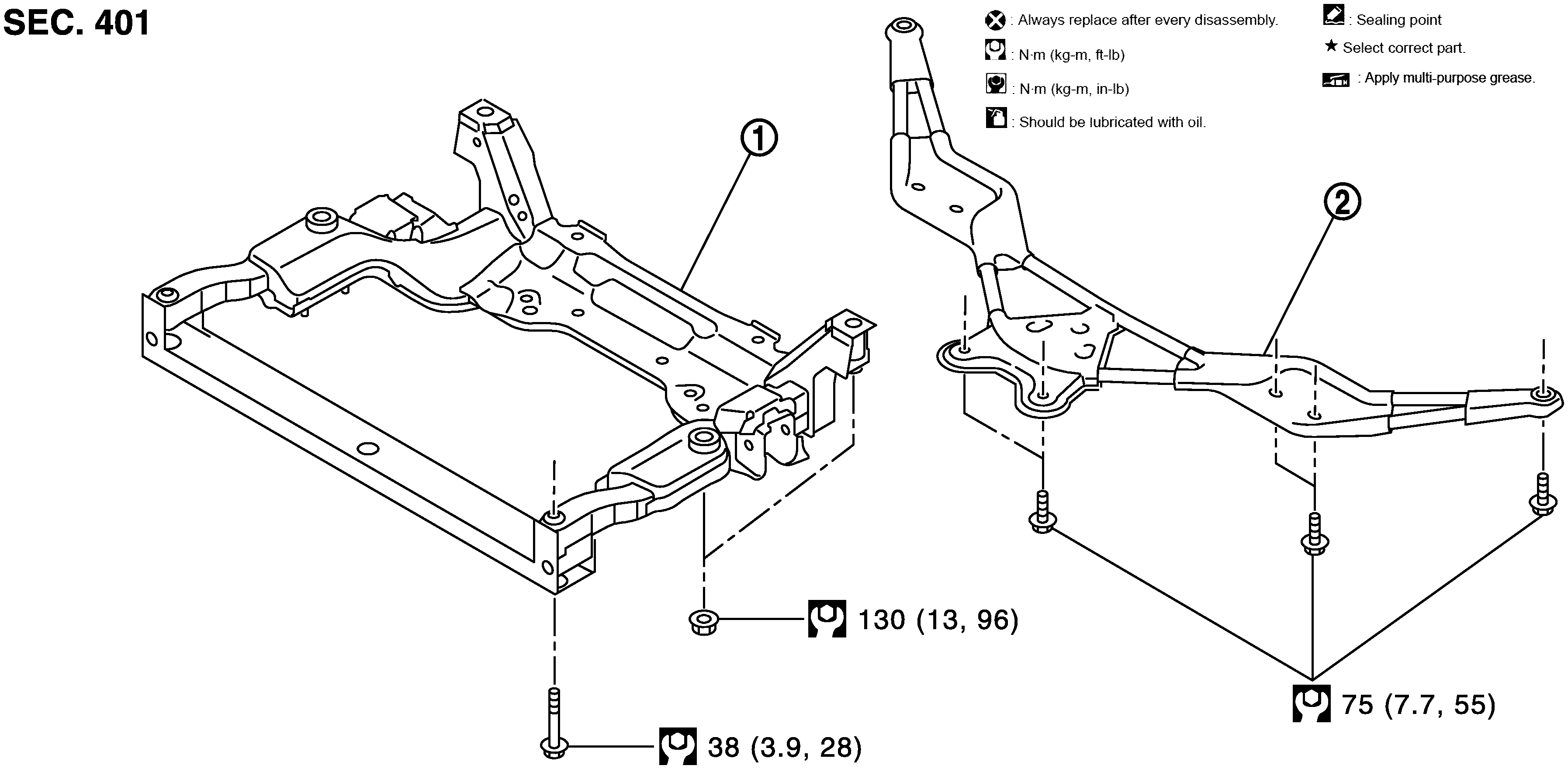

Fig 1: Front Suspension Member With Torque Specifications
GNSJPEIA0208GB-208Courtesy of NISSAN NORTH AMERICA, INC.

1.

Front suspension member

2.

Front cross bar

Refer to Components for symbols in the figure.
