Preliminary Procedure
- Remove the shift control bracket. Refer to Transmission Control Bracket Replacement
.
- Remove the steering column assembly. Refer to Steering Column Replacement
.
- Remove the right and left outer air outlet bezels. Refer to Instrument Panel Outer Air Outlet Bezel Replacement - Right Side and Instrument Panel Outer Air Outlet Bezel Replacement - Left Side .
- Remove the instrument panel assist handle. Refer to Instrument Panel Assist Handle Replacement .
- Remove the instrument panel inflatable restraint module. Refer to Inflatable Restraint Instrument Panel Module Replacement
.
- Remove the instrument panel upper trim panel with windshield defroster nozzle grille. Refer to Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement .
- Remove the instrument panel cluster assembly. Refer to Instrument Cluster Replacement
.
- Remove the radio. Refer to Radio Replacement
.
- Remove the communication interface module. Refer to Communication Interface Module Replacement
.
- Prior to removal of the carrier assembly, note the routing of the instrument panel wiring harness and connector locations to ensure proper reinstallation.
|

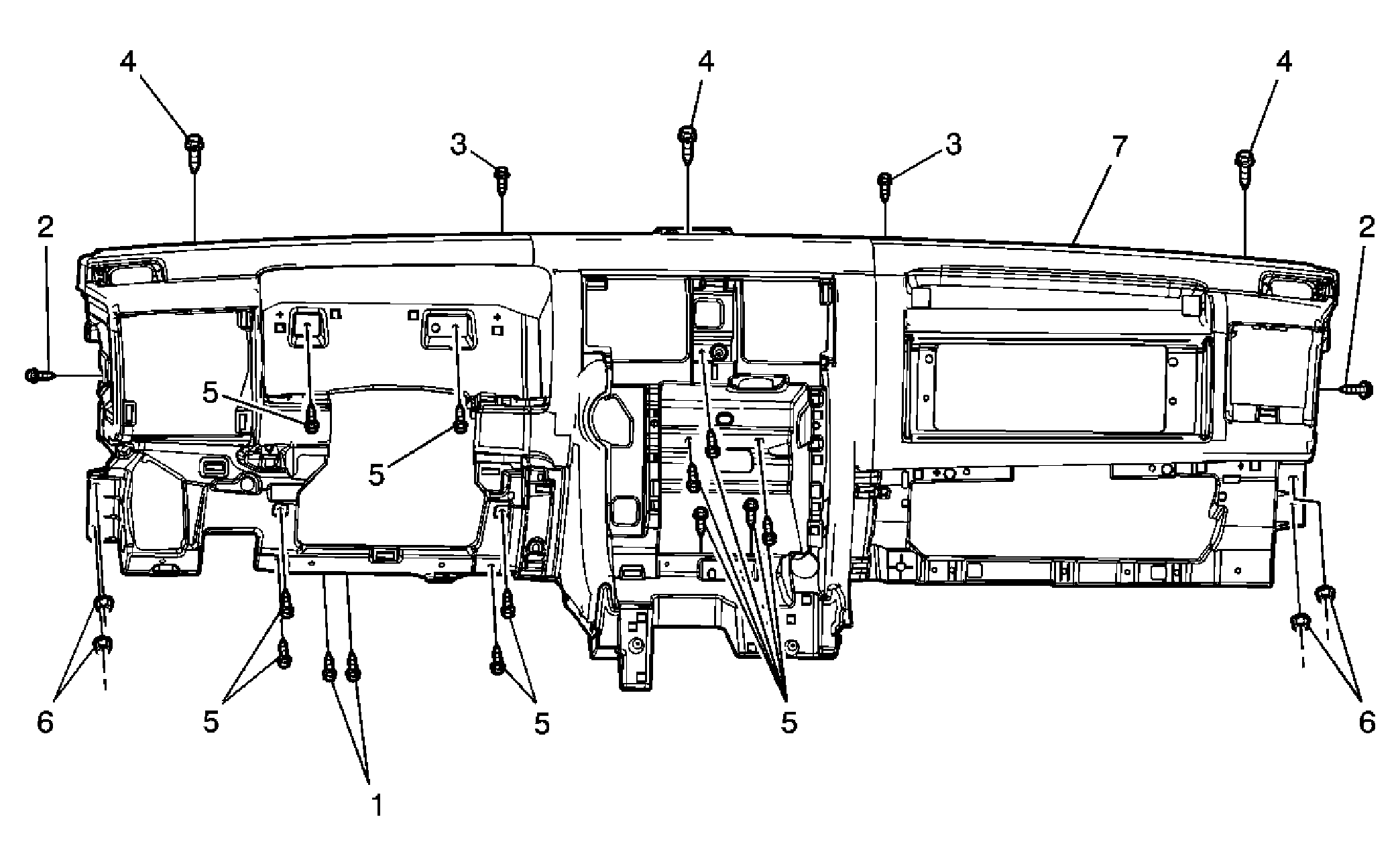

| 1 |
ALDL Screw (Qty: 2)
Tighten:
2.5 N.m (22 lb in)
|
| 2 |
Air Distributor Duct Outer Screw (Qty: 2) Tighten:
2.5 N.m (22 lb in)
|
| 3 |
Air Distributor Duct Upper Screw (Qty: 2) Tighten:
2.5 N.m (22 lb in)
|
| 4 |
Instrument Panel Carrier Upper Bolt (Qty: 3) Tighten:
9 N.m (80 lb in)
|
| 5 |
Instrument Panel Carrier Screw (Qty: 10) Tighten:
2.5 N.m (22 lb in)
|
| 6 |
Instrument Panel Carrier Nut (Qty: 4) Tighten:
9 N.m (80 lb in)
|
| 7 |
Instrument Panel Carrier Assembly Procedure
- Disconnect the instrument panel wiring harness from the instrument panel carrier assembly and position out of the way.
- When replacing the instrument panel carrier assembly, transfer all necessary components.
|
