Instrument Cluster Replacement

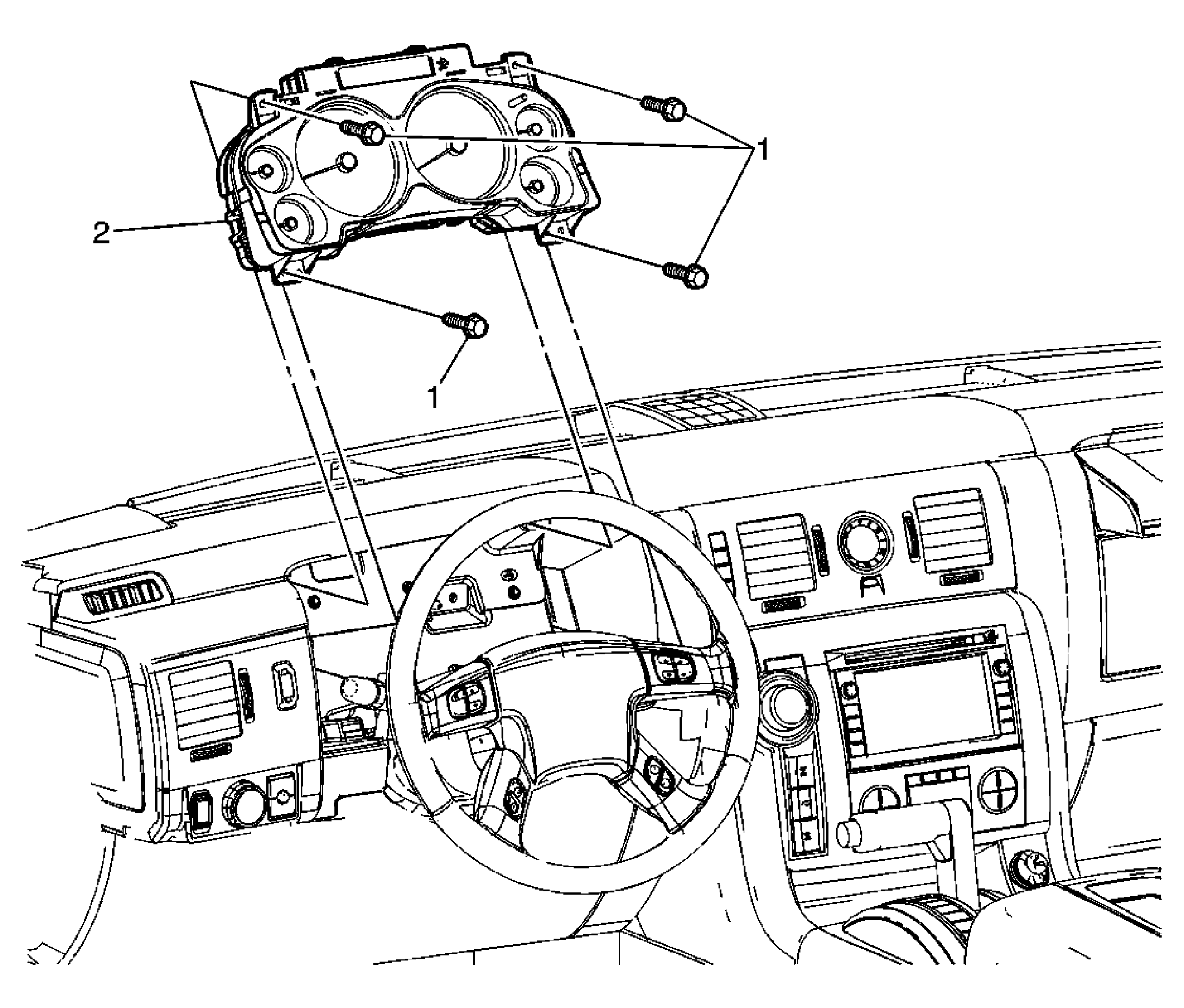

Fig 1: Instrument Cluster
GM1913329Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the instrument panel cluster trim plate. Refer to Instrument Panel Cluster Trim Plate Replacement .
1 Instrument Panel Cluster Assembly Screw (Qty: 4)
NOTE: Refer to Fastener Notice .

Tighten:  2.5 N.m (22 lb in)
2 Instrument Panel Cluster Assembly

Procedure

  1. Disconnect the electrical connection.
  2. When replacing the cluster assembly. Refer to Control Module References for programming and setup.
