Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement

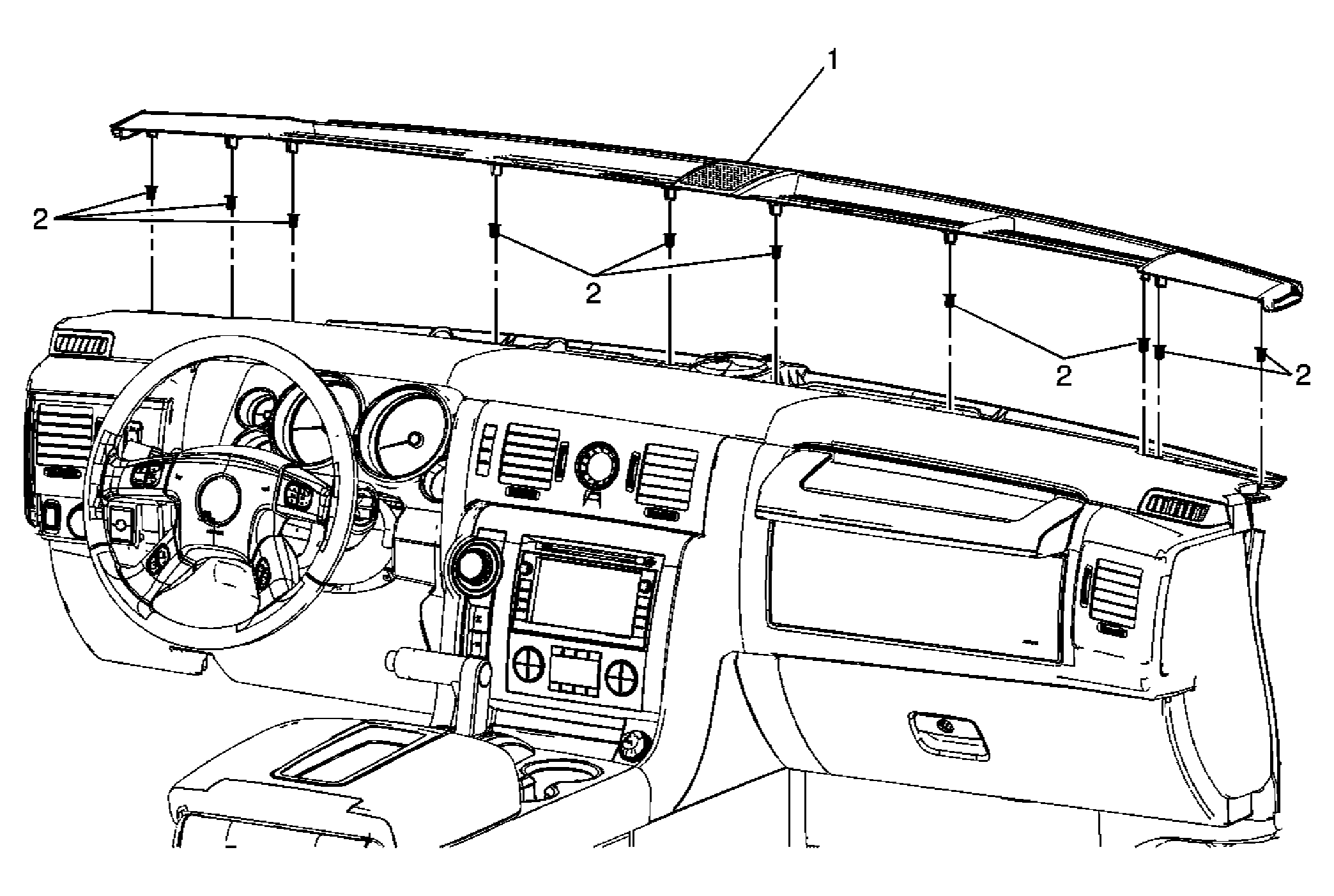

Fig 1: Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the right and left windshield pillar garnish moldings. Refer to Windshield Side Garnish Molding Replacement .
1	Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Assembly Procedure Disconnect the electrical connector. When replacing the instrument panel upper trim panel with windshield defroster nozzle grille assembly, transfer all necessary components.
2	Retainer Clip (Qty: 10)

Callout

Component Name

Preliminary Procedure:
Remove the right and left windshield pillar garnish moldings. Refer to Windshield Side Garnish Molding Replacement .

Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Assembly

Procedure

Disconnect the electrical connector.
When replacing the instrument panel upper trim panel with windshield defroster nozzle grille assembly, transfer all necessary components.

Retainer Clip (Qty: 10)
