Transmission Control Bracket Replacement

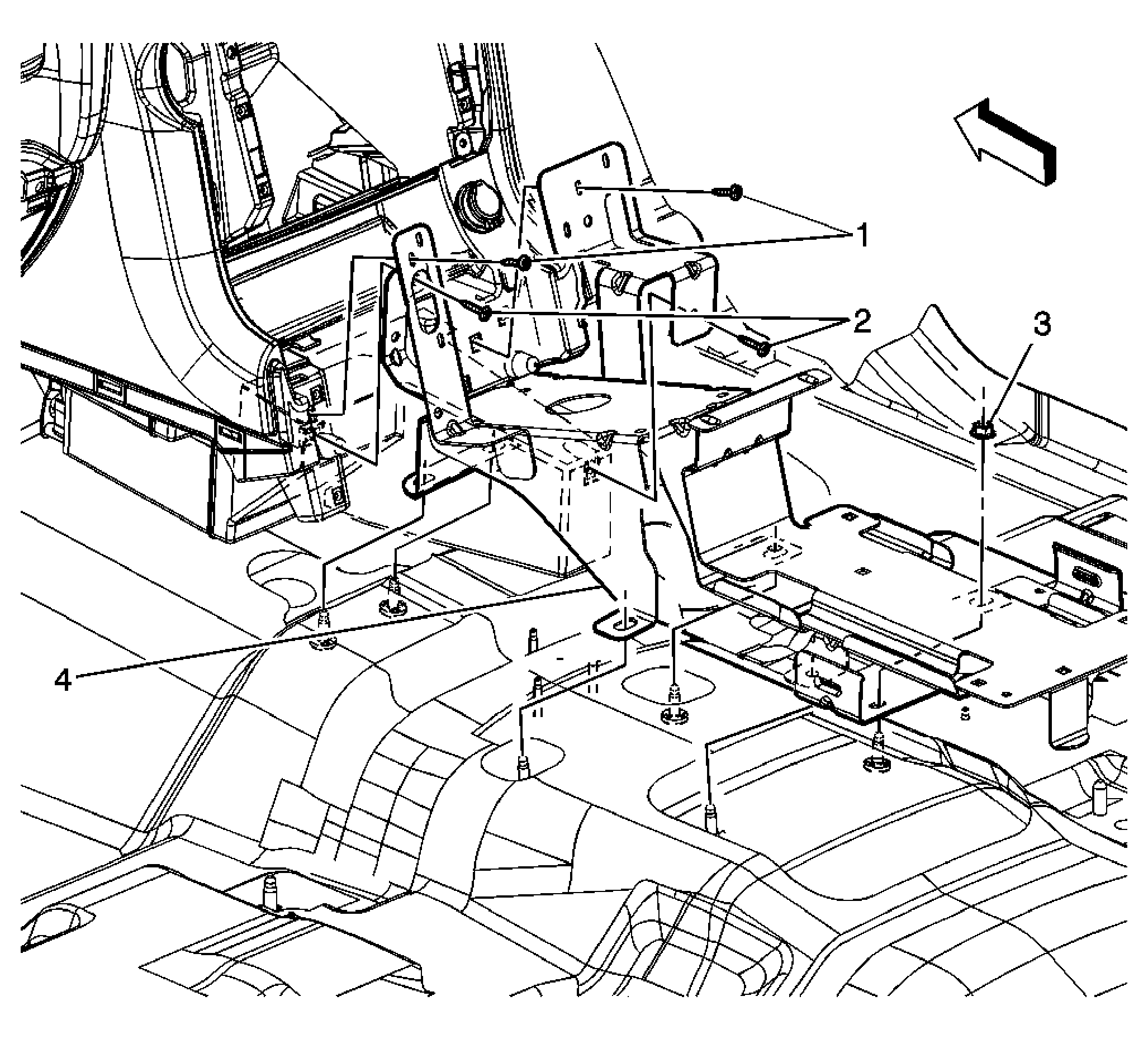

Fig 1: Transmission Control Bracket

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the transmission shift control. Refer to Transmission Control Replacement . Remove the radio speaker amplifier. Refer to Radio Speaker Amplifier Replacement (UQA) or Radio Speaker Amplifier Replacement (UQS) .
1	Transmission Shift Control Bracket Screw (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 2.5 N.m (22 lb in)
2	Transmission Shift Control Bracket Nut (Qty: 6) Tighten: 25 N.m (18 lb ft)
3	Transmission Shift Control Bracket
