Instrument Panel Outer Air Outlet Bezel Replacement - Left Side

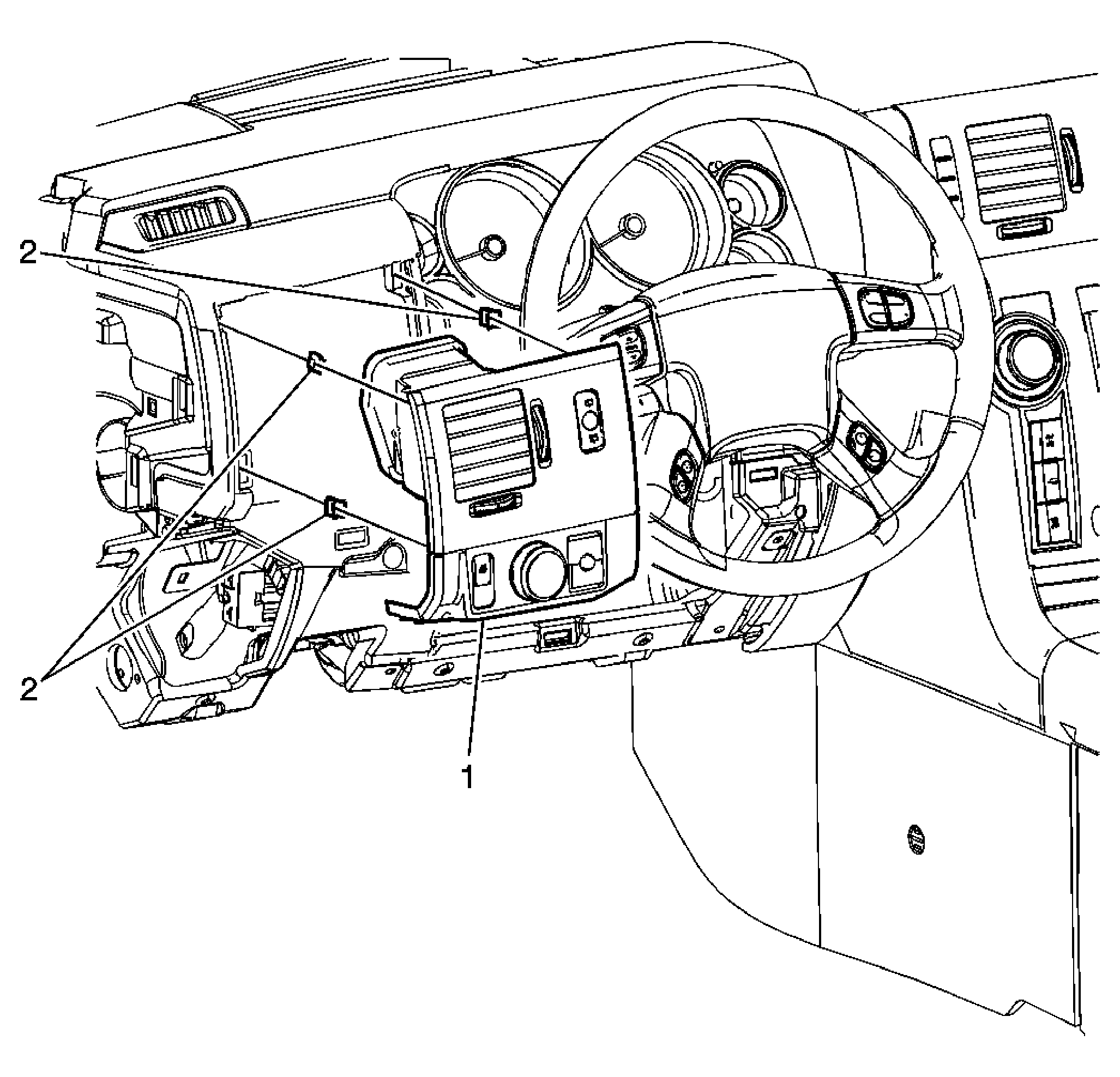

Fig 1: Instrument Panel Outer Air Outlet Bezel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the drivers knee bolster assembly. Refer to Driver Knee Bolster Replacement .
1	Instrument Panel Outer Air Outlet Bezel Assembly Procedure Use a flat-bladed plastic trim tool in order to release the left air outlet bezel assembly from the instrument panel. Disconnect the electrical connectors. When replacing the instrument panel air outlet bezel, transfer all necessary components.
2	Retainer Clip (Qty: 4)

Callout

Component Name

Preliminary Procedure:
Remove the drivers knee bolster assembly. Refer to Driver Knee Bolster Replacement .

Instrument Panel Outer Air Outlet Bezel Assembly

Procedure

Use a flat-bladed plastic trim tool in order to release the left air outlet bezel assembly from the instrument panel.
Disconnect the electrical connectors.
When replacing the instrument panel air outlet bezel, transfer all necessary components.

Retainer Clip (Qty: 4)
