Radio Replacement

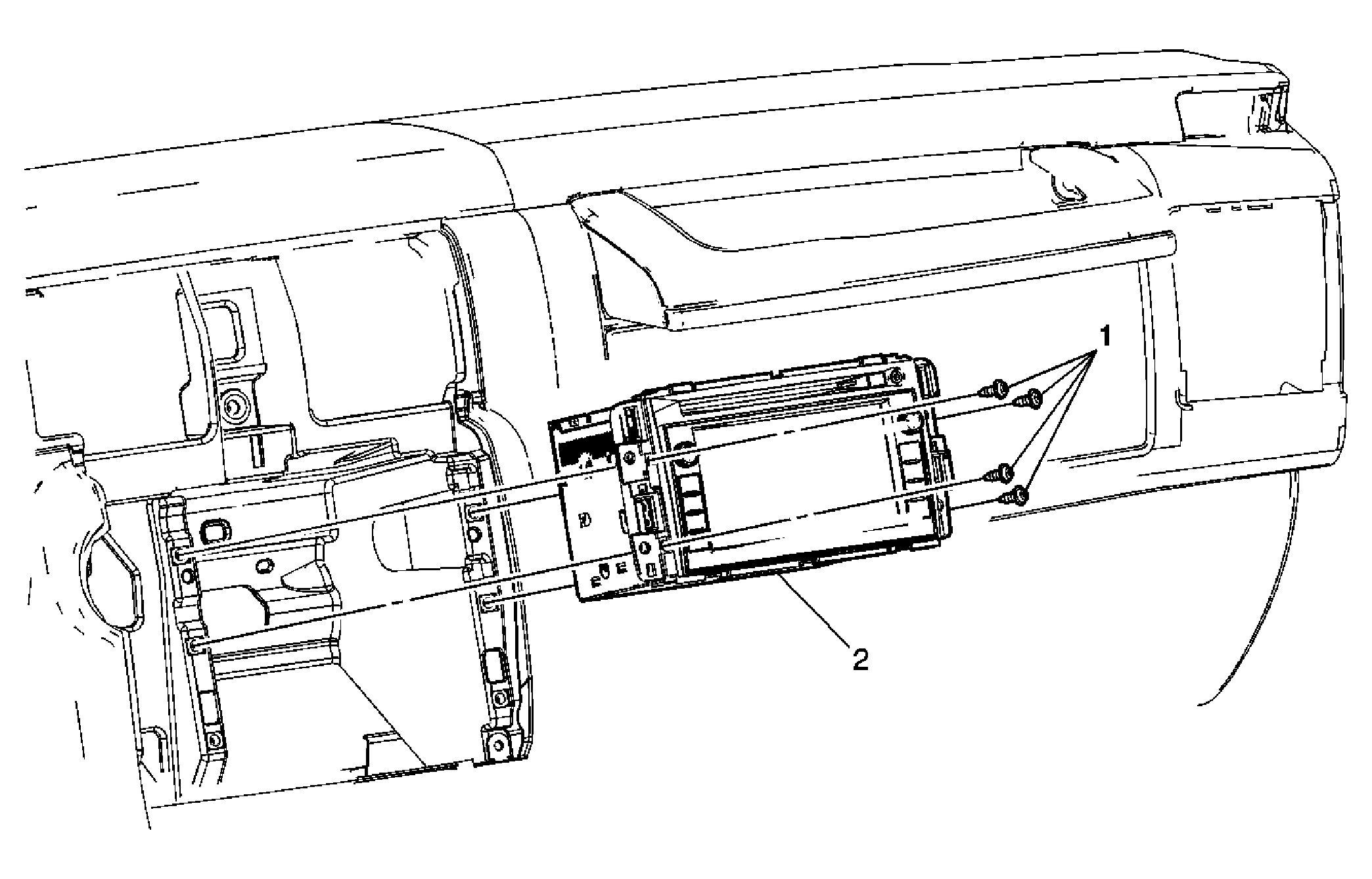

Fig 1: Radio

GM1944645

Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

Preliminary Procedures

Remove the bezel instrument panel (I/P) center air outlet trim plate. Refer to Instrument Panel Center Air Outlet Bezel Replacement .
Remove the control assembly heater air conditioning (A/C). Refer to HVAC Control Module Replacement .

1

Radio Screw (Qty: 4)

NOTE: Refer to Fastener Notice .

Tighten: 2.5 N.m (22 lb in)

2

Radio Assembly

Procedure

Disconnect the electrical connectors.
Disconnect the antenna cable.
Reprogram the radio after replacement. Refer to Control Module References .
