Visual Index - Body

WARNING: This page is about a different variant/trim than selected.
Location Index
Dashboard and Console
Body 1
Body 2
Body 3
Seat

Dashboard and Console

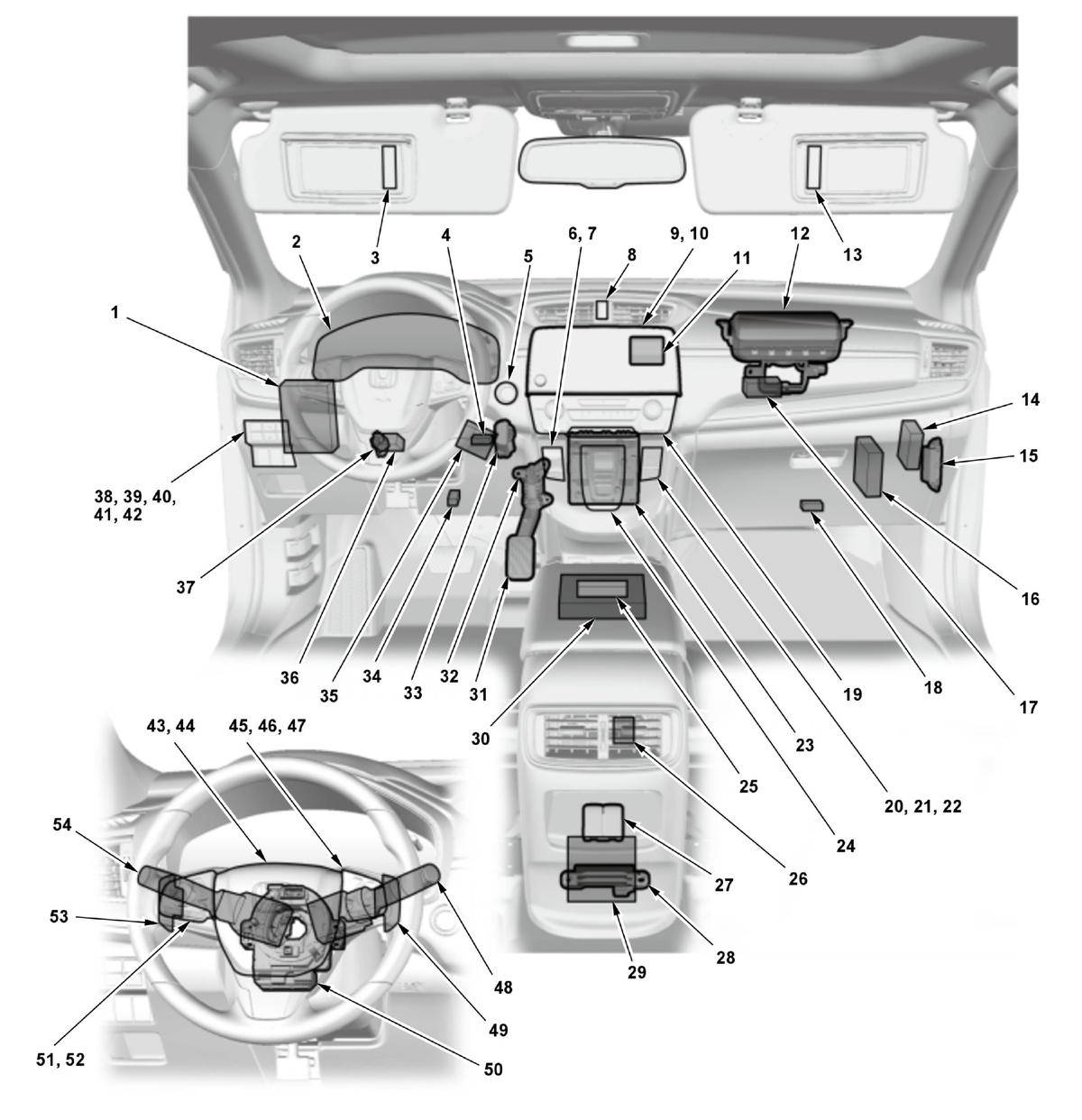

GHH379160Courtesy of HONDA, U.S.A., INC.
No. Component Related System
1 Body control module
2 Gauge control module Gauges
3 Driver's vanity mirror light Interior Lights
4 Humidity/In-car temperature sensor Climate Control System
5 Power switch
6 Automatic brake hold switch
7 Electric parking brake switch
8 Hazard warning switch Turn Signal/Hazard Warning Lights
9 Audio unit/Audio-navigation unit
10 Center display unit
11 GPS antenna
12 Front passenger's airbag SRS
13 Passenger's vanity mirror light Interior Lights
14 Park pawl actuator driver unit
15 ANC/active sound control unit
16 Climate control unit
17 Front seat heater control unit Seat Heaters
18 Front passenger's footwell light Interior Lights
19 Climate control panel
20 Sport mode switch Gear Unit
21 EV switch Electric Powertrain
22 ECON switch Gauges
23 Stereo amplifier Audio System
24 SBW shifter assembly
25 Front interior LF antenna Keyless Access System
26 Console accessory power socket Accessory Power Sockets
27 USB charger unit Audio System
28 Middle interior LF antenna Keyless Access System
29 SRS unit
30 Wireless charger Wireless Charger
31 Accelerator pedal module Fuel and Emissions System
32 Accelerator pedal position (APP) sensor Fuel and Emissions System
33 CAN gateway Fuel and Emissions System
34 Driver's footwell light Interior Lights
35 Acoustic vehicle alerting control unit Acoustic Vehicle Alerting System
36 Heated steering wheel control unit Heated Steering Wheel
37 Brake pedal position switch
38 VSA off switch VSA System
39 Parking and back-up sensor switch Parking and Back-Up Sensor System
40 Driver's power tailgate switch Power Tailgate
41 CMBS OFF switch Collision Mitigation Braking System (CMBS)
42 RDM switch Road Departure Mitigation
43 Horn switch Horns
44 Driver's airbag SRS
45 ACC combination switch
46 LKAS switch Lane Keeping Assist System (LKAS)
47 Heated steering wheel switch Heated Steering Wheel
48 Wiper/washer switch Wipers/Washers
49 Paddle shifter + Gear Unit
50 Cable reel SRS
51 Information switch Gauges
52 Audio remote-HFL switch
53 Paddle shifter - Gear Unit
54 Combination light switch

Body 1

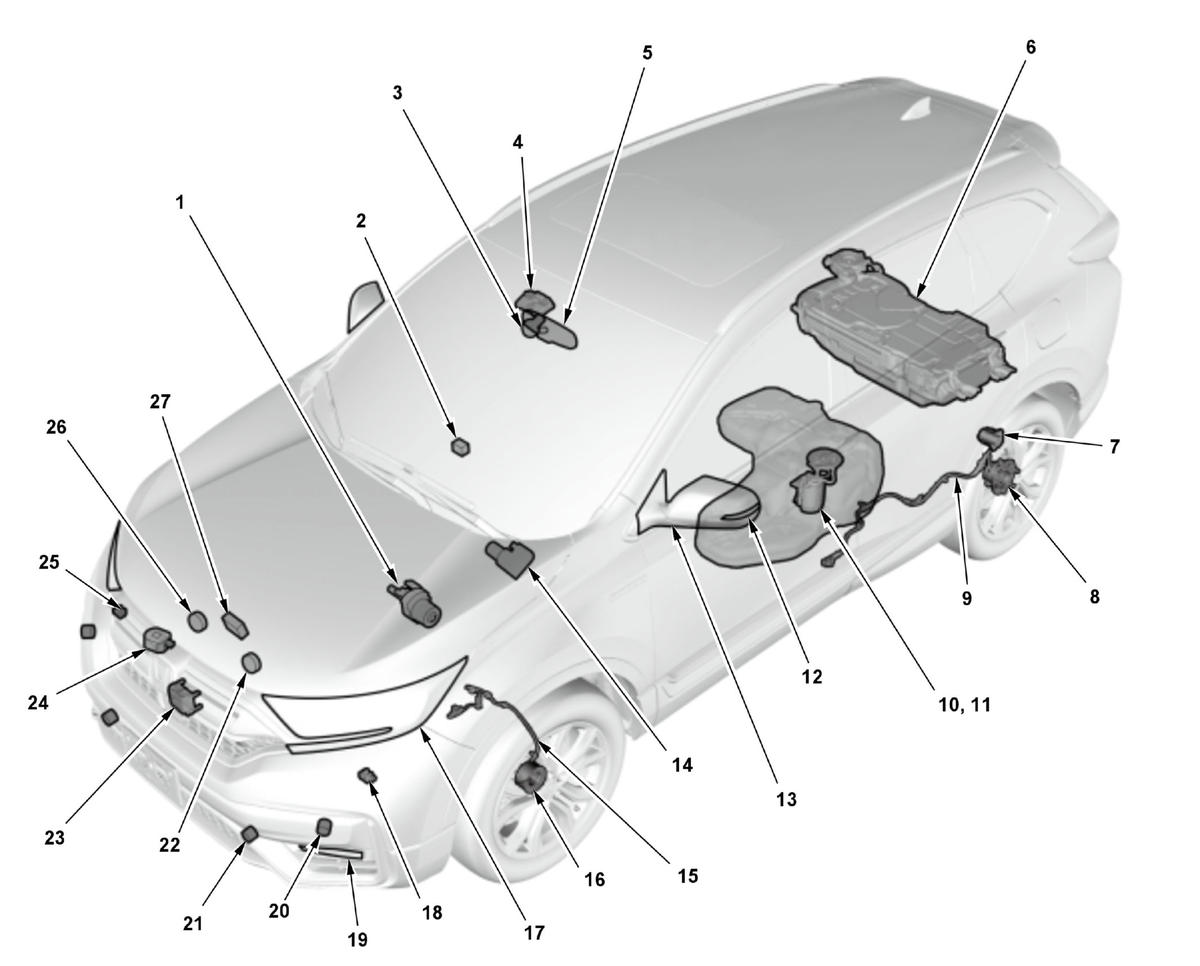

GHH379161Courtesy of HONDA, U.S.A., INC.
No. Component Related System
1 EPS motor/control unit
2
  • Automatic lighting control unit-sensor
  • Sunlight sensor
3 Automatic lighting/rain sensor
4 Multipurpose camera unit
5 Automatic dimming inside mirror Automatic Dimming Mirrors
6 Battery pack
  • Battery condition monitor module
  • High voltage battery module fan
 Electric Powertrain
7 Left-rear electric parking brake actuator Electric Parking Brake System
8 Left-rear magnetic encoder VSA System
9 Left-rear wheel speed sensor
10 Fuel tank unit Fuel and Emissions System
11 Fuel gauge sending unit
12 Side turn signal light (LED)
13 Power mirror/mirror defogger Power Mirrors
14 Windshield wiper control unit/motor Wipers/Washers
15 Left-front wheel speed sensor
16 Left-front magnetic encoder VSA System
17 Headlight
18 Left front impact sensor SRS
19 Front fog light Exterior Lights
20 Front corner sensor Parking and Back-Up Sensor System
21 Front center sensor Parking and Back-Up Sensor System
22 Horn (low)
23 Millimeter wave radar
24 Acoustic vehicle alerting speaker Acoustic Vehicle Alerting System
25 Right front impact sensor SRS
26 Horn (high)
27 Hood latch switch Keyless/Power Door Locks/Security System

Body 2

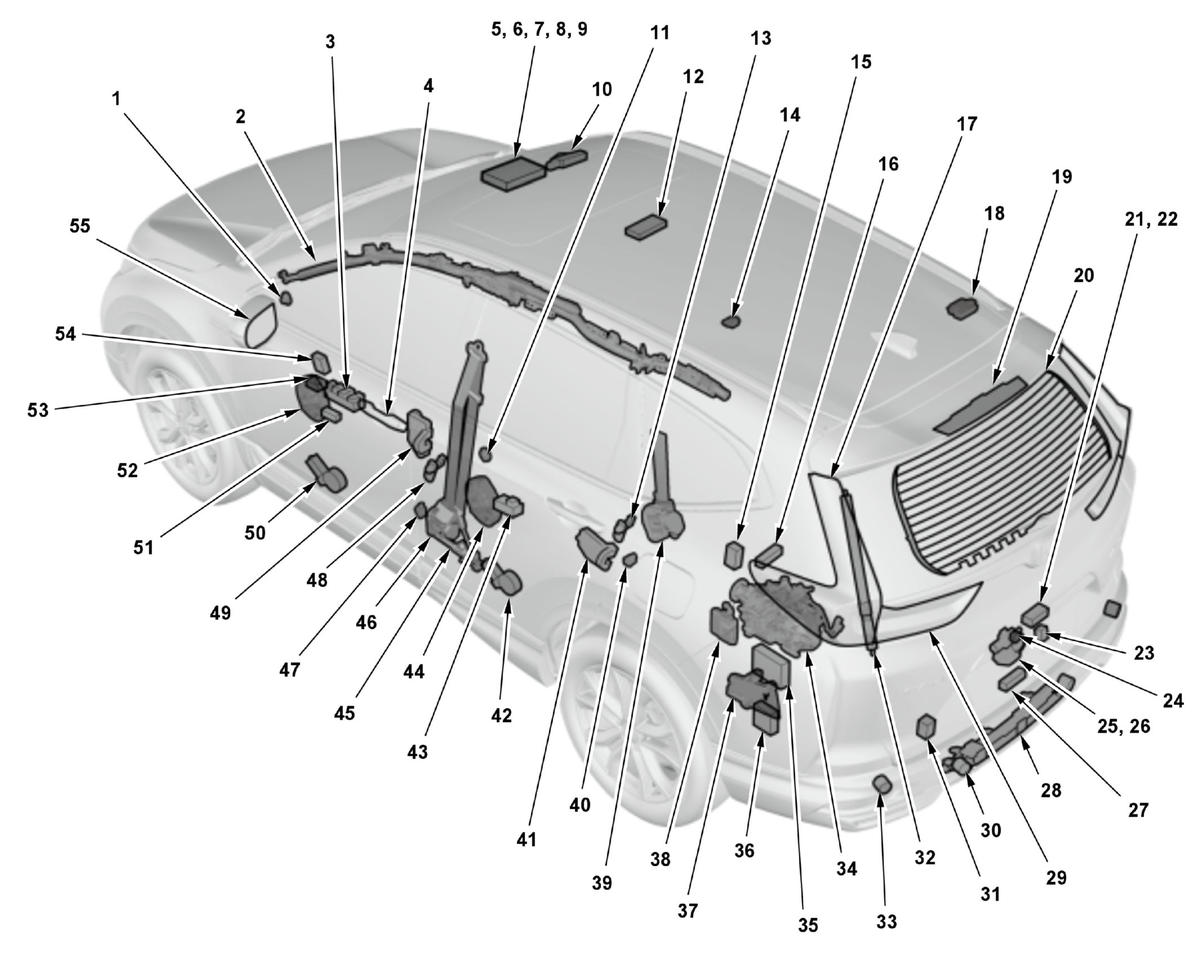

GHH379162Courtesy of HONDA, U.S.A., INC.
No. Component Related System
1 Left front tweeter
2 Left side curtain airbag SRS
3 Power window master switch
4 Driver's door outer handle Keyless Access System
5 Ambient light Interior Lights
6 Front individual map light
7 Interior light switch
8 Front HFL-ANC/active sound control microphone
9 HomeLink module
  • HomeLink unit
  • HomeLink switch
 HomeLink Remote Control System
10 Moonroof motor-control unit Moonroof
11 Left rear tweeter Audio System
12 Ceiling light
13 Left rear door switch
14 Rear ANC/active sound control microphone Audio System
15 Left cargo area light Interior Lights
16 Rear interior LF antenna Keyless Access System
17 Taillight
18 Electrical compass unit Electrical Compass
19 High mount brake light Exterior Lights
20 Rear window defogger Rear Window Defogger
21 License plate light Exterior Lights
22 Tailgate outer handle switch
23 Power tailgate inside switch Power Tailgate
24 Rearview camera
25 Power tailgate closer unit
26 Tailgate latch switch
27 Rear bumper LF antenna Keyless Access System
28 Hands free access power tailgate control unit/sensor
29 Inner taillight Exterior Lights
30 Rear center sensor Parking and Back-Up Sensor System
31 Keyless buzzer
32 Power tailgate drive unit Power Tailgate
33 Rear corner sensor Parking and Back-Up Sensor System
34 Rear differential assembly Rear differential
35 Power tailgate control unit Power Tailgate
36 Parking and back-up sensor control unit Parking and Back-Up Sensor System
37 Left side BSI radar unit
38 AWD control unit Rear differential
39 Left rear seat belt tensioner SRS
40 Left side impact sensor (second) SRS
41 Left rear door latch Keyless/Power Door Locks/Security System
42 Left rear power window motor Power Windows
43 Left rear power window switch Power Windows
44 Left rear door speaker Audio System
45 Left front seat belt outer lap tensioner SRS
46 Left front seat belt tensioner SRS
47 Left side impact sensor (first) SRS
48 Driver's door switch
49 Driver's door latch
50 Driver's power window motor Power Windows
51 Driver's door inner handle light Interior Lights
52 Left front door speaker
53 Power mirror switch Power Mirrors
54 Driving position memory switch Driving Position Memory System (DPMS)
55 Left BSI alert indicator Blind Spot Information (BSI) System

Body 3

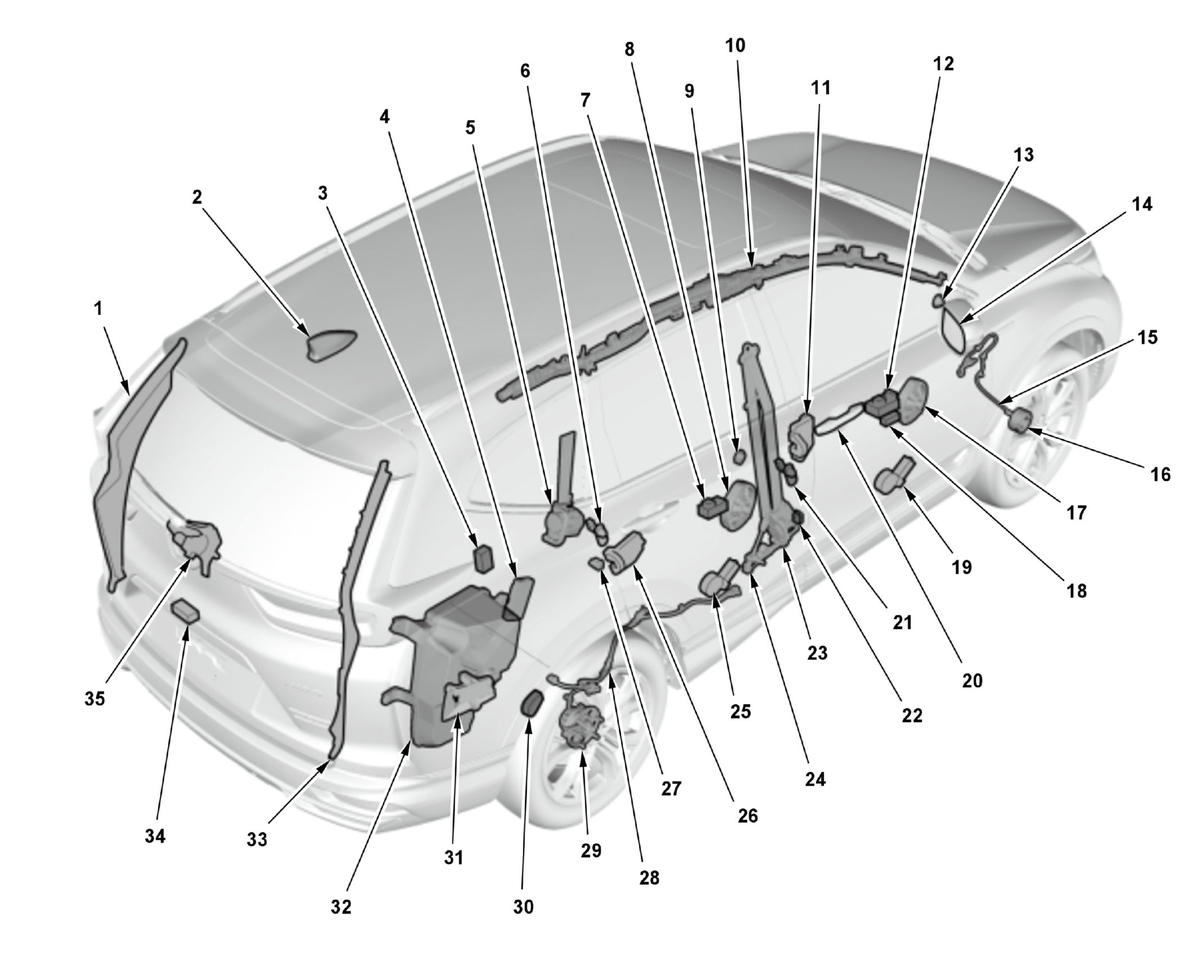

GHH379163Courtesy of HONDA, U.S.A., INC.
No. Component Related System
1 Left tailgate pinch sensor Power Tailgate
2 Roof antenna Audio System
3 Right cargo area light Interior Lights
4 Tuner unit Audio System
5 Right rear seat belt tensioner SRS
6 Right rear door switch
7 Right rear power window switch Power Windows
8 Right rear door speaker Audio System
9 Right rear tweeter Audio System
10 Right side curtain airbag SRS
11 Front passenger's door latch Keyless/Power Door Locks/Security System
12 Front passenger's power window switch
13 Right front tweeter
14 Right BSI alert indicator Blind Spot Information (BSI) System
15 Right-front wheel speed sensor
16 Right-front magnetic encoder VSA System
17 Right front door speaker
18 Front passenger's door inner handle light Interior Lights
19 Front passenger's power window motor Power Windows
20 Front passenger's door outer handle Keyless Access System
21 Front passenger's door switch
22 Right side impact sensor (first) SRS
23 Right front seat belt tensioner SRS
24 Right front seat belt outer lap tensioner SRS
25 Right rear power window motor Power Windows
26 Right rear door latch Keyless/Power Door Locks/Security System
27 Right side impact sensor (second) SRS
28 Right-rear wheel speed sensor
29 Right-rear magnetic encoder VSA System
30 Right-rear electric parking brake actuator Electric Parking Brake System
31 Right side BSI radar unit
32 Subwoofer Audio System
33 Right tailgate pinch sensor Power Tailgate
34 Tailgate lock switch Keyless Access System
35 Rear window wiper motor Wipers/Washers

Seat

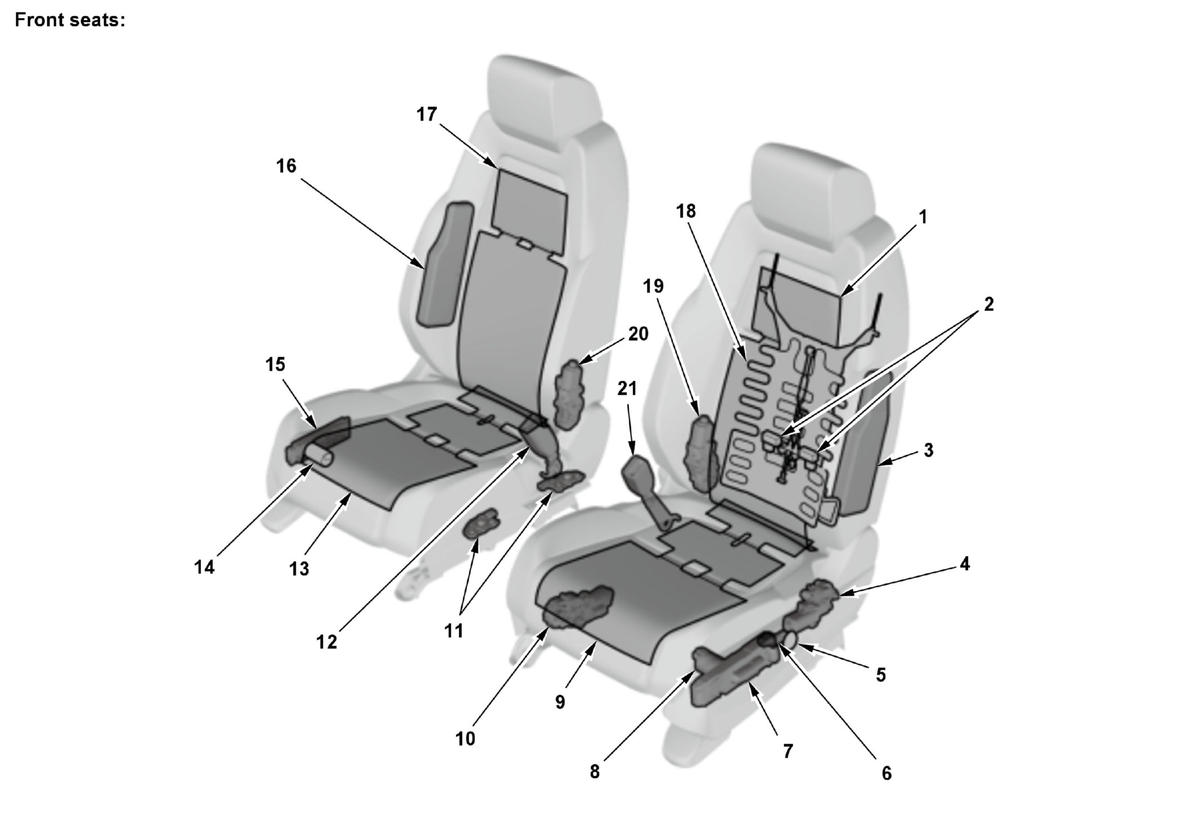

GHH379164Courtesy of HONDA, U.S.A., INC.

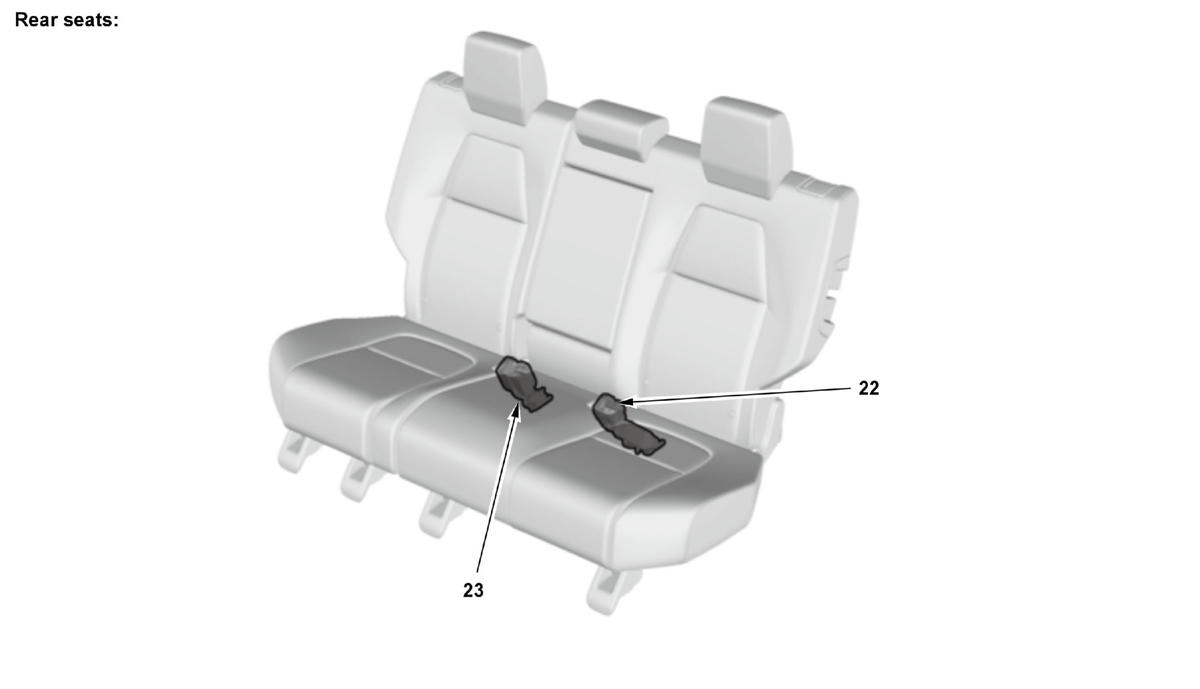

GHH379165Courtesy of HONDA, U.S.A., INC.
No. Component Related System
1 Driver's seat-back heater Seat Heaters
2 Power lumbar support motor Power Lumbar Support
3 Left side airbag SRS
4 Driver's rear up-down motor/position sensor Driving Position Memory System (DPMS)
5 Power lumbar support switch Power Lumbar Support
6 Driver's seat position sensor SRS
7 Power seat control unit/power seat adjustment switch Driving Position Memory System (DPMS)
8 Driver's slide motor/position sensor Driving Position Memory System (DPMS)
9 Driver's seat cushion heater Seat Heaters
10 Driver's front up-down motor/position sensor Driving Position Memory System (DPMS)
11 Front passenger's seat weight sensors
12 Front passenger's seat belt buckle switch
13 Front passenger's seat cushion heater Seat Heaters
14 Front passenger's slide motor Power Seats
15 Front passenger's power seat adjustment switch Power Seats
16 Right side airbag SRS
17 Front passenger's seat-back heater Seat Heaters
18 Power lumbar support Power Lumbar Support
19 Driver's recline motor/position sensor Driving Position Memory System (DPMS)
20 Front passenger's recline motor Power Seats
21 Driver's seat belt buckle switch
22 Left rear seat belt buckle switch SRS
23 Center/right rear seat belt buckle switch SRS
